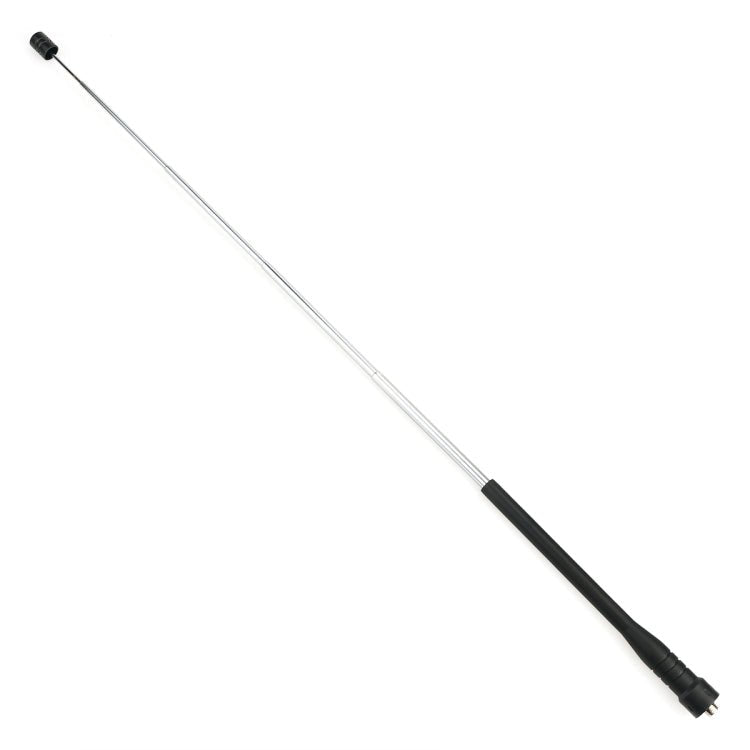

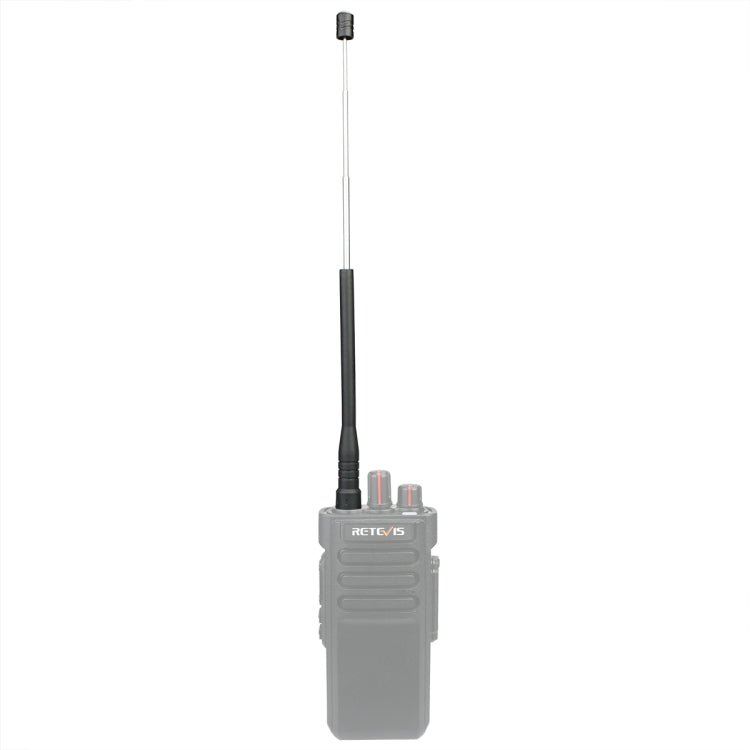

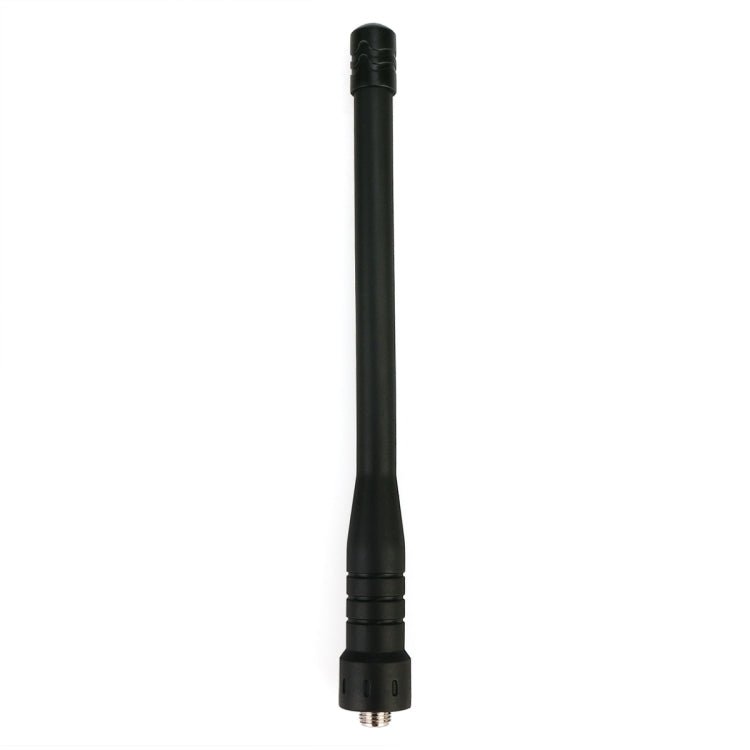

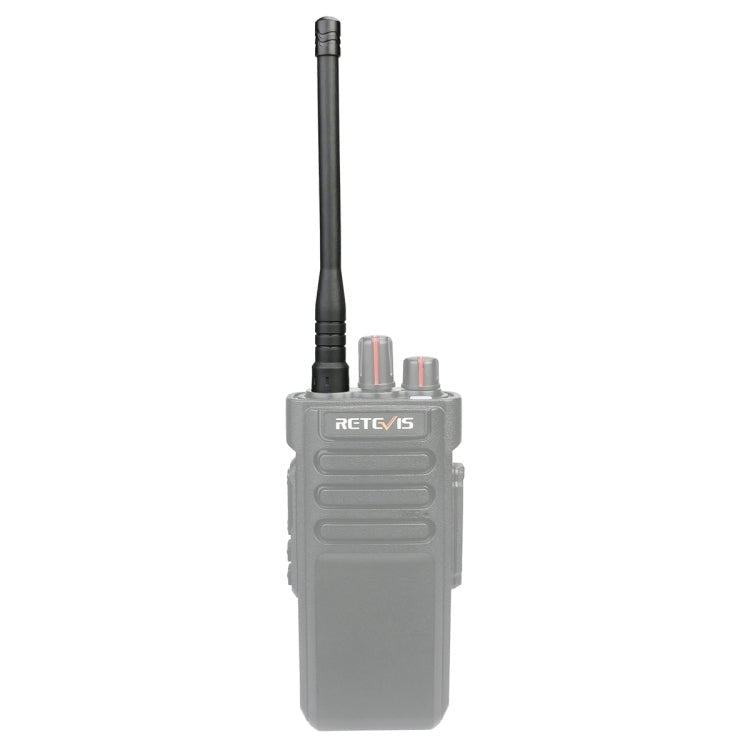

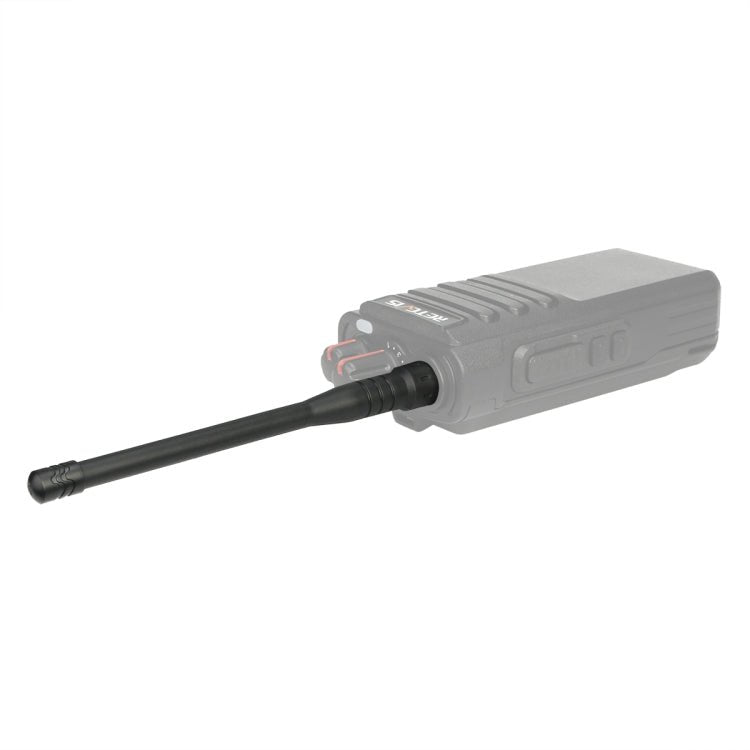

1. Will allow you to get a longer range on handheld radios
2. The antenna has a power of 2.15dBi, and the power is 20 watts
3. Dual frequency band: VHF / UHF
4. Antenna type: SMA-F soft antenna
5. Frequency: 144 / 430Mhz (136-174 + 400-470) MHz
6. Standing wave ratio (VSWR): less than 1.5 downwards
7. Impedance: 50ohm

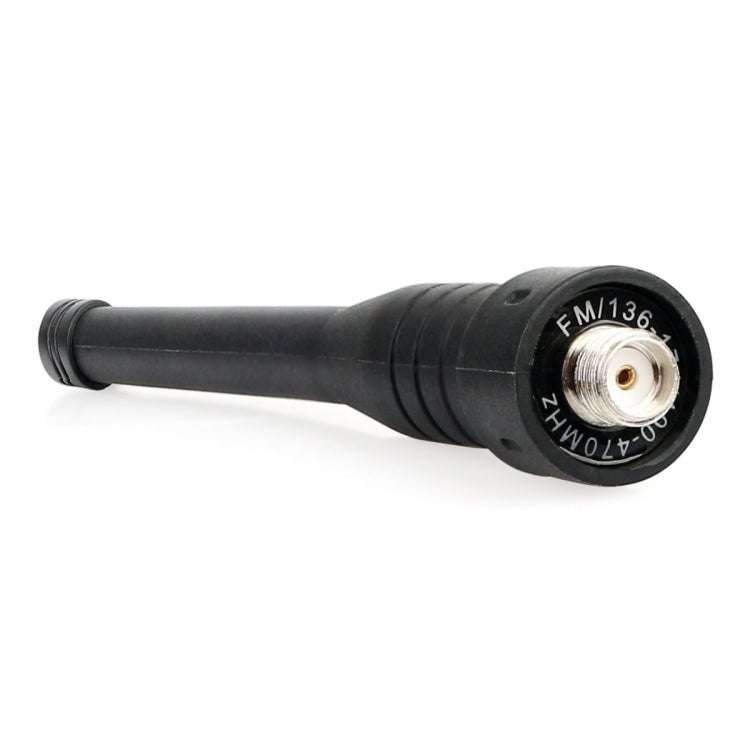

8. Connector type: SMA-F (female)
9. Material: TPEE material and heat shrinkable tubing
10. Length 14-47 cm, weight 19.7 grams
11. Suitable for Kenwood TK-360, TK-370, TK-370G, TK-372, TK-372G, TK-3100, TK-3140, TK-3160, TK-3170, TK-3180, TK-3200, TK -3202,TK-3207; suitable for RETEVIS H-777, RT-B6, 888s Plus, RT5R, RT29; suitable for BAOFENG BF-666s, BF-777s, BF-888s, UV5R, UV5RA, UV-5RB, 5RC; Suitable for HYT TC-268, TC-268S, TC-368, TC-368S, TC-370S, TC-500-TC-500S; suitable for LINTON LT-3288, LT-6288, LT-3188, LT-2188, LT-3260, LT-3268, LT-6188; suitable for PUXING PX-777, PX-777Plus, PX-666, PX-888, PX-888K, etc.
Specification:
| Package Weight |
| One Package Weight |
0.03kgs / 0.06lb |
| One Package Size |
15cm * 4cm * 1cm / 5.91inch * 1.57inch * 0.39inch |
| Carton Weight |
11.50kgs / 25.35lb |
| Carton Size |
30cm * 40cm * 20cm / 11.81inch * 15.75inch * 7.87inch |
| Loading Container |
20GP: 1111 cartons * 400 pcs = 444400 pcs
40HQ: 2579 cartons * 400 pcs = 1031600 pcs
|
|
