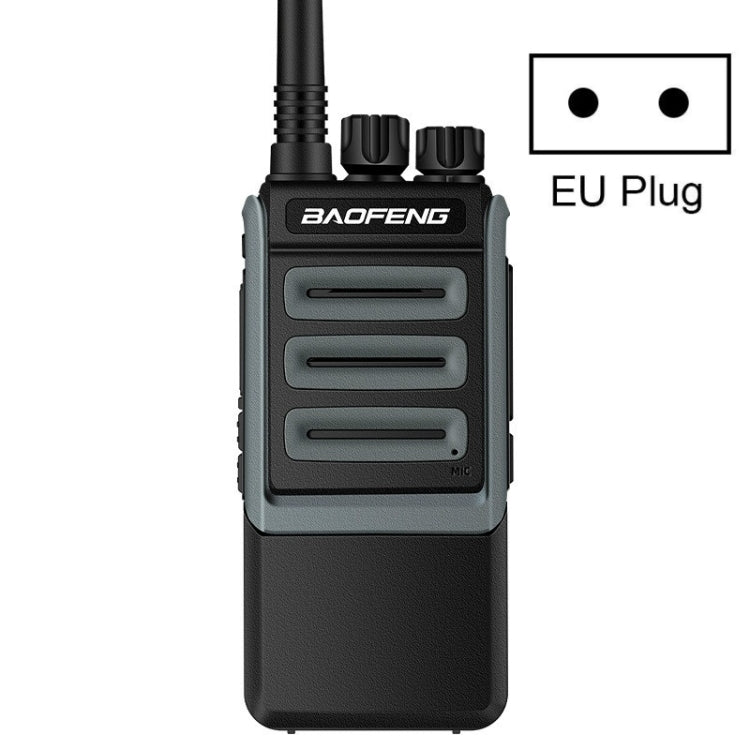

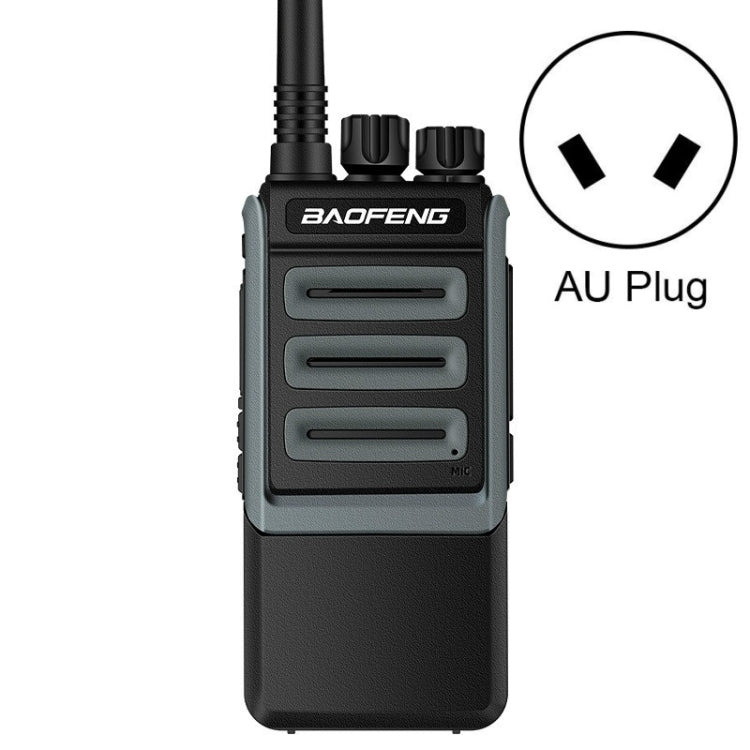

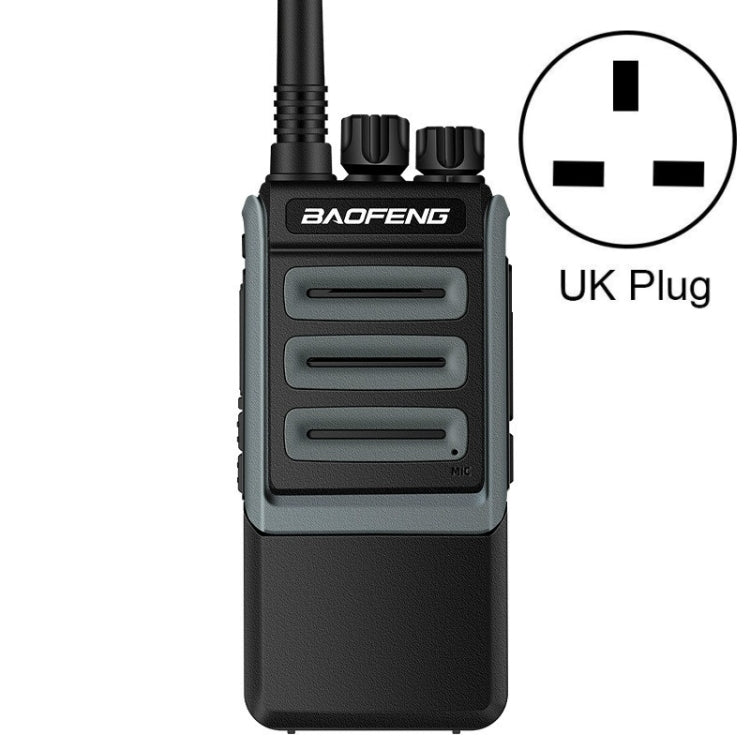

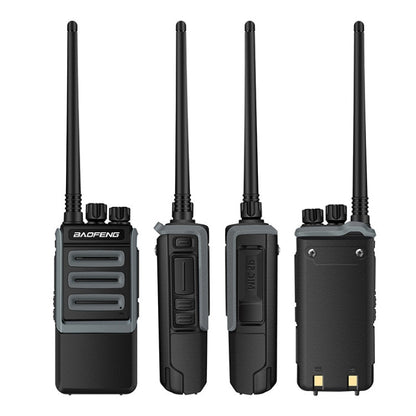

Baofeng BF-1901 High-power Radio Outdoor Handheld Mini Communication Equipment Walkie-talkie, AU Plug, EU Plug, US Plug, UK Plug

Features
1. Digital tuning FM Radio

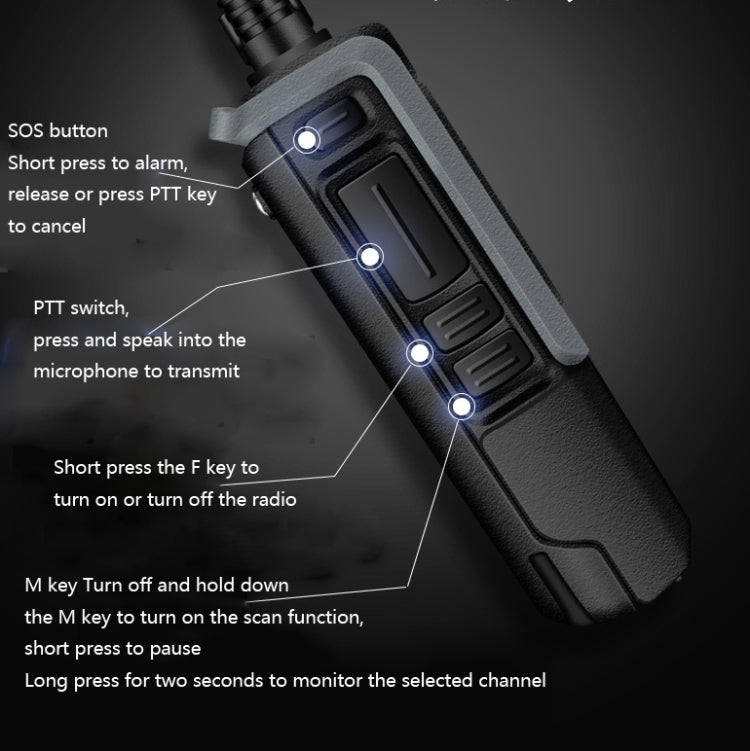

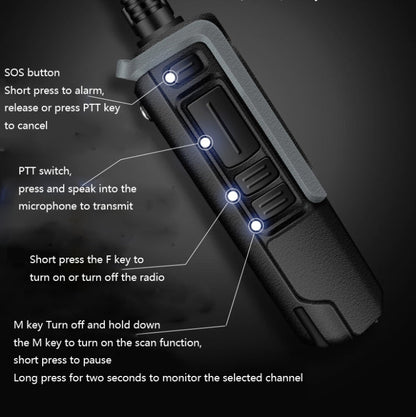

2. SOS emergency alert function
3. 50 sets of standard CTCSS, 105 sets of standard DCS
4. Voltage warning, three scanning methods (time, carrier, search)

General parameters
1. Frequency range: UHF400-470MHz
2. Working voltage: DC7.4V (rechargeable lithium battery)
3. Antenna impedance: 50Ω
4. Storage channels: 16
5. Frequency stability: ±2.5ppm
6. Working mode: same frequency simplex or different frequency simplex
7. Working temperature: -20℃~+60℃
8. Dimensions: 62.5x130x40mm
9. Weight: about 150 grams

Launch part

1. Output power: 10W
2. Adjacent channel power: ≦-65dB/≦-60dB
3. Emission current: ≦1.5A
4. Maximum frequency deviation: ≦5KHz/≦2.5KHz
5. QT/DQT frequency deviation: 0.7±0.1KHz/0.4±0.1KHz
6. Stray power: ≦7.5uW
7. Modulation sensitivity: 8-12mV
8. S/N ratio: ≧-45dB/≧-40dB


Receiving part
1. Receiving sensitivity: ≦0.25uV (12dB SINAD)
2. Clutter suppression: >65dB
3. Maximum audio power: 1W@10%
4. Audio distortion: <10%
5. Intermodulation anti-interference: ≧65dB/≧60dB
6. S/N ratio: ≧-45dB/≧-40dB
7. Receiving current: ≦380mA
8. Adjacent channel power: ≧-65dB/≧-65dB
