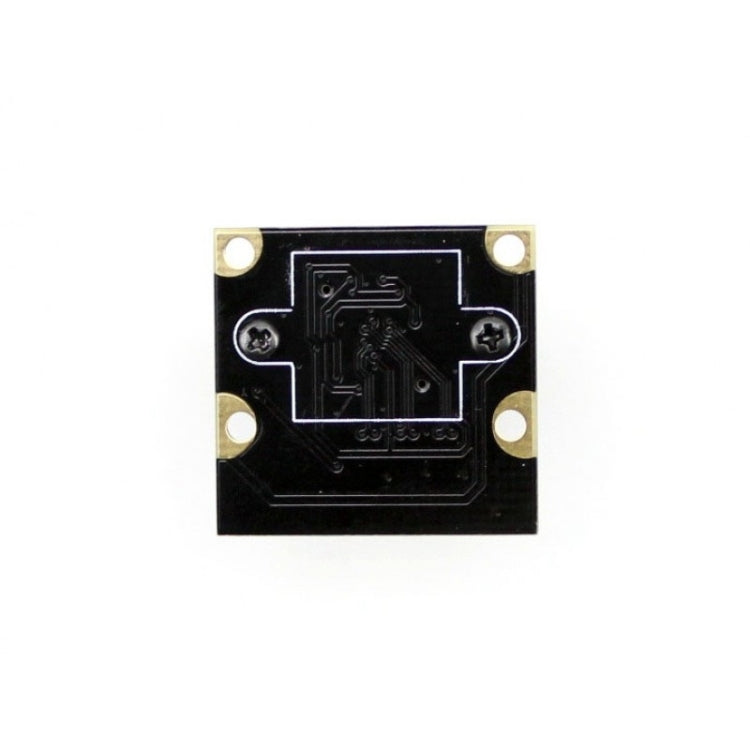

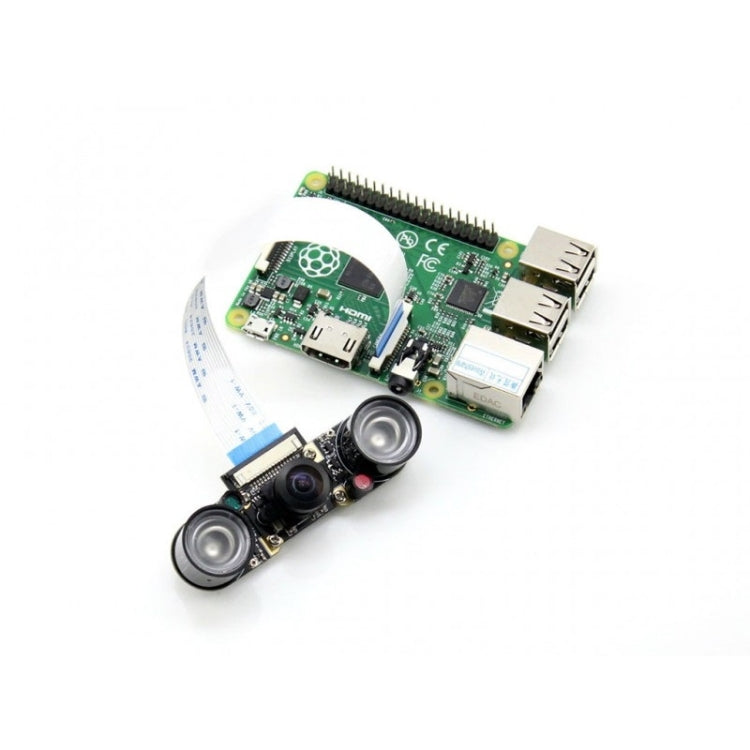

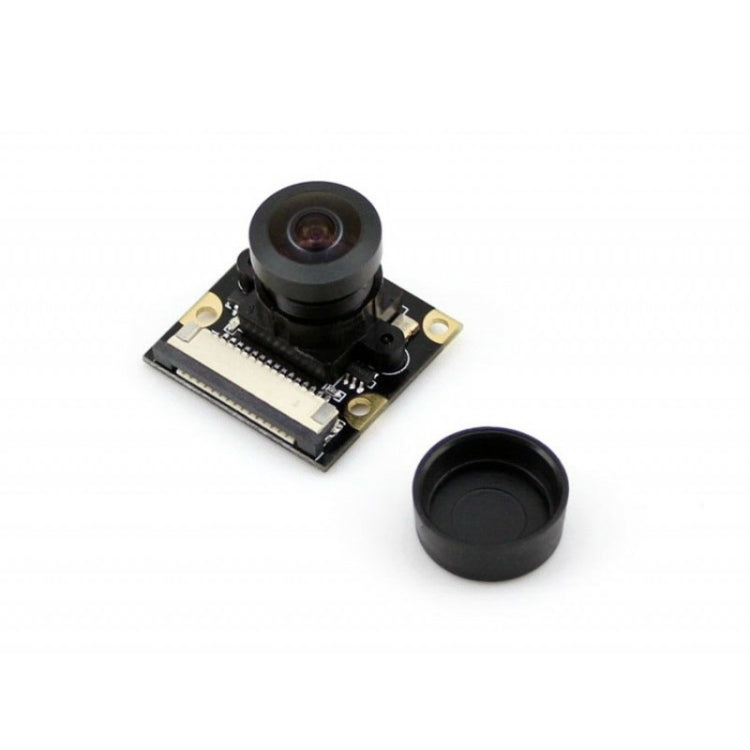

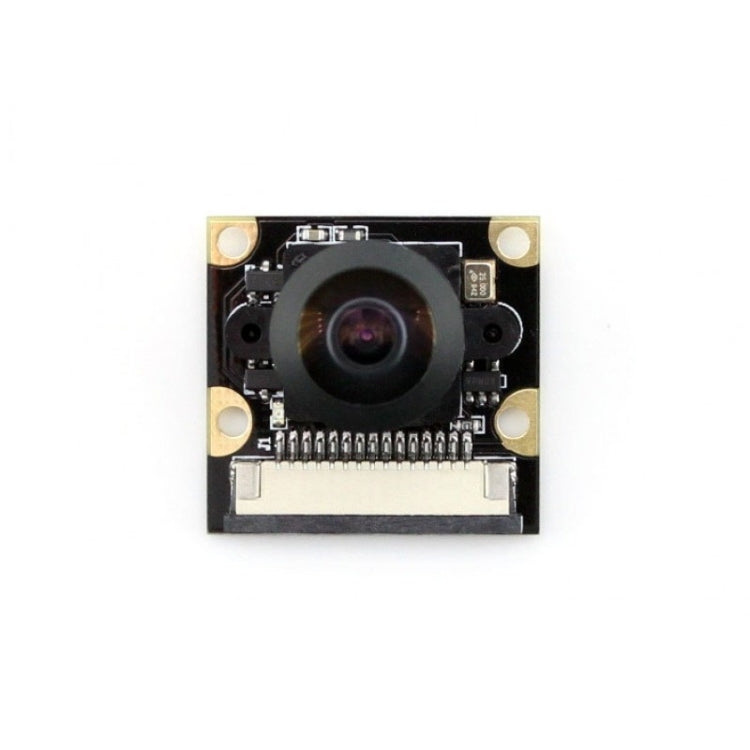

Waveshare RPi Camera (H) Module, Fisheye Lens, Supports Night Vision, (H) Fisheye Lens Module

Waveshare RPi Camera (H) Module, Fisheye Lens, Supports Night Vision, (H) Fisheye Lens Module

Normaler Preis $36.65 USD
Normaler Preis Verkaufspreis $36.65 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
Option
Features
1. Raspberry Pi Camera, supports all revisions of the Pi
2. Fisheye Lens, offers wider field of view
3. Comes with infrared LED, supports night vision
4. 5 megapixel OV5647 sensor
5. Adjustable focus distance
6. Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.35
- Focal Length : 3.15mm
- Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree)
- Sensor best resolution : 1080p
7. 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
8. Dimension: 25mm x 24mm

Package Contents
1. RPi Camera (H) x1
2. Infrared LED Board (B) x2
3. 15-pin FFC (opposite sides contact) x1

Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Specification:
Package Weight
One Package Weight 0.07kgs / 0.14lb
One Package Size 6cm * 5cm * 2cm / 2.36inch * 1.97inch * 0.79inch
Qty per Carton 1600
Carton Weight 15.00kgs / 33.07lb
Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
Loading Container 20GP: 277 cartons * 1600 pcs = 443200 pcs
40HQ: 644 cartons * 1600 pcs = 1030400 pcs
