1. Measuring range: 0~1500um

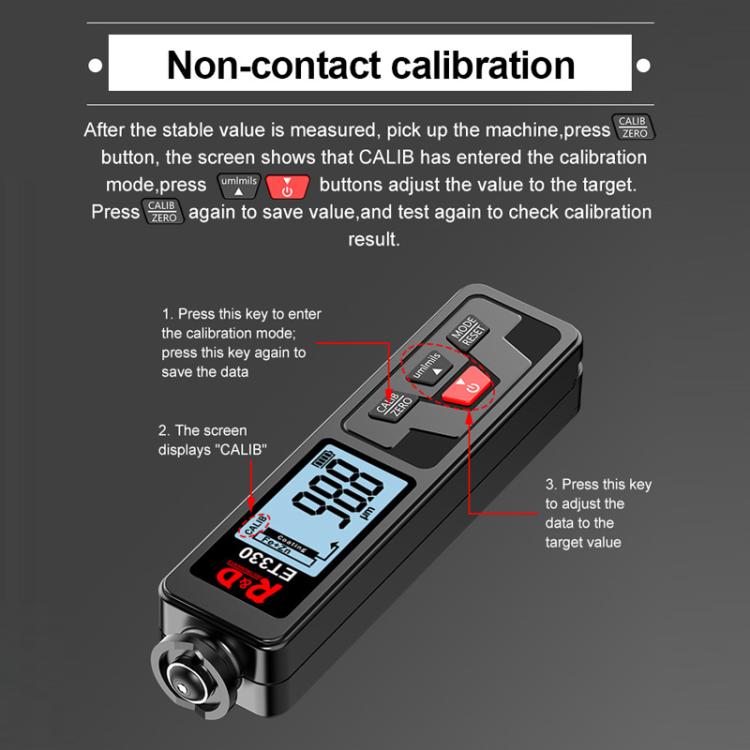

2. Calibration: zero point calibration; multi-point calibration
3. Convex curvature radius: 1.5mm (MIN)
4. Concave curvature radius: 25mm (MIN)
5. Measuring area diameter: 6mm (MIN)
6. Substrate thickness: 0.5mm; 0.3mm (MIN)

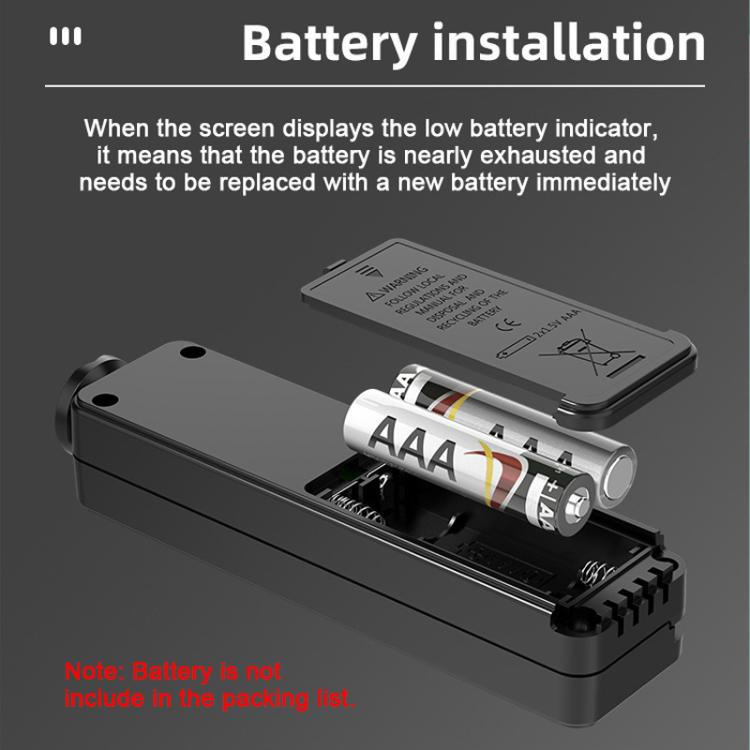

7. Battery: 2 x AAA (not included)

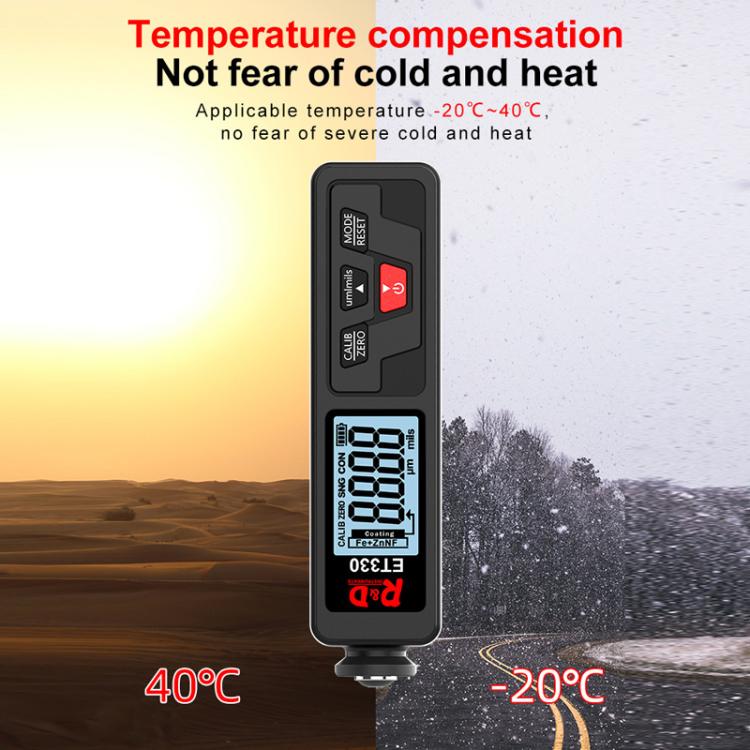

8. Applicable to hot and cold, temperature -20~40 degrees Celsius, not afraid of extreme cold and heat

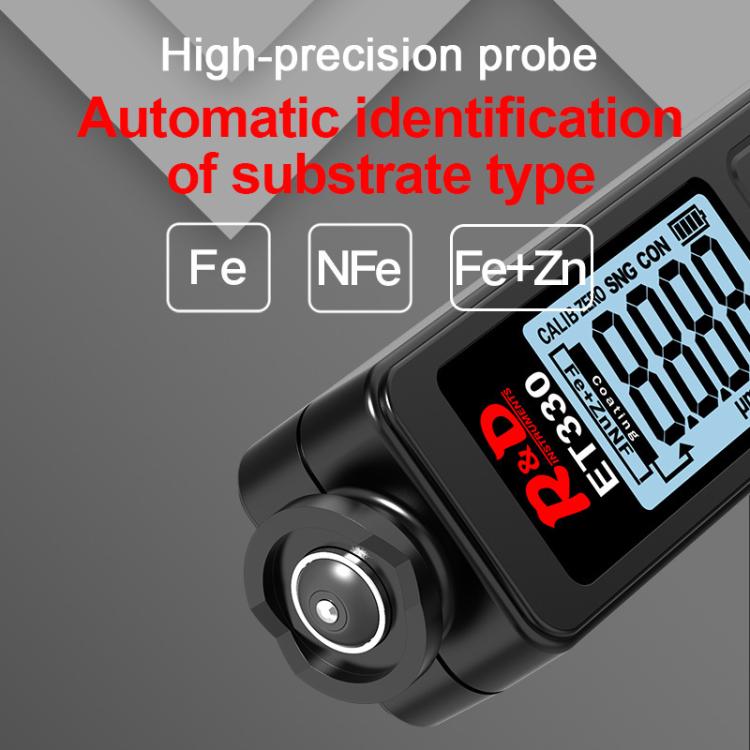

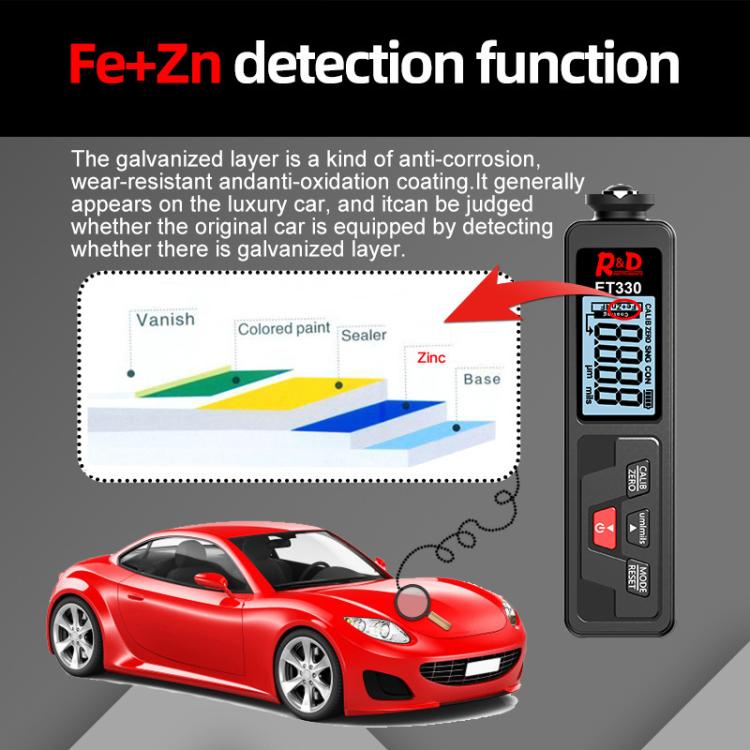

9. High-precision probe, can automatically identify substrate type

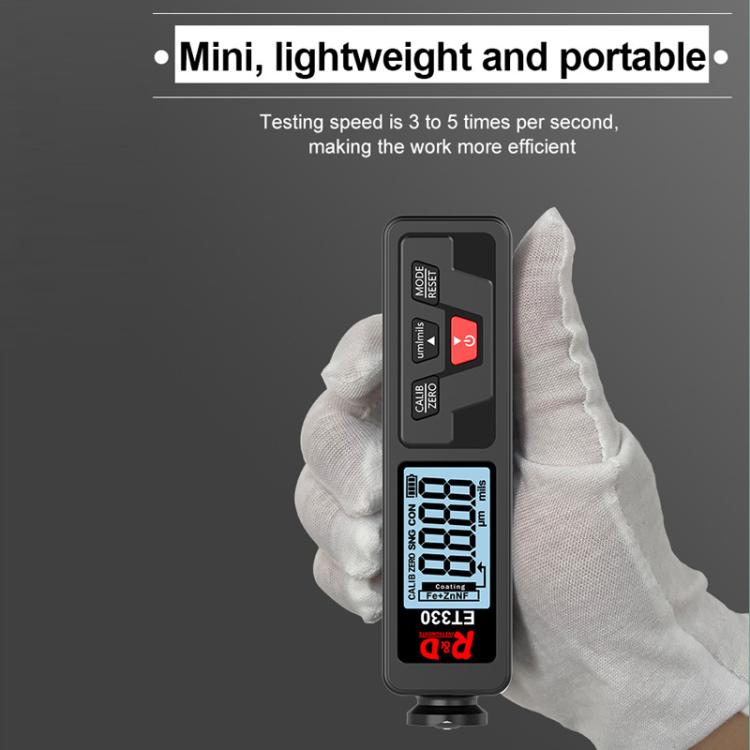

10. Small, light and portable test speed 3~5 times per second, higher work efficiency

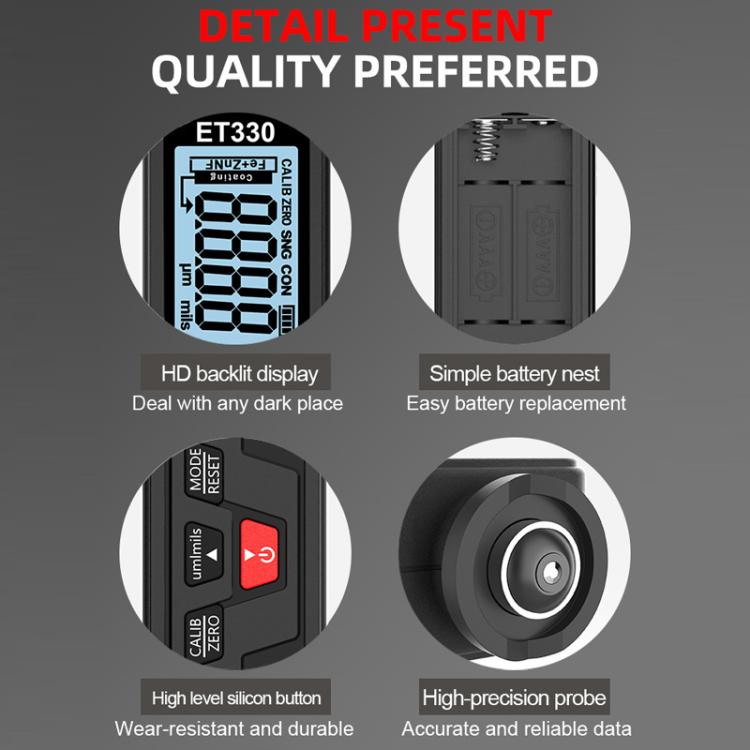

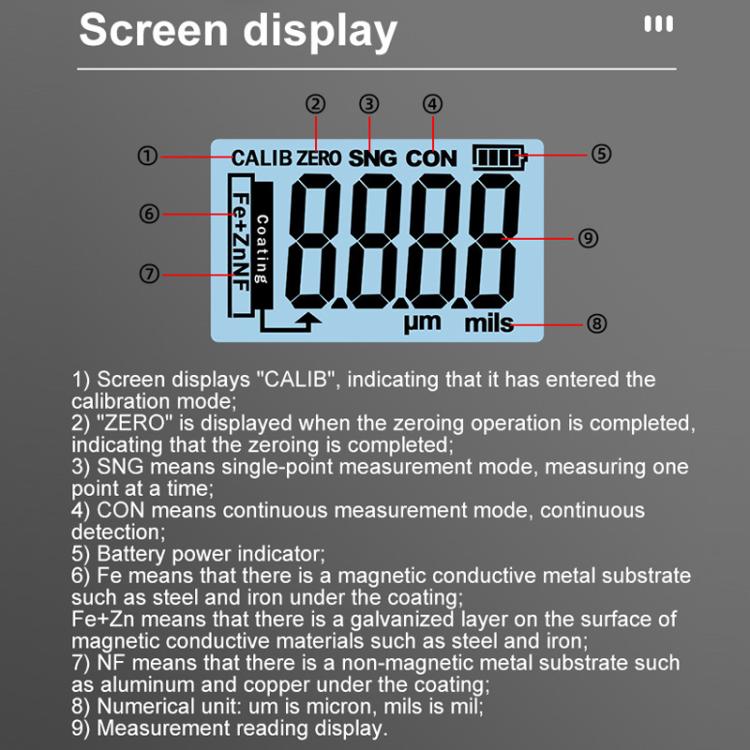

11. High-definition backlit display, suitable for any dark place
12. High-grade silicon buttons, wear-resistant and durable
13. Size: 124x31x23mm
14. Weight: 60g
Specification:
| Package Weight |
| One Package Weight |
0.19kgs / 0.43lb |
| One Package Size |
18cm * 10cm * 6cm / 7.09inch * 3.94inch * 2.36inch |
| Carton Weight |
6.80kgs / 14.99lb |
| Carton Size |
38cm * 32cm * 32cm / 14.96inch * 12.6inch * 12.6inch |
| Loading Container |
20GP: 685 cartons * 30 pcs = 20550 pcs
40HQ: 1590 cartons * 30 pcs = 47700 pcs
|
|
