1. Brand Name: RZ
2. Range: 0~1300um, 0~51.2mil
3. Resolution: 0um~999um (1um)
4. Units:Um, mil; Accuracy: +/- (3% of readings+2um)
5. Minimum measuring size: Diameter 6mm (236mils)
6. Calibration: One to four point calibration, zero calibration
7. Alarm: User can set the high/low alarm, and alarm icon displayed on LCD when over the limit
8. Power supply: 1.5V AAA batteries * 2 (not included)

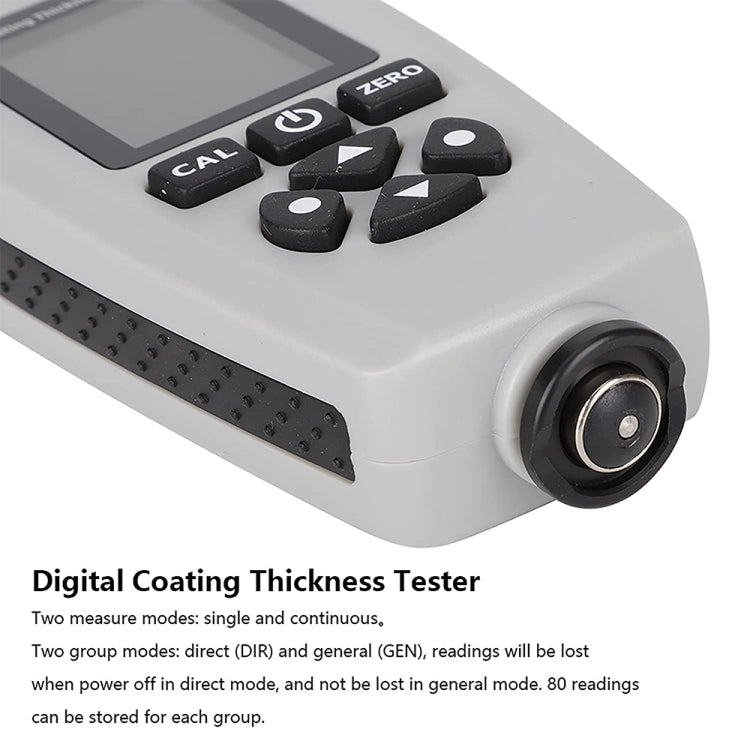

9. Measuring mode: Single / continuous
10. LCD back light: Yes
11. OperationEnvironment: Temperature:0~40 degree C (32~104egree F)
12. Resolution: 0um~999um (1um), 1000um~1300um (0.01mm); 0mils~39.39mils (0.01mils), 39.4mils~51.2mils (0.1mils)

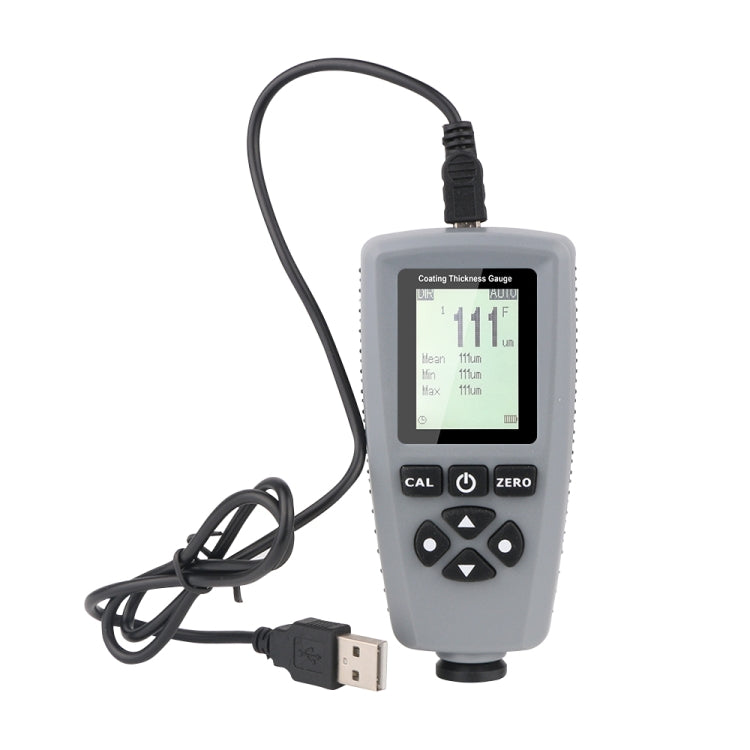

13. Computerinterface: Download data via USB interface

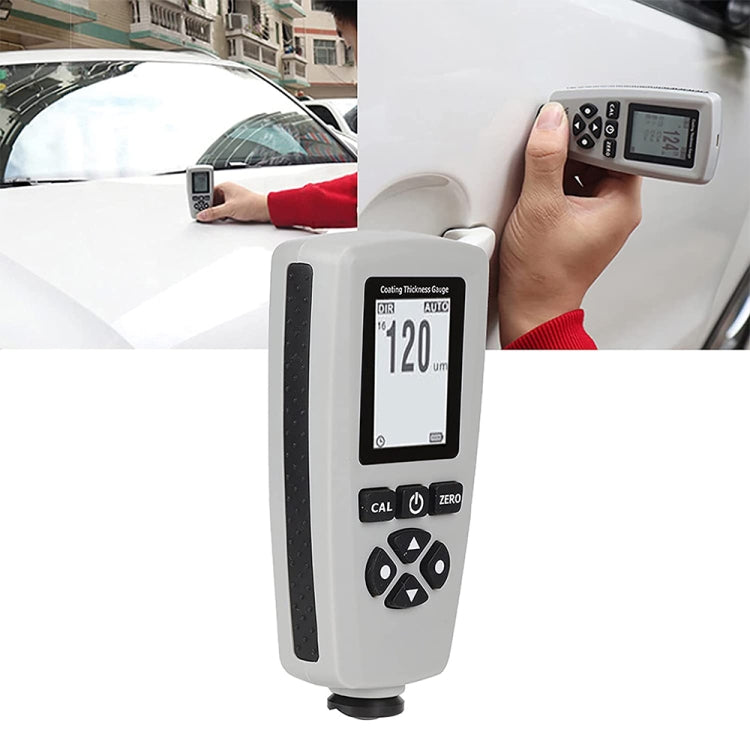

14. Application: Non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals
Specification:
| Package Weight |
| One Package Weight |
0.54kgs / 1.20lb |
| One Package Size |
25cm * 15cm * 6cm / 9.84inch * 5.91inch * 2.36inch |
| Carton Weight |
11.60kgs / 25.57lb |
| Carton Size |
50cm * 32cm * 32cm / 19.69inch * 12.6inch * 12.6inch |
| Loading Container |
20GP: 520 cartons * 20 pcs = 10400 pcs
40HQ: 1209 cartons * 20 pcs = 24180 pcs
|
|
