Specification for TBK 958M

Feature:

Model number: LY/TBK-958M

Brand: LY/TBK

Product Net weight: 6KG

Packaged Gross weight: 12KG

Product size:36*23*42CM

Package size:53.5*46.5*23.5CM

Working Voltage:110V-220V

Power:500W

Laser power(Watts):6W

Laser wave length:1064nm

Laser marking Precision: ≤0.001mm

Repeat Laser

marking Precision:≤0.001mm

Laser marking speed:≤10000mm/s

Laser marking depth: 0.015-0.5mm

Max marking size:175mmx175mm

Marked line width:0.05-0.01mm

Scope of application: Suitable for Mobile phones,Jewelry,Handicrafts
and other Industries

Kit A: LY TBK 958M Laser machine x 1

Kit B: LY TBK 958M Laser machine x 1, Centre Align Fixture x 1, Pressure Mold x 1

Kit C: LY TBK 958M Laser machine x 1, Centre Align Fixture x 1, Pressure Mold x 1, Mini Smoke Absorber x 1, 30cc Glue dispenser pistol x 1

Kit D: LY TBK 958M Laser machine x 1, Centre Align Fixture x 1, Pressure Mold x 1, Smoke Absorber With Suction Box x 1, 30cc Glue dispenser pistol x 1

Kit E: LY TBK 958M Laser machine x 1, Centre Align Fixture x 1, Pressure Mold x 1, Smoke Absorber With Stand Pipe x 1, 30cc Glue dispenser pistol x 1

Description

Machine is newest model,it can use for Mobile phone Back Glass Remover,Laser engraving and marking.

built-in computer and Precise drawing .

Selected high speed galvanometer. Sensor autofocus.

One-button start-up and operation simple.

(RE: This machine need to connect with external computer to use together.)

How to use it.

1. Plug in the power cord and turn on the power switch;

2. Remove the lens cap of the high-speed galvo mirror;

3. Turn on the computer switch (Computer key);

4. Call up the corresponding drawings;

5. Place the mobile phone along the fixed fixture;

6. Press the Focus button to automatically adjust the focal length;

7. Turn on the red light indicator, aim at the red light, and adjust the parameters;

8. Start marking button to start marking;

9. Remove the mobile phone after the marking is finished, and you can disassemble the machine.

Pubblica le informazioni sulle tue esigenze

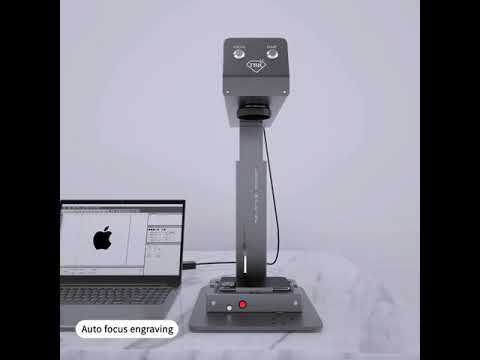

TBK 958M Laser Separator Machine Auto Focus Cutting Engraving Marking Printer Machine, Mobile Phone Separating Machine

Marca: Oriwhiz Replace Parts

Disponibilità:50 i pezzi rimasti (scorte limitate) verranno spediti entro 24 ore

Codice prodotto: 2100405

Tempi di consegna: Trova il tempo di ricezione stimato nel carrello

$1,539.40 1,539.40
