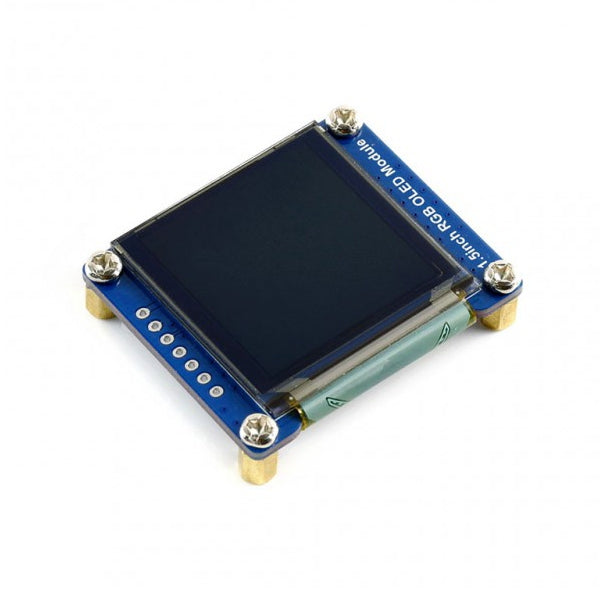

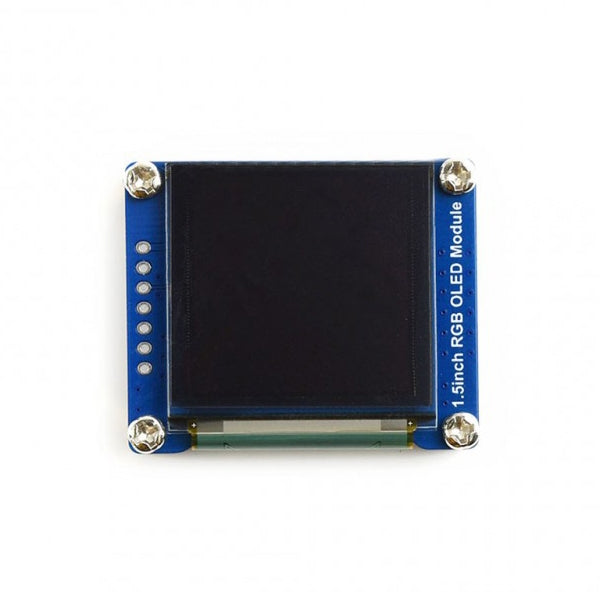

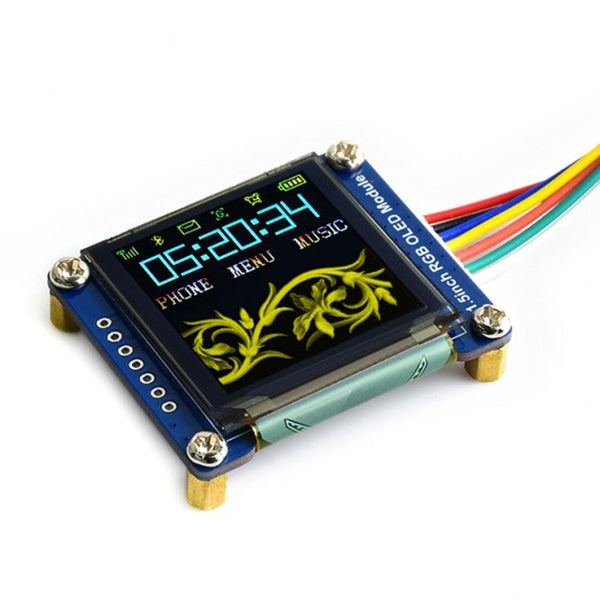

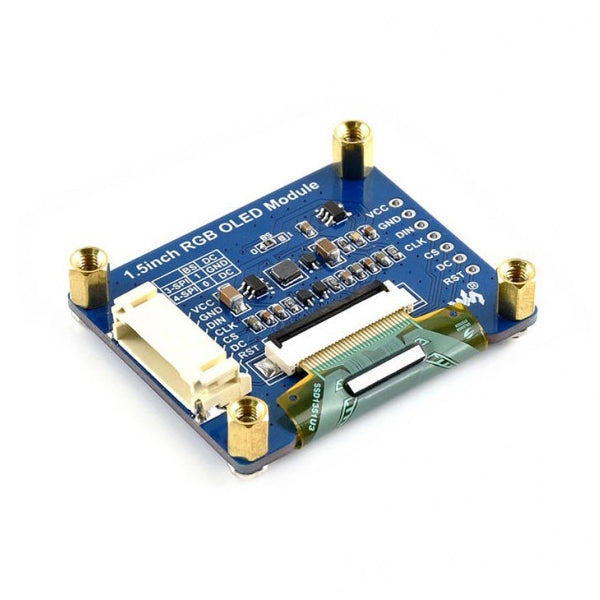

WAVESHARE 128x128 General 1.5inch RGB OLED Display Module 16-bit High Color with SPI Interface, 1.5inch OLED

WAVESHARE 128x128 General 1.5inch RGB OLED Display Module 16-bit High Color with SPI Interface, 1.5inch OLED

$20.16 USD
$20.16 USD
In offerta Esaurito
Spese di spedizione calcolate al check-out.
Option
1. 128x128 high resolution, 65K colors, clearly displays colorful images
2. Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
3. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
7. Driver: SSD1351
8. Interface: 4-wire SPI, 3-wire SPI
9. Display color: RGB, 65K colors
10. Resolution: 128x128
11. Viewing angle: >160?°
12. Operating voltage: 3.3V / 5V
13. Dimension: 44.5 x 37 (mm)


Specification:
Package Weight
One Package Weight 0.07kgs / 0.15lb
One Package Size 10cm * 8cm * 8cm / 3.94inch * 3.15inch * 3.15inch
Qty per Carton 150
Carton Weight 9.50kgs / 20.94lb
Carton Size 60cm * 32cm * 32cm / 23.62inch * 12.6inch * 12.6inch
Loading Container 20GP: 434 cartons * 150 pcs = 65100 pcs
40HQ: 1007 cartons * 150 pcs = 151050 pcs
