1. Resolution: 800 × 480
2. Display interface: DSI
3. Display panel: IPS
4. Viewing angle: 160 degrees
5. Touch screen models:
- Touch type: capacitive touch
- Touch points: 5 points touch
- Touch interface: I2C
- Touch panel: tempered glass panel
9. Application scenarios: smart home, automotive equipment, consumer electronics, industrial equipment, etc.

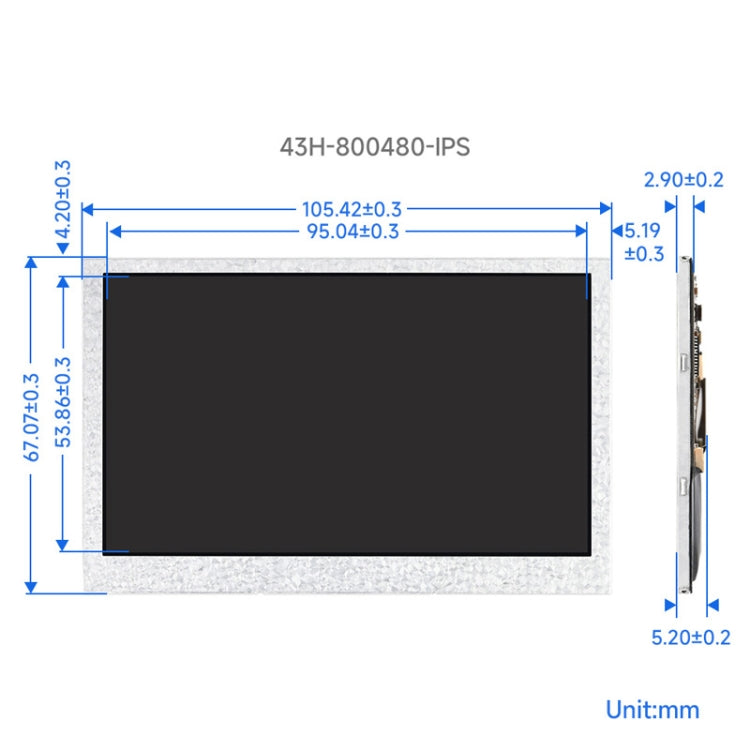

10. Screen size: about 4.34 inches
11. Size ：approx. 10.5 x 6.7 x 5.2cm
Features:
1. IPS display panel with good display performance and wide viewing angle of up to 160 degrees

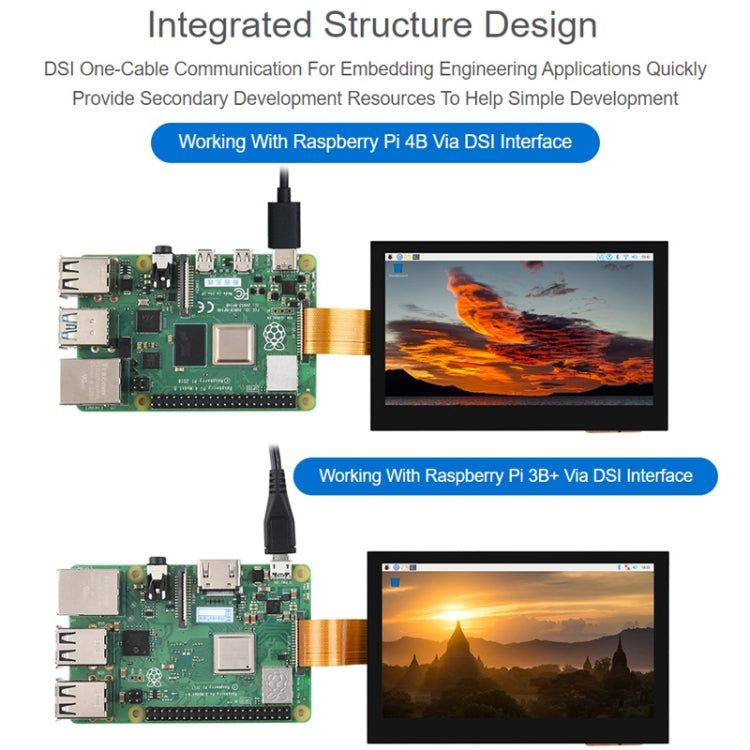

2. Integrated structure design, DSI one-line, easy to integrate integrated design, provide secondary development materials, help simple development

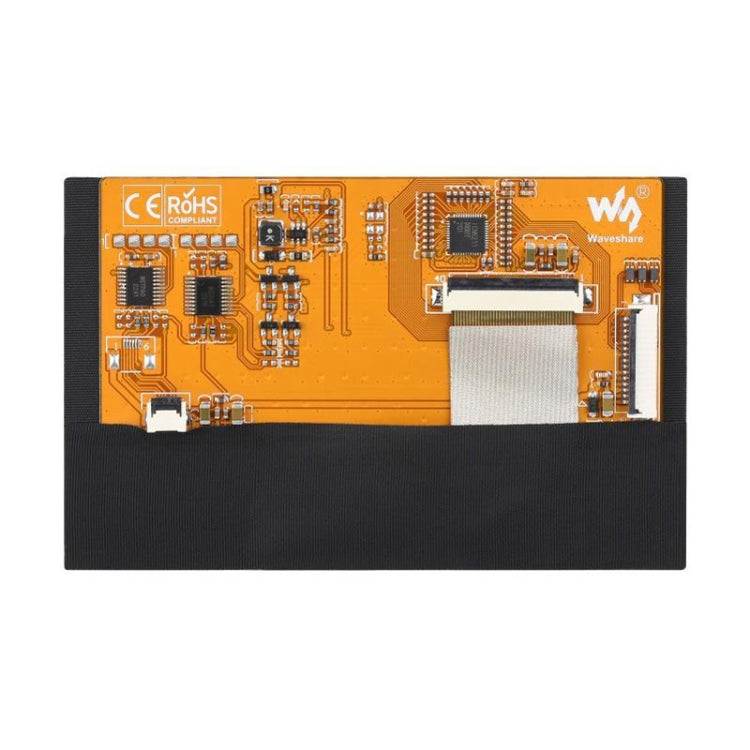

3. Thinner and more space-saving, the driver circuit is integrated into the FPC, about 5mm thickness space can be
4. Touch models capacitive five-point touch, flexible operation, through the I2C signal, lead to touch function, support five-point touch
5. Touch model backlight brightness can be adjusted by software

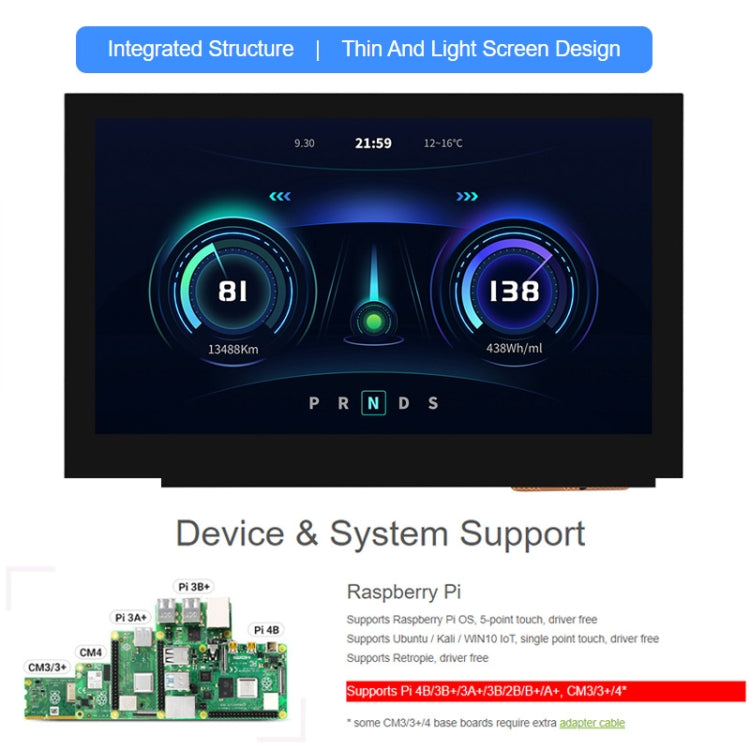

6. Support Raspberry Pi OS, 5-point touch, driver-free
7. Support Ubuntu / Kali / WIN10 IoT, single-touch, driver-free
8. Support Retropie, driver-free
9. Support Pi 4B/3B+/3A+/3B/2B/B+/A+, some CM3/3+/4 backplanes need to buy adapter cable separately
Specification:
| Package Weight |
| One Package Weight |
0.30kgs / 0.67lb |
| One Package Size |
12cm * 10cm * 3cm / 4.72inch * 3.94inch * 1.18inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
55cm * 46cm * 13cm / 21.65inch * 18.11inch * 5.12inch |
| Loading Container |
20GP: 810 cartons * 98 pcs = 79380 pcs
40HQ: 1882 cartons * 98 pcs = 184436 pcs
|
|
