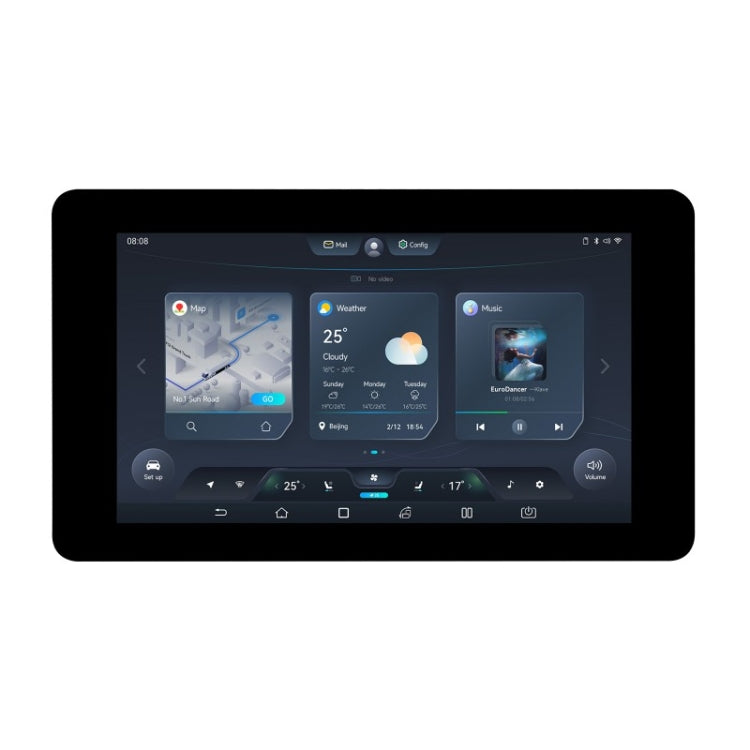

Waveshare ESP32-S3 7-Inch 800 X 480 Touch Display Development Board, 7-Inch

1. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240MHz
2. Support 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth5 (LE), onboard antenna
3. Built-in 512KB SRAM and 384KB ROM, stacked 8 MB Flash and 8 MB PSRAM

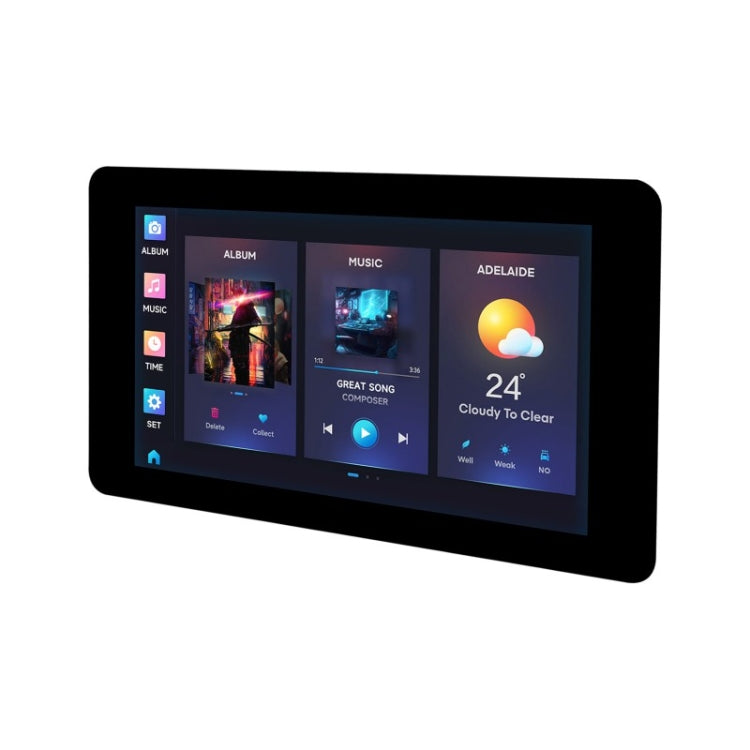

4. Onboard 7-inch capacitive touch screen, 800×480 resolution, 65K color
5. Support I2C interface to control capacitive touch, 5-point touch, support interrupt

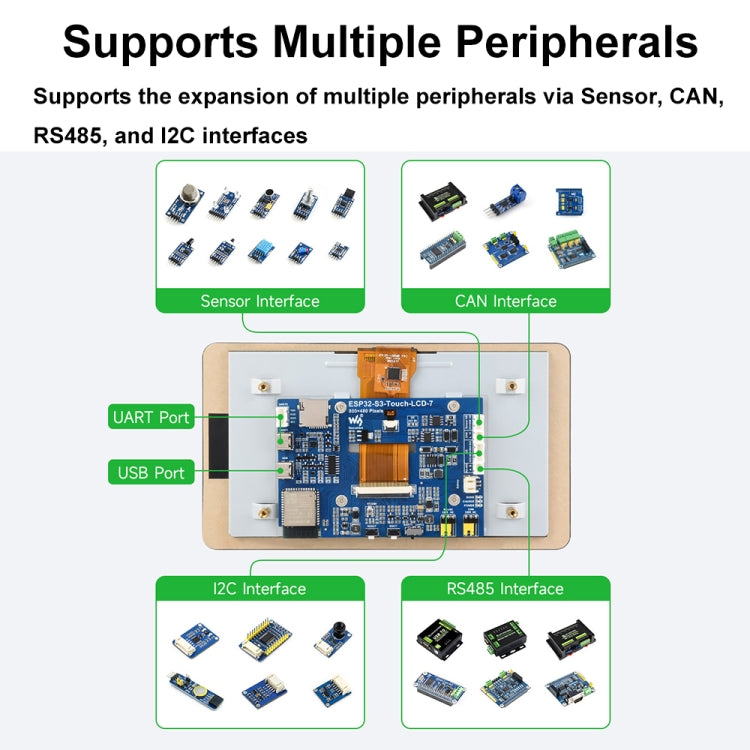

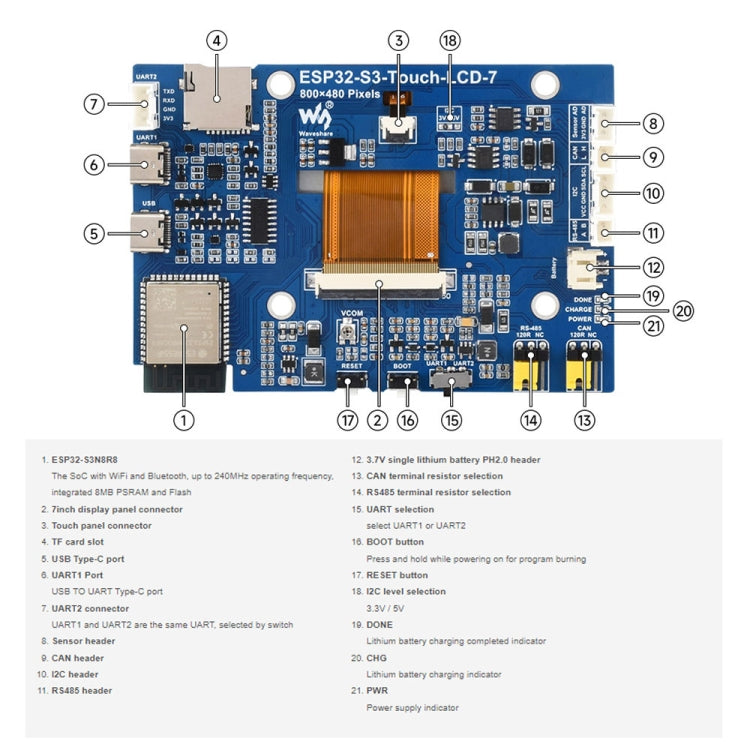

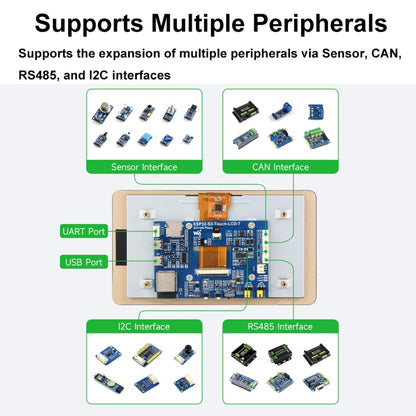

6. Onboard CAN, RS485, I2C interface and Micro SD card holder, etc., integrated full-speed USB serial port
7. Support flexible clock, module power supply individual setting and other precise control, to achieve multi-scenario low power mode
8. Application areas: HMI human-machine interface, LVGL GUI development

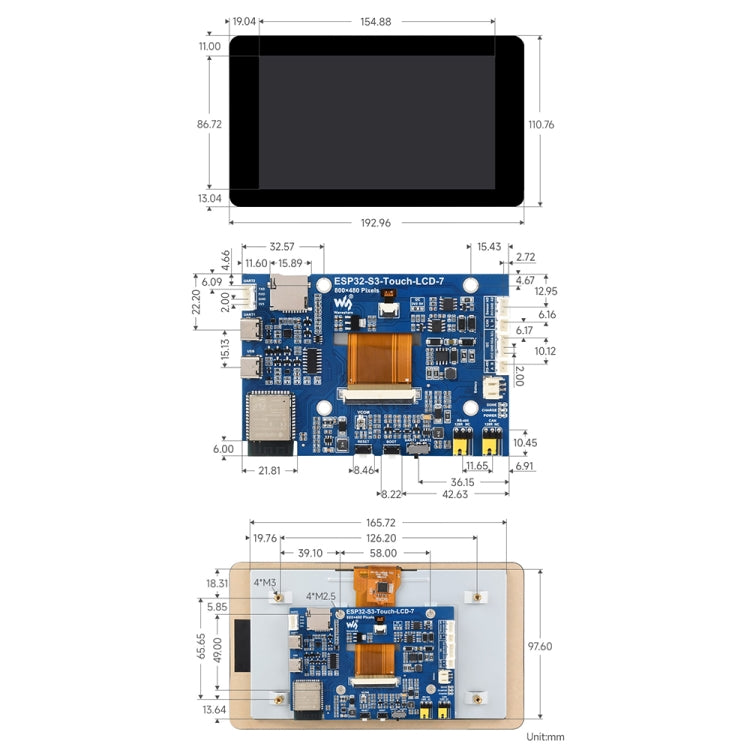

9. Product size: 192.96 x 110.76mm
10. Weight: 291g
