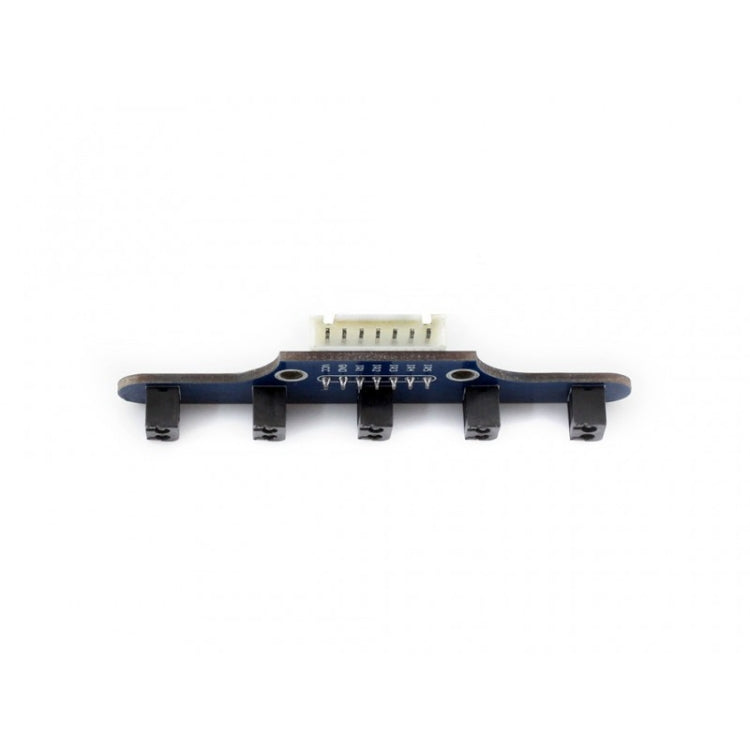

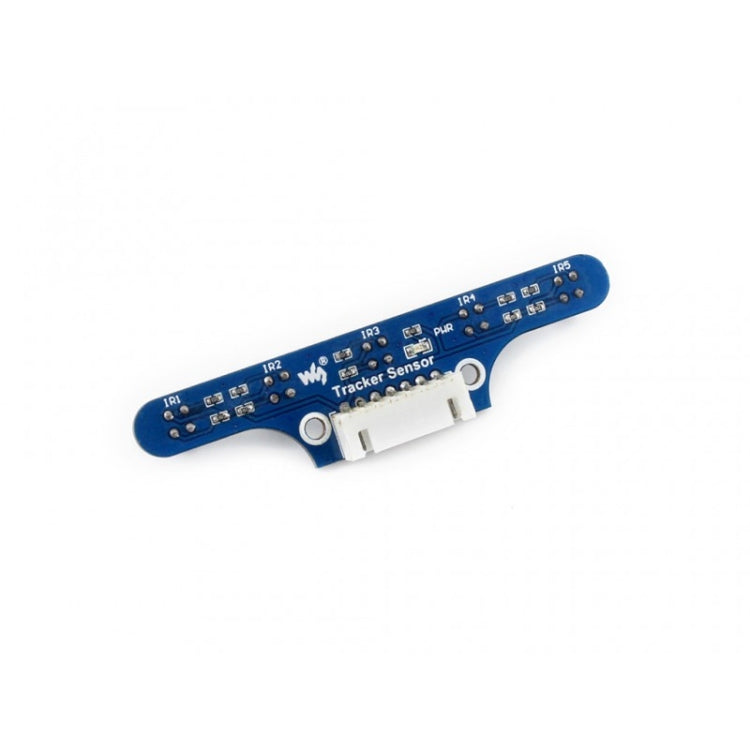

1. 5-ch ITR20001/T infrared detector, high sensitivity, anti-jamming, stable performance
2. High precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable
Specifications
1. Power: 3.3V ~ 5V
2. Dimension: 78mm × 18mm
3. Detector spacing: 16mm
4. Mounting holes size: 3mm
5. Detection range: 1cm ~ 5cm
Applications

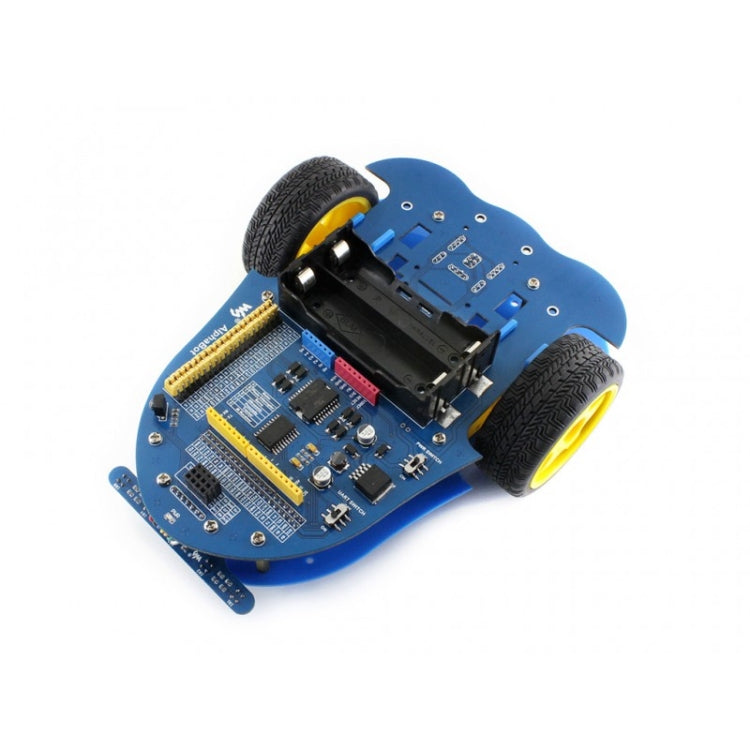

Robot line tracking

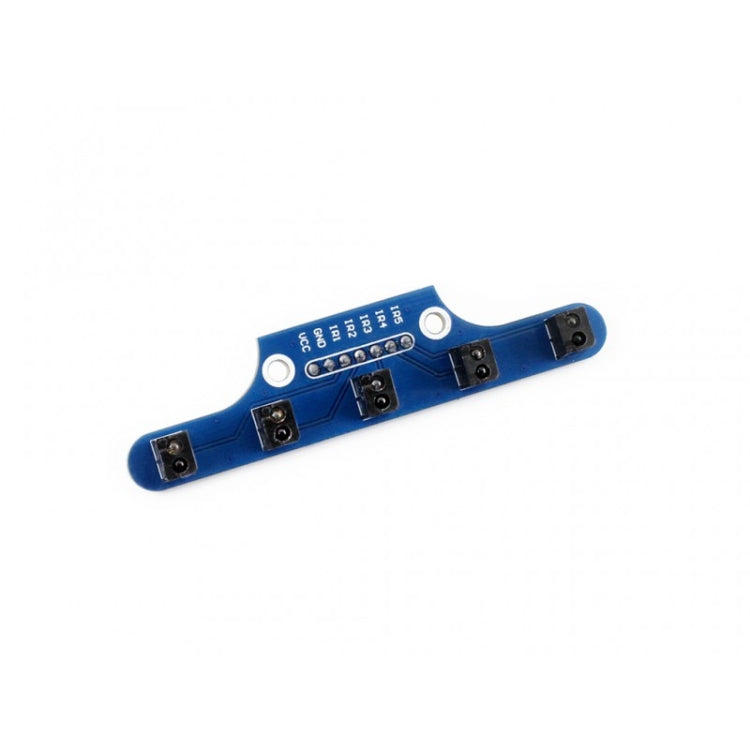

How to Use
In the case of working with a MCU:
- VCC ? 3.3V ~ 5V
- GND ? GND
- IR1 ? MCU.IO (ch1, analog output)
- IR2 ? MCU.IO (ch2, analog output)
- IR3 ? MCU.IO (ch3, analog output)
- IR4 ? MCU.IO (ch4, analog output)
- IR5 ? MCU.IO (ch5, analog output)
Specification:
| Package Weight |
| One Package Weight |
0.03kgs / 0.07lb |
| One Package Size |
10cm * 4cm * 2cm / 3.94inch * 1.57inch * 0.79inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch |
| Loading Container |
20GP: 277 cartons * 1200 pcs = 332400 pcs
40HQ: 644 cartons * 1200 pcs = 772800 pcs
|
|
