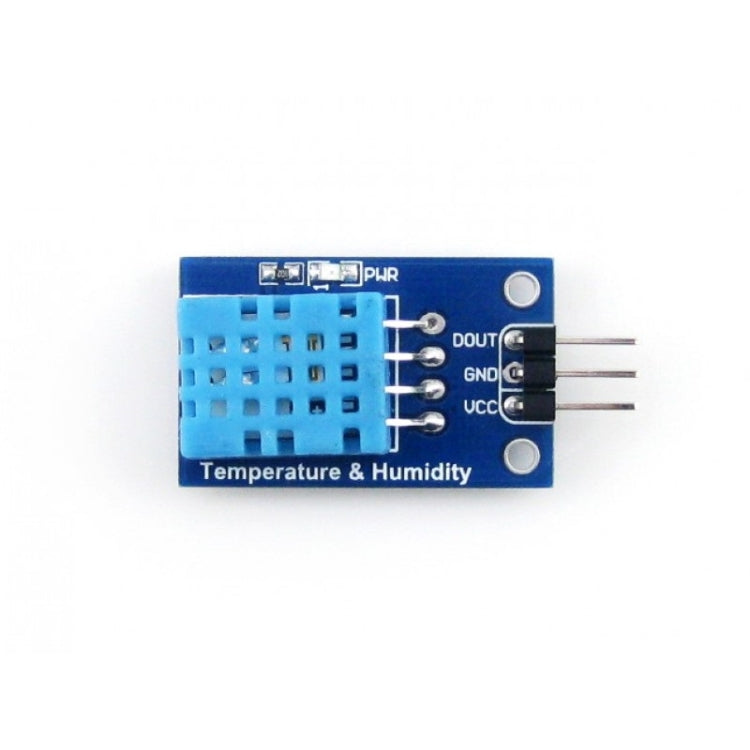

Overview This is a calibrated digital temperature and humidity module with onboard sensor DHT11. It can be used for detecting ambient temperature and humidity, through the standard single-wire interface.
Specifications 1. Temperature - Resolution : 1 degree C - Accuracy : +/-2 degree C - Measuring range : 0 degree C ~ 50 degree C 2. Humidity - Resolution : 1%RH - Accuracy : +/-5%RH (0~50 degree C) - Measuring range : 20%RH ~ 90%RH (25 degree C) 3. Operating voltage : 3.3V ~ 5.5 V 4. Recommended storage condition - Temperature : 10 degree C ~40 degree C - Humidity : 60%RH or below
Applications 1. Weather station 2. Humidity controller 3. Test & detection device
How to Use In the case of working with a MCU: 1. VCC: 3.3V ~ 5.5V 2. GND: GND 3. DOUT: MCU.IO
