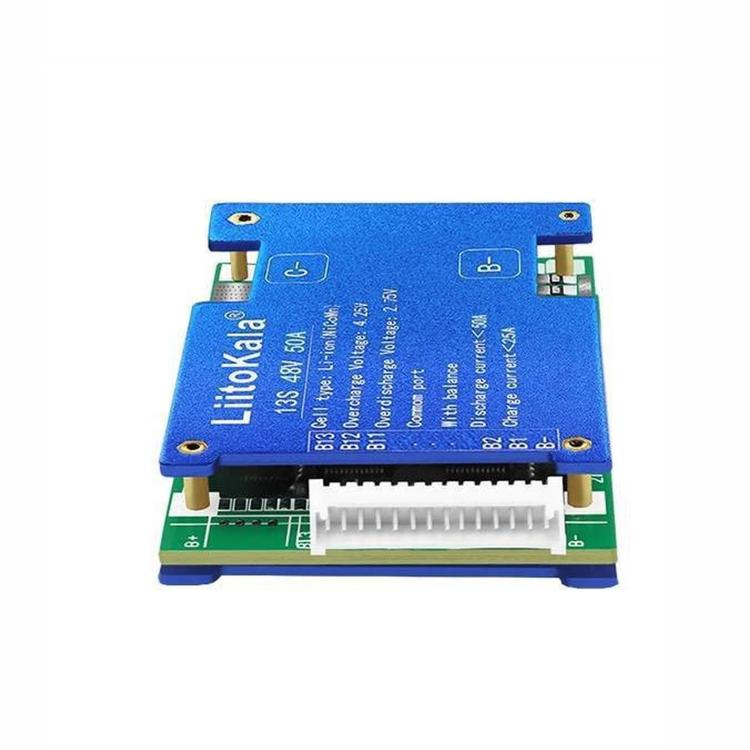

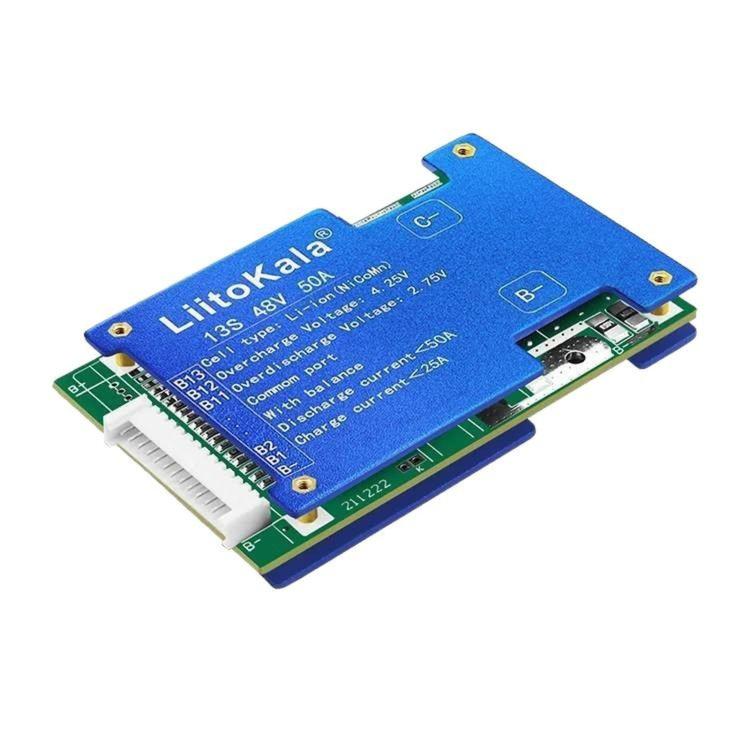

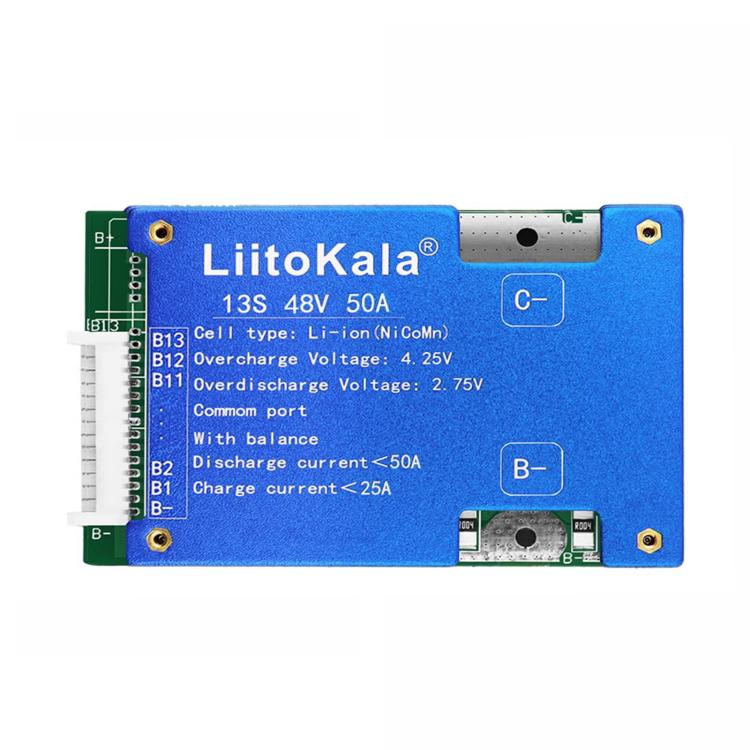

LiitoKala BMS 13-cell Lithium Battery Protection Board, 13S-48V 50A

1. Discharge current: 50A
2. Charging current: 15A
3. Main circuit on-conduction resistance: 20 milliohms
4. Discharge overcurrent protection: 100A

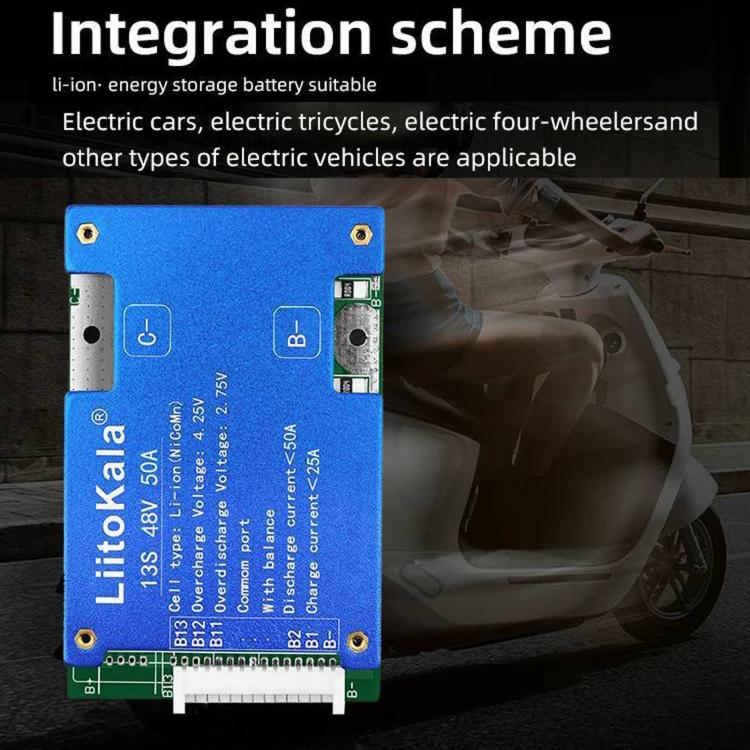

5. Meets the battery management requirements of most electric bicycles, electric tricycles, and home energy storage systems
6. Uses a common interface design for charging and discharging, simplifying wiring
7. Built-in precision integrated circuit (IC) protection scheme, supporting efficient battery balancing to ensure consistent cell voltage

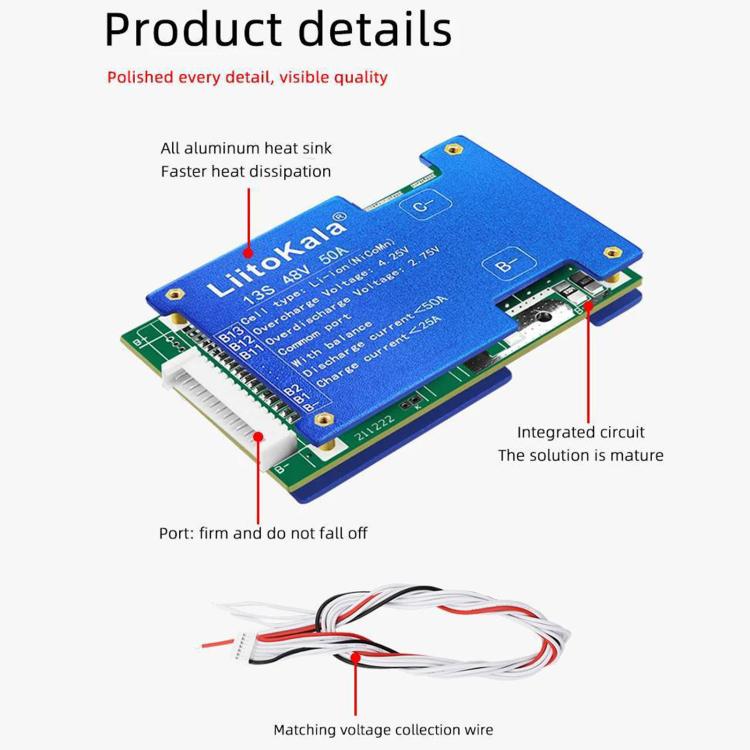

8. Equipped with an anodized aluminum alloy heat sink, increasing heat dissipation area, effectively reducing operating temperature, and ensuring the stability and safety of the protection board under high load operation
9. Product dimensions: 86.5x55x10mm
