1) Turn-on your power supply
2) Plug-in your 24 pin power supply connector to mini tester

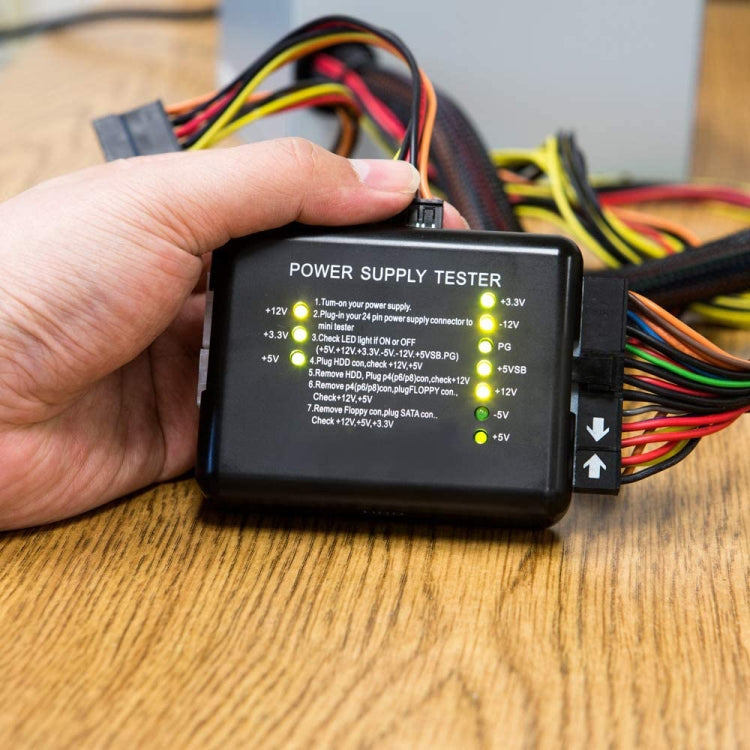

3) Check LED light if ON or OFF (+5V, +12V, +3.3V, -5V, -12V, +5VSB, PG)
4) Plug HDD con, check +12V, +5V
5) Remove HDD, plug p4(p6/p8)con, check +12V
6) Remove p4(p6/p8)con, plug FLOPPY con, check +12V, +5V
7) Remove Floppy con, plug SATA con, Check +12V, +5V, +3.3V
* Specification
1) Voltage source: 20/24pin(ATX-connector)
2) Voltage test: +12V, +12V, +5V, -5V, +3.3V, 5V Stand by (SB) 12V, power Good(PG)
3) Connectors: Floppy, HDD, CDROM, SATA, 4pin(P4), 8pin(Dual-CPU), 6pin(PCI-Express)
Specification:
| Package Weight |
| One Package Weight |
0.08kgs / 0.19lb |
| One Package Size |
9cm * 7cm * 2.8cm / 3.54inch * 2.76inch * 1.1inch |
| Carton Weight |
6.40kgs / 14.11lb |
| Carton Size |
36cm * 41cm * 36cm / 14.17inch * 16.14inch * 14.17inch |
| Loading Container |
20GP: 501 cartons * 60 pcs = 30060 pcs
40HQ: 1165 cartons * 60 pcs = 69900 pcs
|
|
