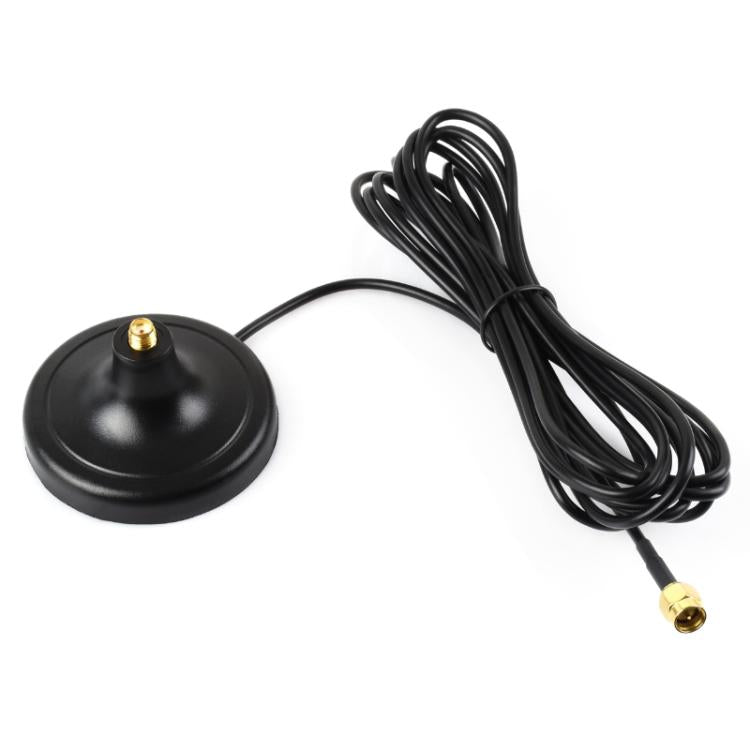

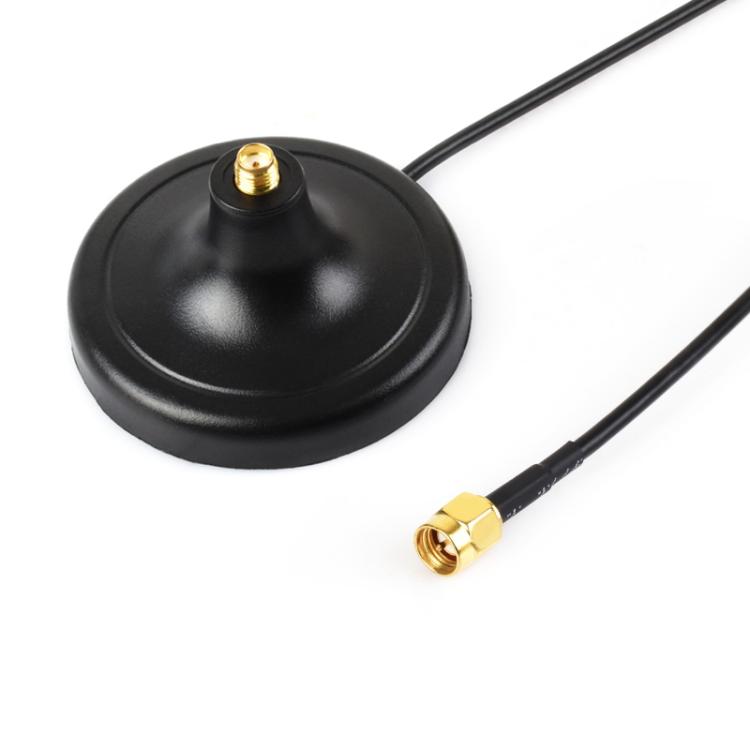

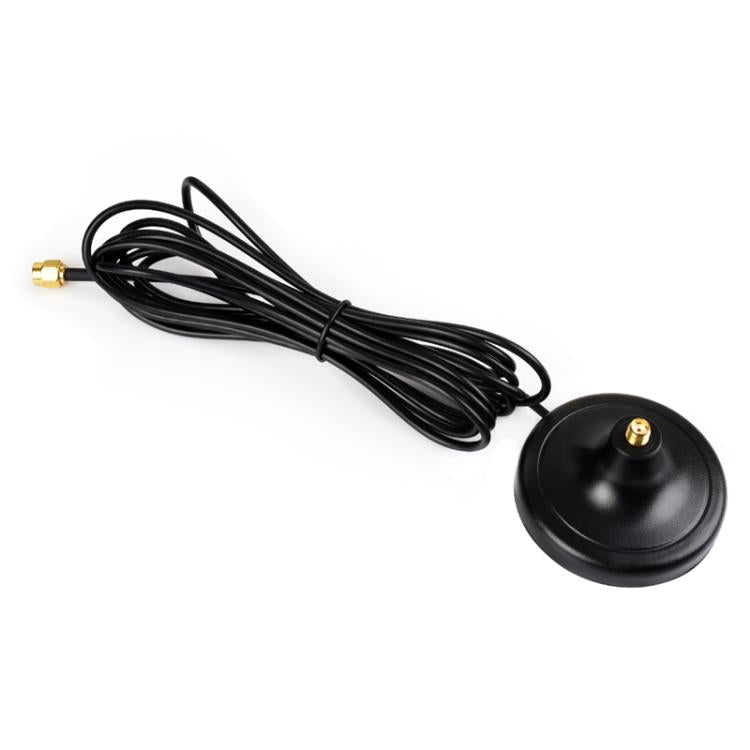

WAVESHARE SMA Antenna Suction Cup Magnetic Base 3-meter Coaxial Cable, Magnetic Base

Name: WAVESHARE SMA Antenna Suction Cup Magnetic Base 3-meter Coaxial Cable, Magnetic Base
Brand: WAVESHARE
Price: 5.46 USD
Availability: InStock

$5.46 USD

Sale Ausverkauft

Versand wird beim Checkout berechnet

Option Magnetic Base

1. Frequency range: 0GHz ~ 6GHz
2. Mounting method: magnetic base fixation
3. Impedance: 50 ohms
4. Cable type: RG174 coaxial cable
5. Input power: 50W
6. Cable length: 3m
7. Base interface: SMA female (external thread)
8. Cable terminal interface: SMA male (internal thread)
9. Base dimensions: 60.5 x 36 (mm)
10. Cable length: 30cm

Specification:

Package Weight

One Package Weight

0.08kgs / 0.19lb

One Package Size

13cm * 10cm * 4cm / 5.12inch * 3.94inch * 1.57inch

Qty per Carton

Carton Weight

6.90kgs / 15.21lb

Carton Size

41cm * 32cm * 34cm / 16.14inch * 12.6inch * 13.39inch
