Feature

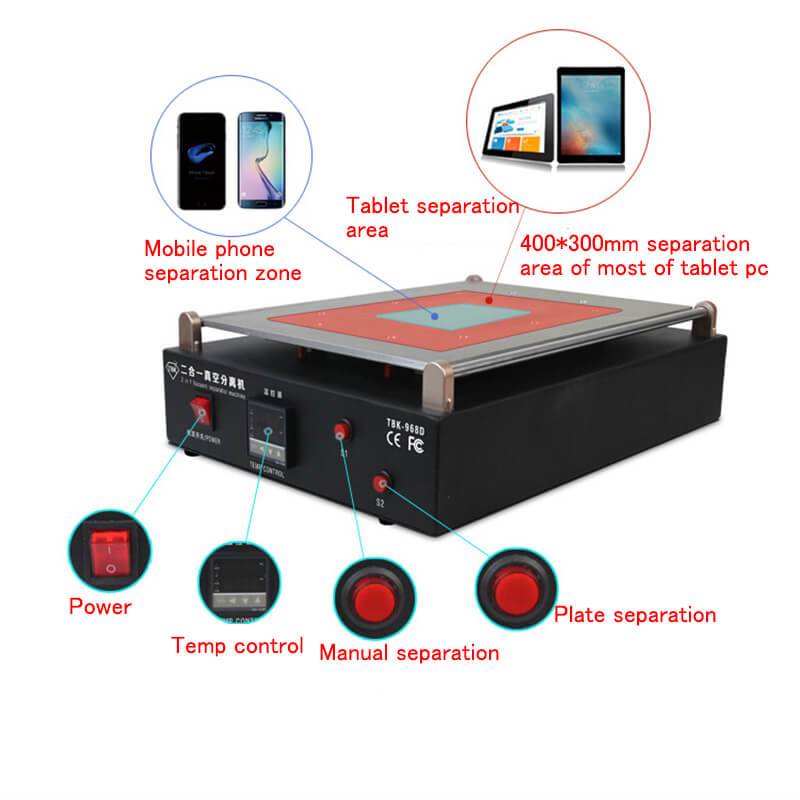

2 in 1 vacuum lcd separator, with two modes of plate separation and mobile phone separation;

19-inch super large separation table, which can support 99% of the mobile phones and tablets on the market;

The heating table can set the temperature by yourself,and the separation effect is good

19 inch vacuum pump built-in separator
Built-in vacuum pump OCA lcd separator machine

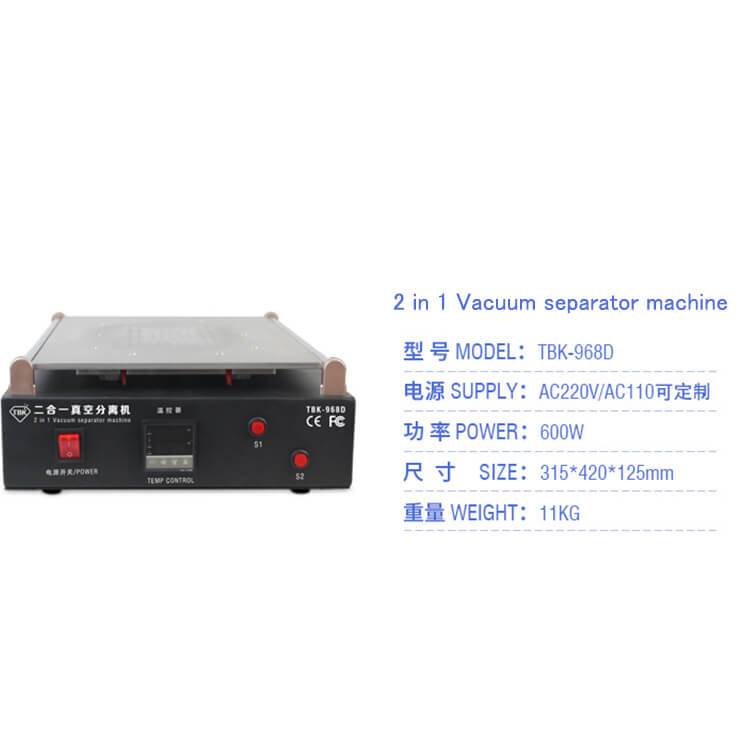

Product characteristics

Voltage: 220V / 110V

Power: 600W

Separation size: 400 * 300

Machine size: 315 * 420 * 125mm

Packing size: 370 * 455 * 175mm

Net weight: 11KG

Gross weight: 13KG

The maximum temperature that can be set for this machine is 220°C, and the temperature used by the separate screen is 80°C-120°C

How to use it?

Step 1: Put rubber mat on heating plate.

Step 2: Turn vacuum button (s1/ s2) on, put LCD screen on rubber mat and fix tightly.

Step 3: Turn on the machine and wait for the metal plate become 80-100 degree.

Step 4: Start to separate the LCD off the glass with cutting wire, then right and left movement with wire between the LCD and the glass, please notice that you must using gentle power and keep wire stay on the LCD surface, so that it will avoid the damage of touch screen.

Step 5: Finally you have finished the separating work, and do a good job

Post Your Needs Information

TBK 968D Separator Machine 19 inch separator Build-in Vacuum Pump LCD Touch Screen Repair Machine

Brand: Oriwhiz Replace Parts

Availability:50 pieces remain(Low stock) will be shipped within 24 hours

Product Code: 2101115

Leadtime: Find estimated receipt time in the shopping cart

$278.30 278.30
