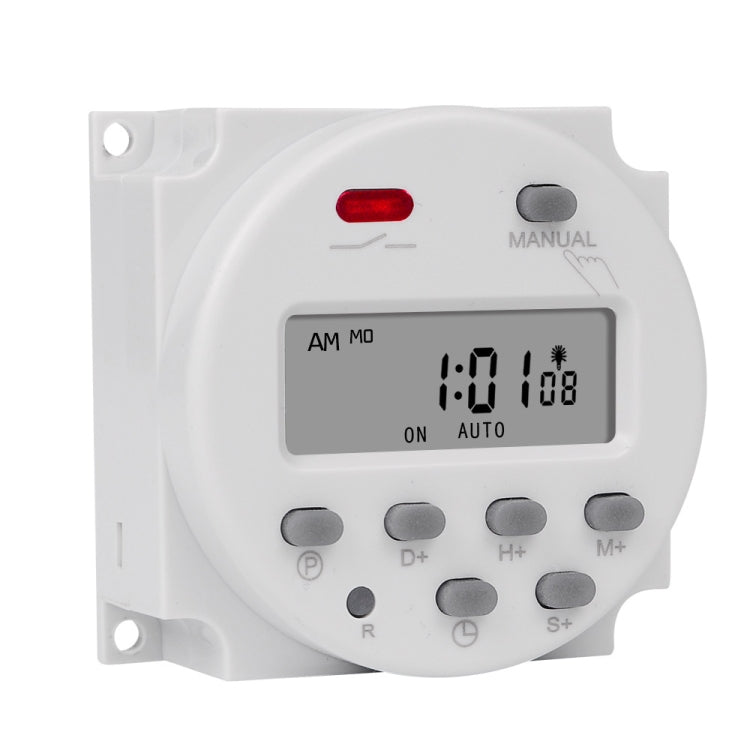

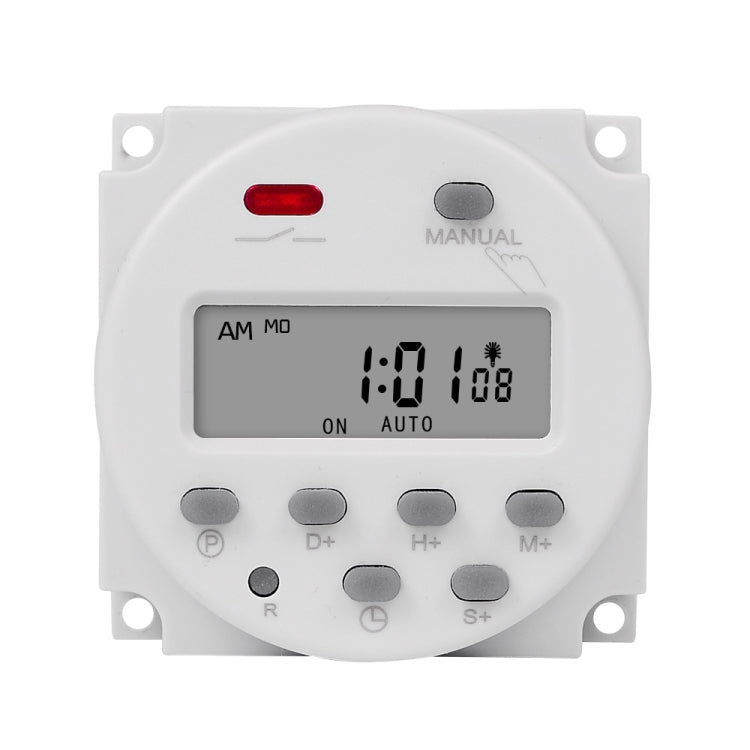

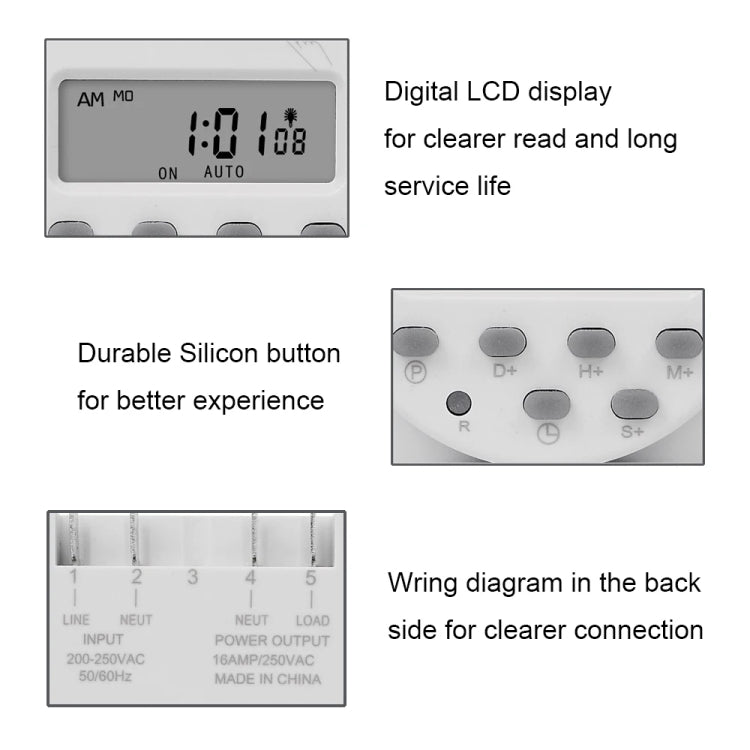

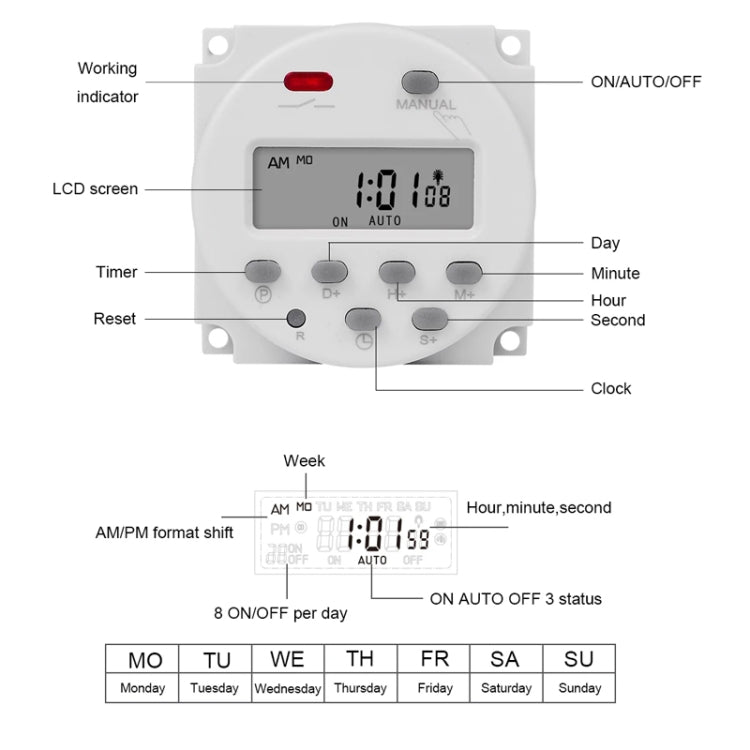

1. Easy to read LCD display, LED indicator.
2. Minimum interval 1 second.
3. 8 on/off programs per day, 15 combinations per week.
4. 24 hours/7 days per week programmable.
5. Countdown function. Maximum 24 hours countdown to shutdown.

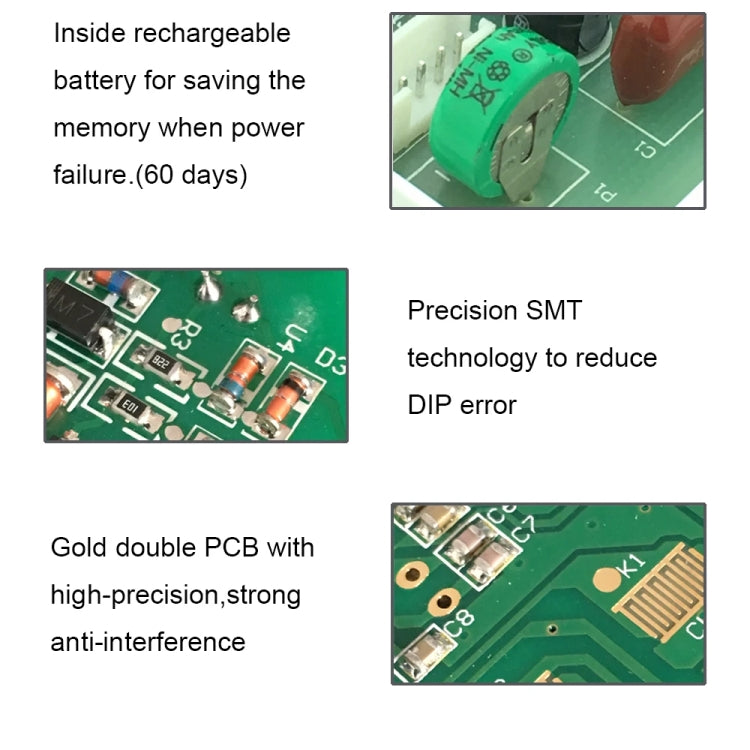

6. Built-in rechargeable battery to save memory in case of power outage.
7. Repeating program with 8 on/off settings and manual on/off setting.
Parameters:
1. Model: CN101S
2. Power supply: 5V, 12V, 24V, 110V, 220V 50/60Hz
3. Maximum load: 16A
4. Minimum interval: 1 second
5. Timing range: 1 second to 168 hours
6. Setting groups: 8 on/off per day
7. Programs: 15 groups
8. Power outage: 60 days
9. Average error: less than +/- 2 seconds/day
10. Battery type: 1.2V, built-in, rechargeable
11. Installation: Panel/wall mount
Specification:
| Package Weight |
| One Package Weight |
0.08kgs / 0.19lb |
| One Package Size |
8cm * 8cm * 6cm / 3.15inch * 3.15inch * 2.36inch |
| Carton Weight |
10.70kgs / 23.59lb |
| Carton Size |
50cm * 34cm * 32cm / 19.69inch * 13.39inch * 12.6inch |
| Loading Container |
20GP: 490 cartons * 120 pcs = 58800 pcs
40HQ: 1137 cartons * 120 pcs = 136440 pcs
|
|
