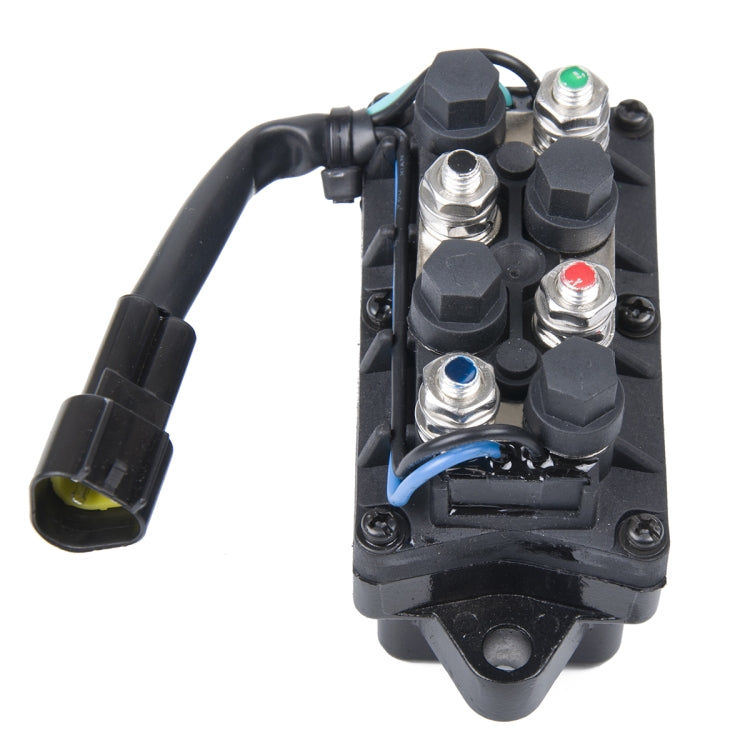

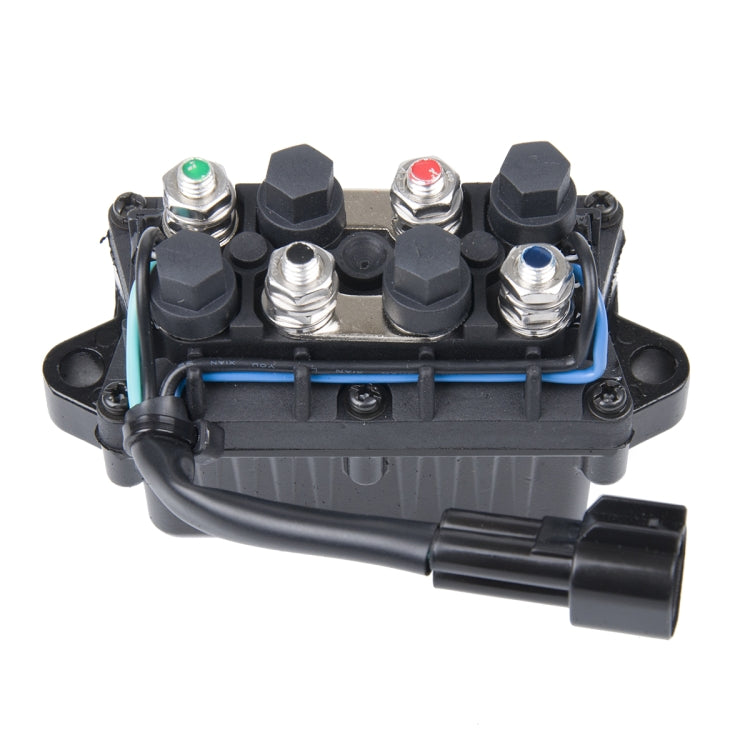

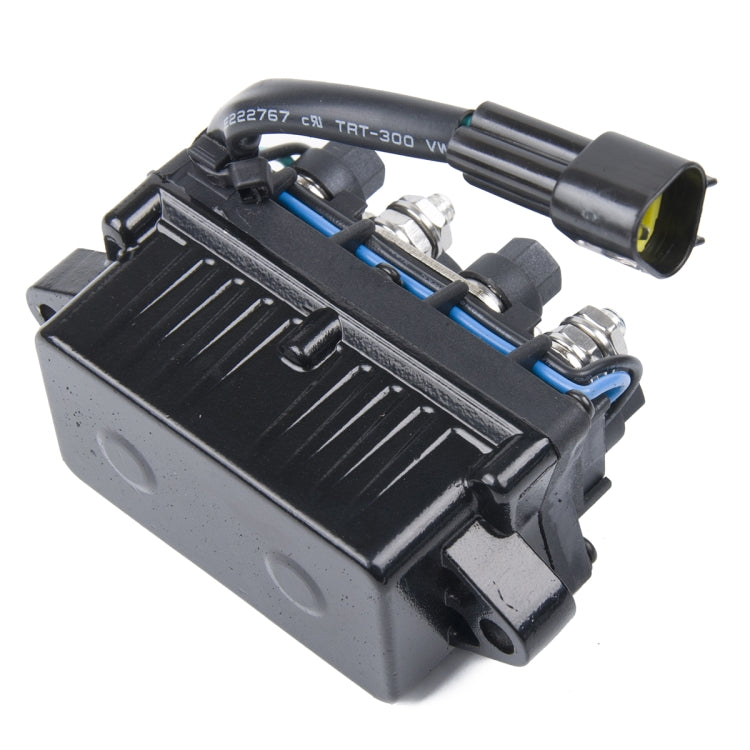

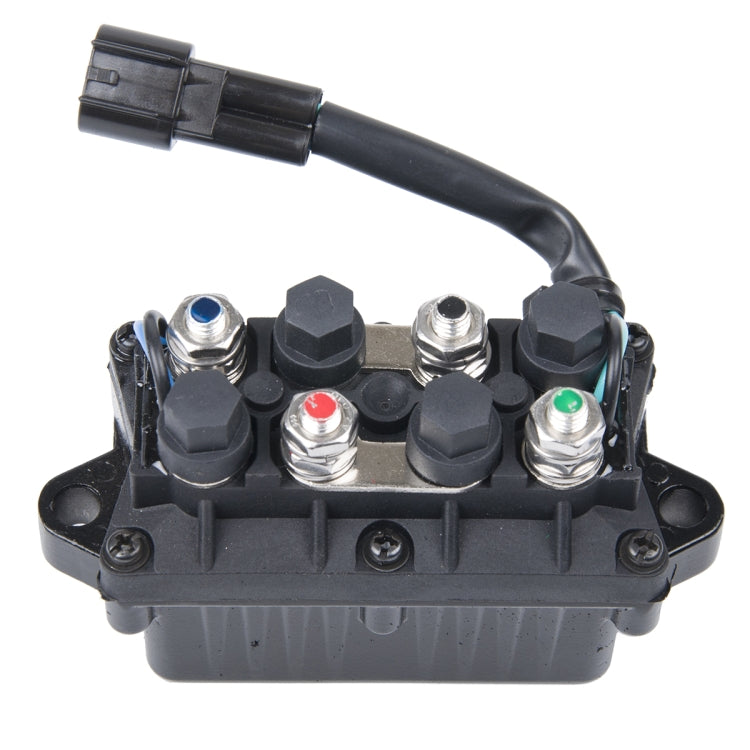

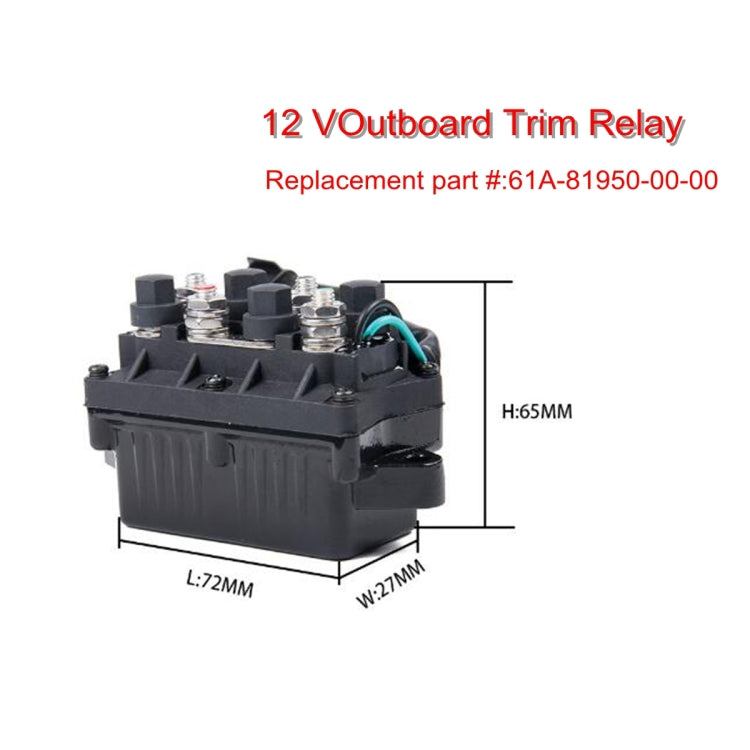

1. Replacement part: 61A-81950-00-00 2. Color??? black 3. Voltage: 12V 4. Current :120A 5. Working mode: Batch-type 6. Connector: DJ7031Y-2.3-11 7. Structure: Non-removable 8. Waterproof rating: IP67 9. Connection way:Red to Power(+),Black to Power(-),Blue(Green) to the motor,you can change the connection of Blue and Green to reach the right lifting direction you want. 10. Fitment for: YAMAHA 40-90 HP POWER TRIM AND TILT RELAY F-150 HP 2004-2009 F-225 HP TLR MODEL 2007-2009 F-250 HP 2005-2009 F-25 HP 2009 F-40 HP 2009 F-50 HP 2005-2009 F-60 HP 2005-2009 F-75 HP 2005-2009 F-90 HP 2005-2009 Note: 1. This is just for reference, please check and confirm the OE carefully before purchasing. 2. Please do not remove the 6 fixing screws,forcible removal will lead to damage of the relay 3. The continuous working time should not be more than 1 minute (In practice, it takes less than 15 seconds for the whole process).
