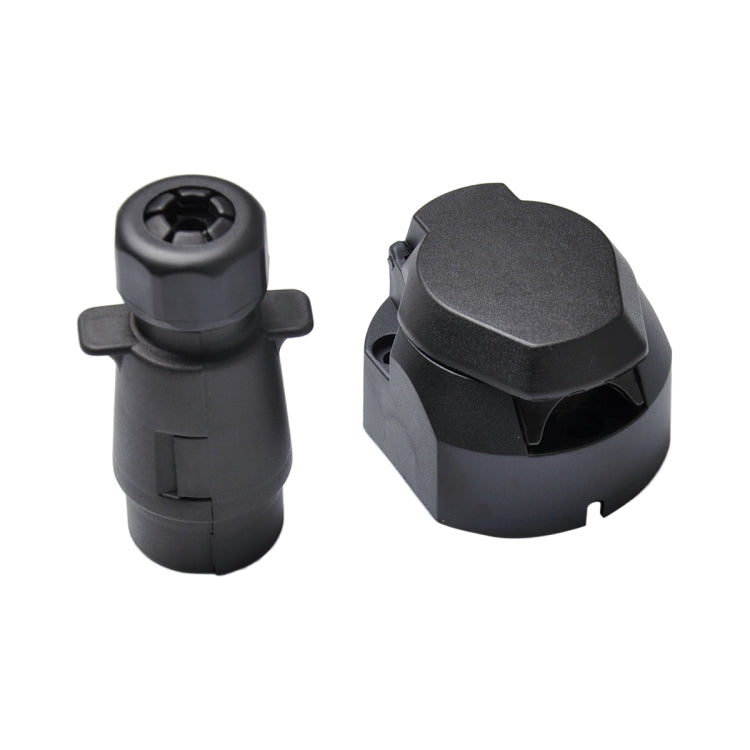

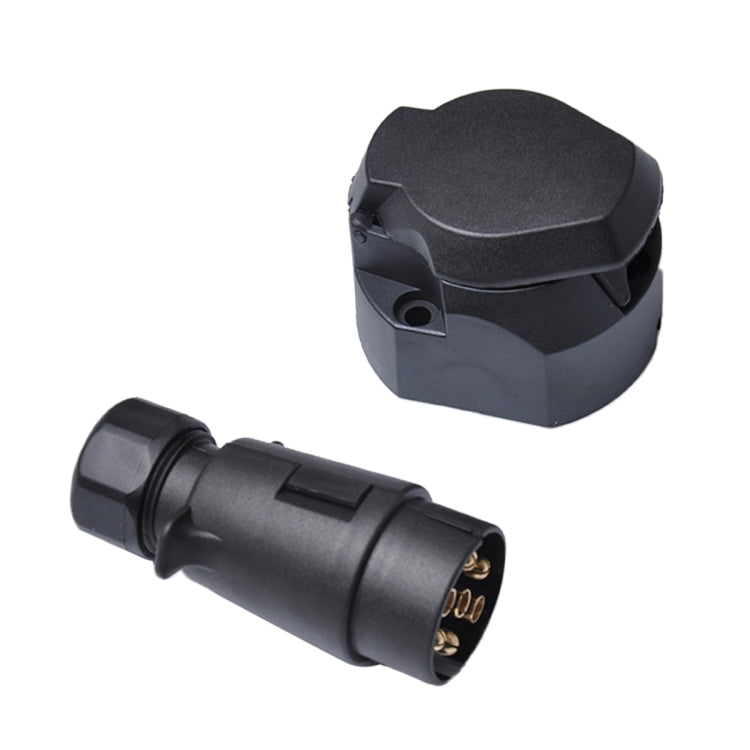

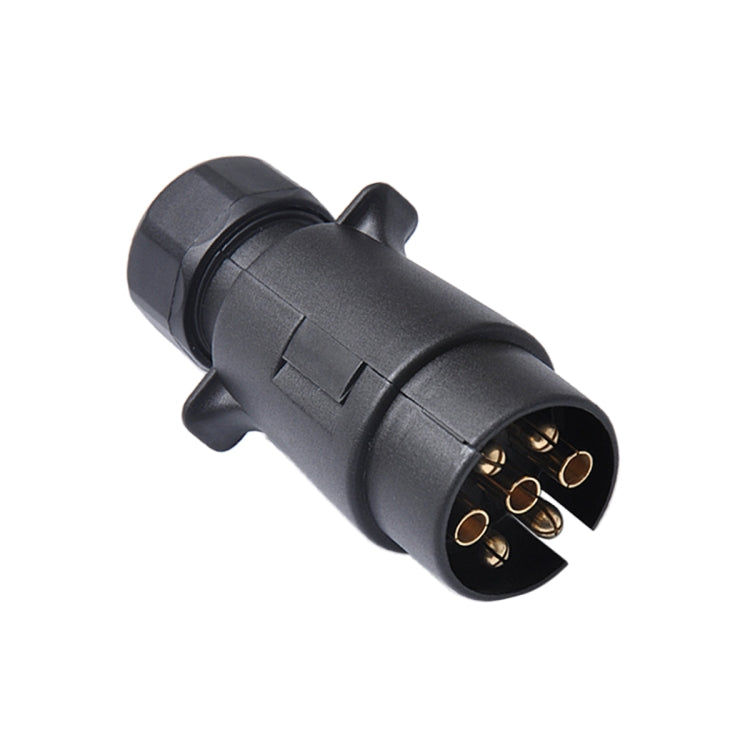

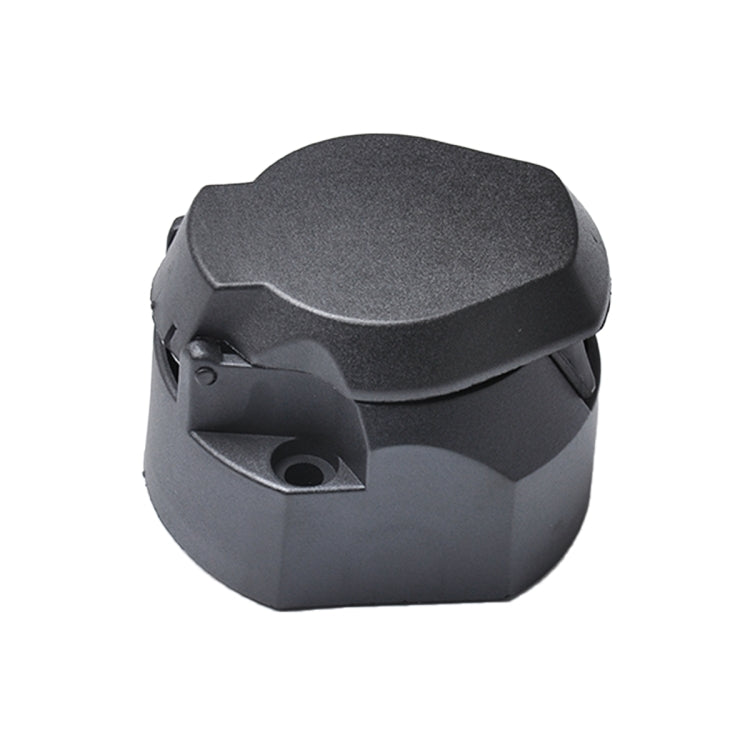

1. 7-pole trailer plug pendant connector easy to use
2. Towing & Hauling accessories
3. Non-corroding, shock-resistant design.
4. Made of aluminum, durable and can be used for a long time
5. Material: plastic & metal
6. Operating voltage: 12Volt

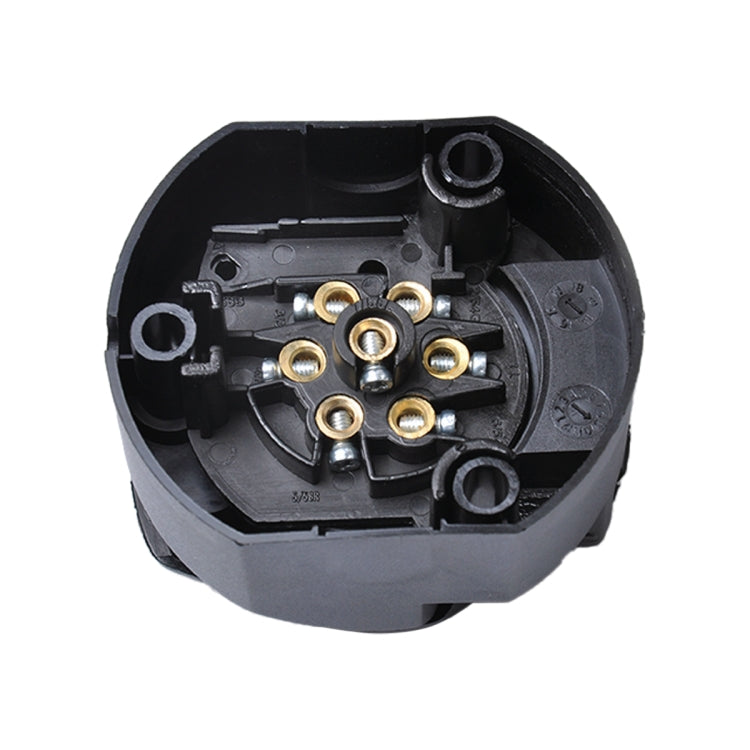

7. Type of connection: Screw contacts
8. 7 Pin lighting connections-12 N black cable function
PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
Specification:
| Package Weight |
| One Package Weight |
0.18kgs / 0.41lb |
| One Package Size |
16cm * 16cm * 5cm / 6.3inch * 6.3inch * 1.97inch |
| Carton Weight |
7.62kgs / 16.80lb |
| Carton Size |
38cm * 38cm * 32cm / 14.96inch * 14.96inch * 12.6inch |
| Loading Container |
20GP: 577 cartons * 36 pcs = 20772 pcs
40HQ: 1339 cartons * 36 pcs = 48204 pcs
|
|
