Features 1. FM Radio Frequency range: 65-108MHz 2. Dual-band display, dual standby 3. High power 5W / low selectable 1W 4. 128 channels 5. 50 CTCSS and 105 DCS 6. Built-in VOX function 7. Tone end of transmission 8. LED flashlight, large LCD display 9. High /Low RF power switchable 10. Squelch set(1-9 Level) 11. Emergency alert, low battery alert, battery saver, time-out timer, keypad kock 12. Monitor channel 13. Channel step: 2.5/5/6.25/10/12.5/25KHz 14. Restore to Factory Default 15. PC programming 16. Long comminution range: Open ground: 5-10km, Obstacle ground: 3-5km
Specification:
General

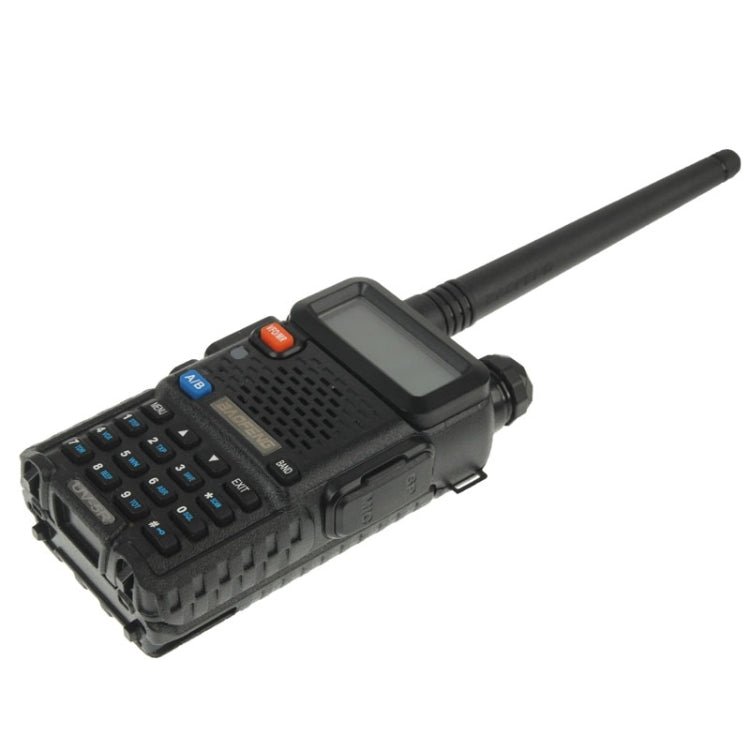

Model
UV-5R
Frequency Range
FM 65MHz-108MHz, UHF 400MHz-520MHz, VHF 136MHz-174MHz, UHF 400MHz-480MHz
Channel
128
Frequency Step
2.5kHz, 5kHz, 6.25kHz, 10kHz, 12.5kHz, 25kHz
Antenna Impedance
50 ohms
Voltage
7.4V
Consumption Standby
=<75mA

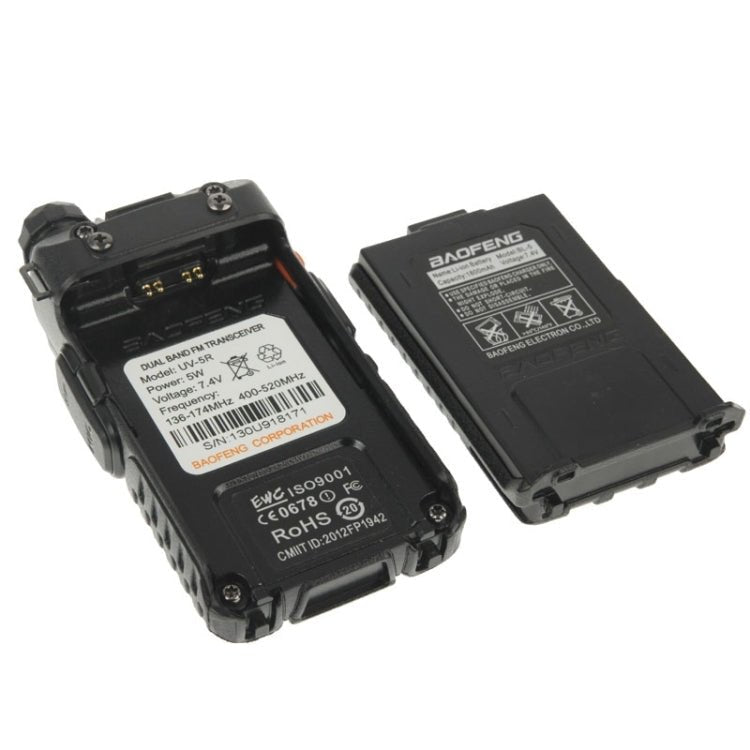

Battery Types
Lithium-ion Battery
Battery Capacity
1800mAh
Operation Mode
Simplex, Semi-duplex
Duty Cycle
03/03/54 min. (RX / Tx / Standy)
Working Temperature
-20C to 60C
Walkie Distance (Open)
3-5km
Walkie Distance (Barrier)
1-3km
Size
10.8*5.5*3.0cm
Weight
186g
Transmitter Parameters
RF Power
4W/1W
Spurious Emission
<-60dB
Maximum Deviation
=<+/-5kHz, =<+/-2.5kHz
Modulation Types
FM
Emission Class
16K/F3E, 11K/F3E
Transmitting Current
=<1.4A
Receiver Parameters
Stability
0.2μV (at 12dB Sinad)
Intermodulation
60dB
Adjacent Channel Selectivity
65dB
Audio Output
1000mW
Current
380mA

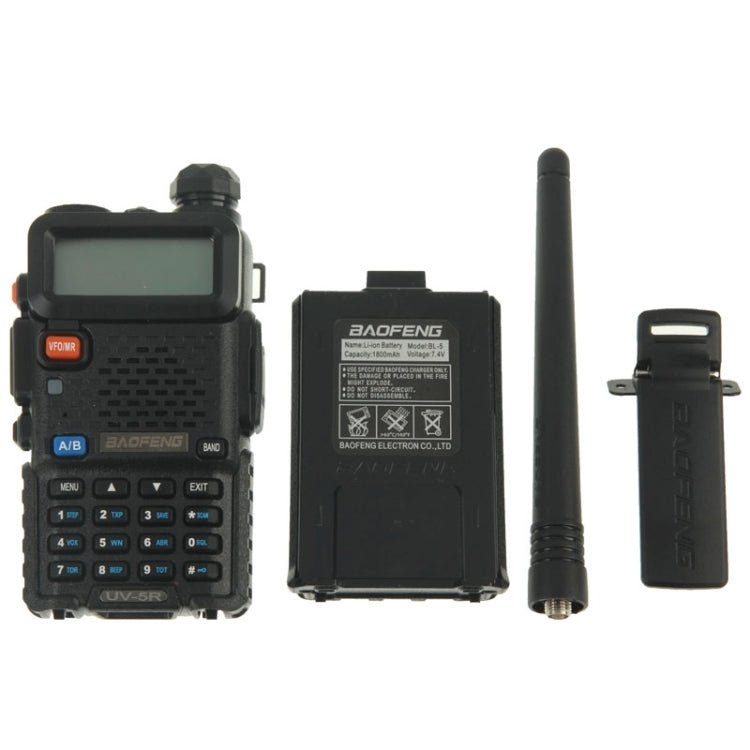

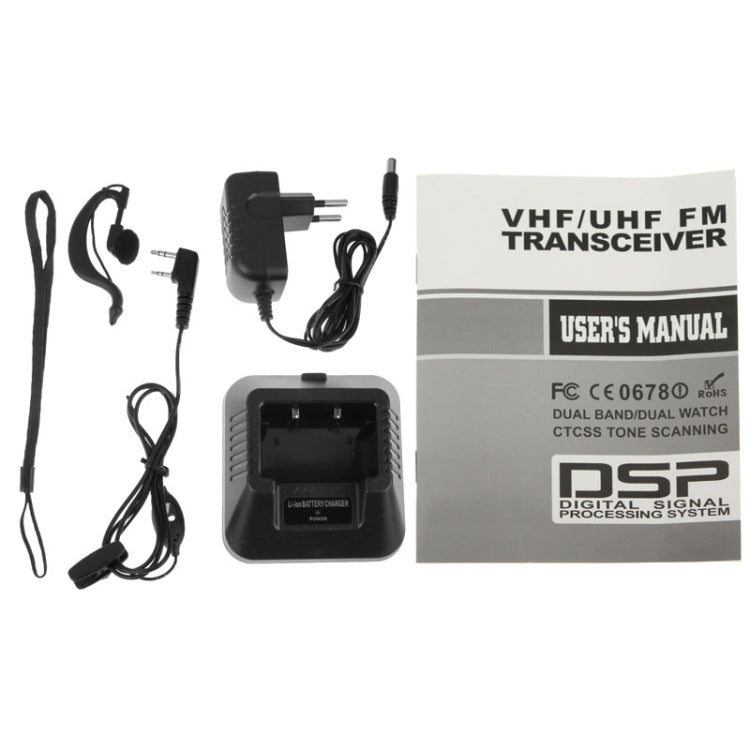

Package Include
Package Contents
1 x Walkie Talkie 1 x Rechargeable Battery 1 x Charger Base 1 x Belt-clip 1 x Strap 1 x User Manual
