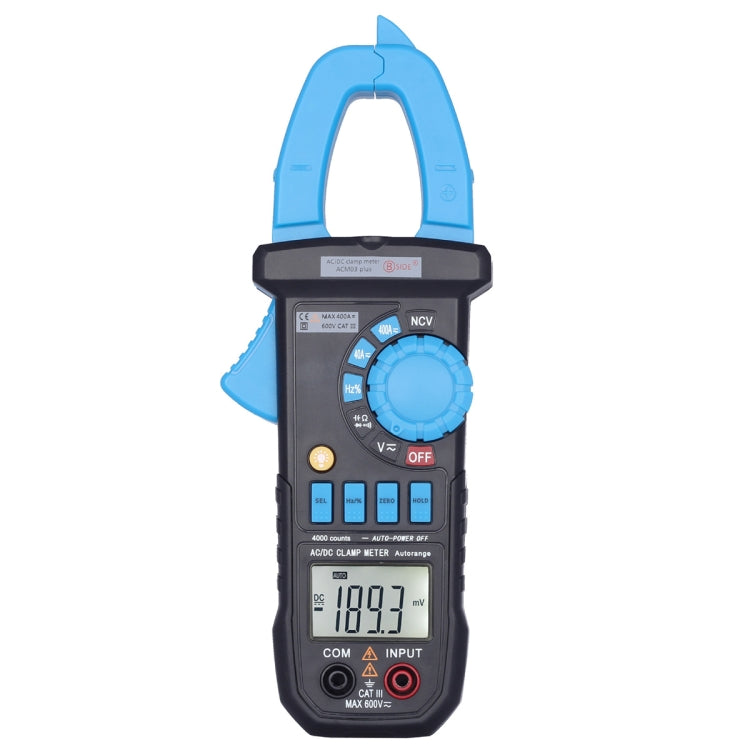

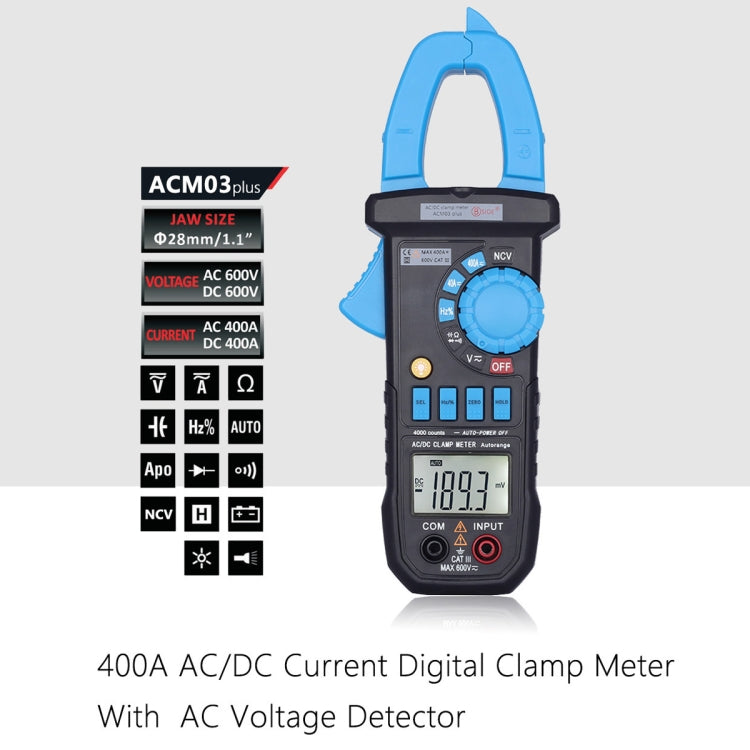

BSIDE ACM03 Plus 400A AC / DC Clamp Meter, BSIDE ACM03

1. It is designed according to the relevant safety requirements of iec1010-1 and iec1010-2-032
2. Used to measure AC and DC current
3. Non-contact voltage detection (NCV)
4. AC/DC voltage, resistance, capacitance, frequency, diode and circuit, etc.
5. Auto/Manual range
6. Pass section test, duty cycle test

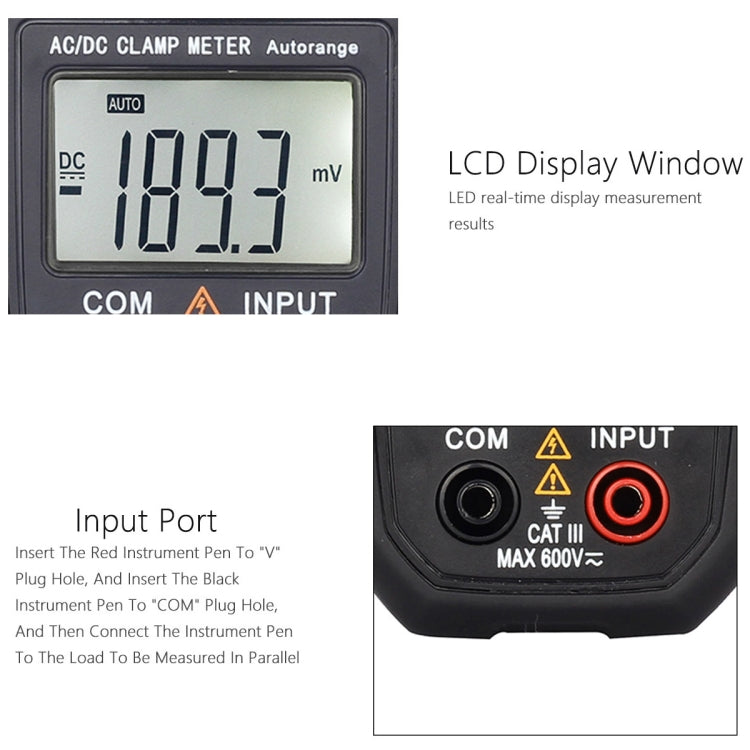

7. LCD display data
8. Clamp head lighting and backlight
9. Data retention.
10. Display 3999 word count
11. DC voltage: 400m/4V/40V/400V/600+-0.8%
12. AC voltage: 400mV+-0.8%, 4V/40V/400V/600V+-1.2%
13. Alternating current: 40A/400A+-3.0%
14. DC current: 40A/400A+-3.0%
15. Resistance: 400ohm/4kohm/40kohm/400kohm/4Mohm+-1.2%, 40Mohm+-2.0%
16. Capacitance: 40nF/400nF/4uF/40uF/100uF+-3.0%
17. Frequency: 50Hz/500Hz/5000Hz/50kHz/100kHz+-1.0%
18. Non-contact voltage detection (NCV): 90-1000V (50-500Hz)
19. Power supply: 3x1.5V, AAA battery (not included)
20 Product size: 21.5x7x2.7cm
21. Product weight: 300g
