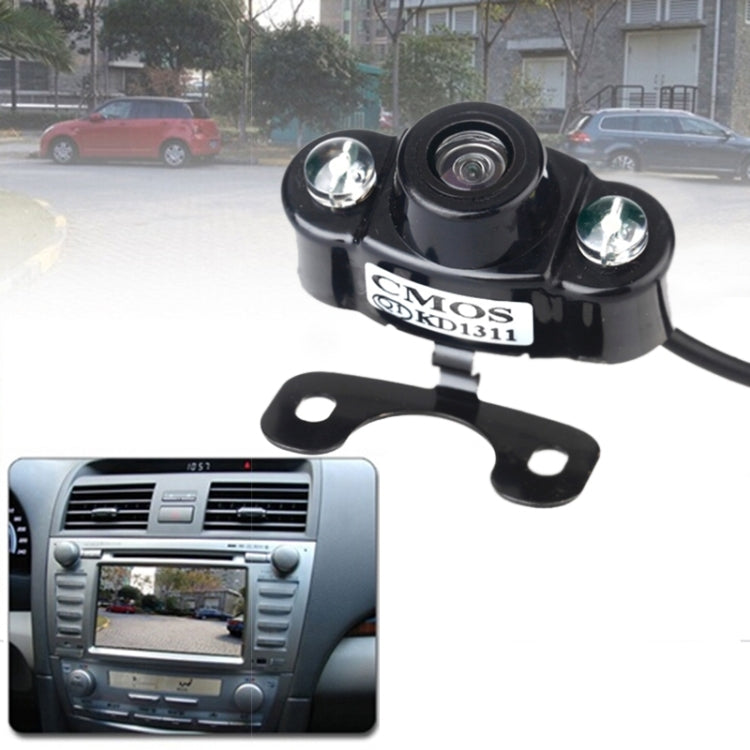

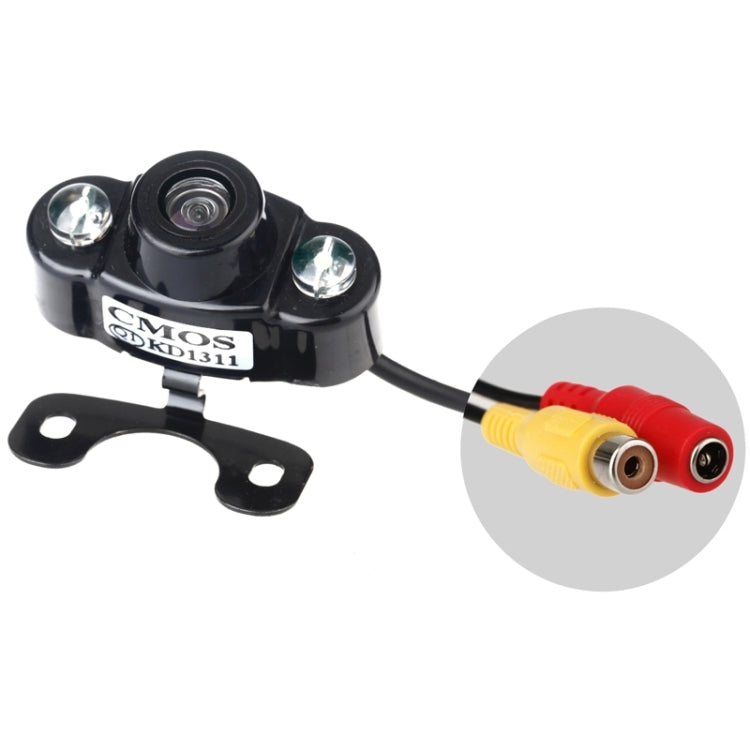

E400 Waterproof 2 LED Color CMOS/CCD Auto Car Rear View Camera for Security Backup Parking, E400

E400 Waterproof 2 LED Color CMOS/CCD Auto Car Rear View Camera for Security Backup Parking, E400

$9.99 USD
$9.99 USD
Sale Sold out
Shipping calculated at checkout.
Option
Features
1. 1/3 color CMOS image sensors
2. PAL/NTSC format
3. Pixel: 628*582, 510*492
4. The TV line: 420, 380
5. The angle of 92/120 degree
6. Work voltage: DC 12V
7. Horizontal resolution: 420 TV lines
8. Scanning System: 2:1 interlace
9. Gamma factor: 0.45


Specification:
General
Model E400
Types Rear View Camera
Display Resolution 656 x 492 pixels
Video Output 1.0 VP-P, 75 ohm
TV System NTSC
Operating Language English, Simplified Chinese, Traditional Chinese
Voltage DC 12V
Waterproof Level IP67, IP68
Camera
Imaging Device OV7950
Lens Angle 170 Degrees, 135 Degrees
Image Sensor 1/3 color CMOS
White Balance Auto
Mini Lumination 0.1 lux (IR ON)
Shutter Speed 1/60-1/20000s
Sensing Area 4.08 mm x 3.12 mm
Environment
Working Temperature -20 - 75 Degree Celsius
Storage Temperature -40 - 85 Degree Celsius
Operating Humidity RH 95 Percent MAX
Storage Humidity RH 95 Percent MAX

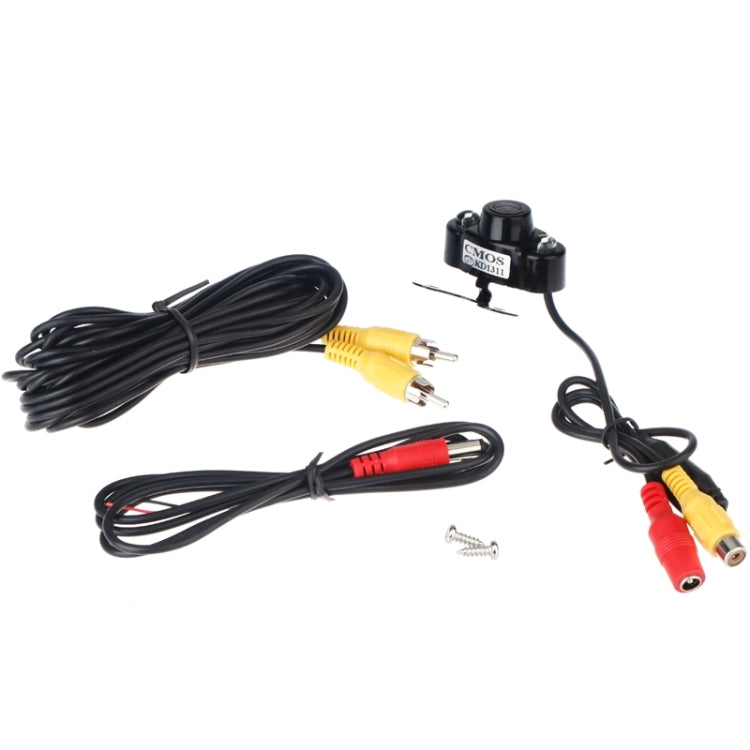

Package Include
Package Contents 1 x User Manual
1 x Car Rearview Camera

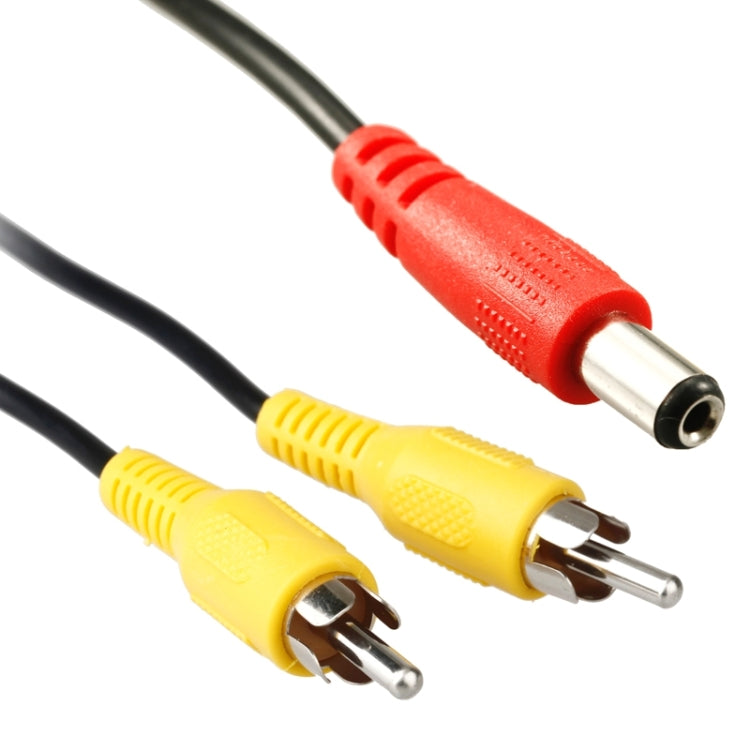

1 x Video Cable
1 x Power Cable
Package Weight
One Package Weight 0.23kgs / 0.50lb
One Package Size 13.5cm * 8.3cm * 5cm / 5.31inch * 3.27inch * 1.97inch
Qty per Carton 100
Carton Weight 23.00kgs / 50.71lb
Carton Size 46cm * 41cm * 54cm / 18.11inch * 16.14inch * 21.26inch
Loading Container 20GP: 261 cartons * 100 pcs = 26100 pcs
40HQ: 607 cartons * 100 pcs = 60700 pcs
