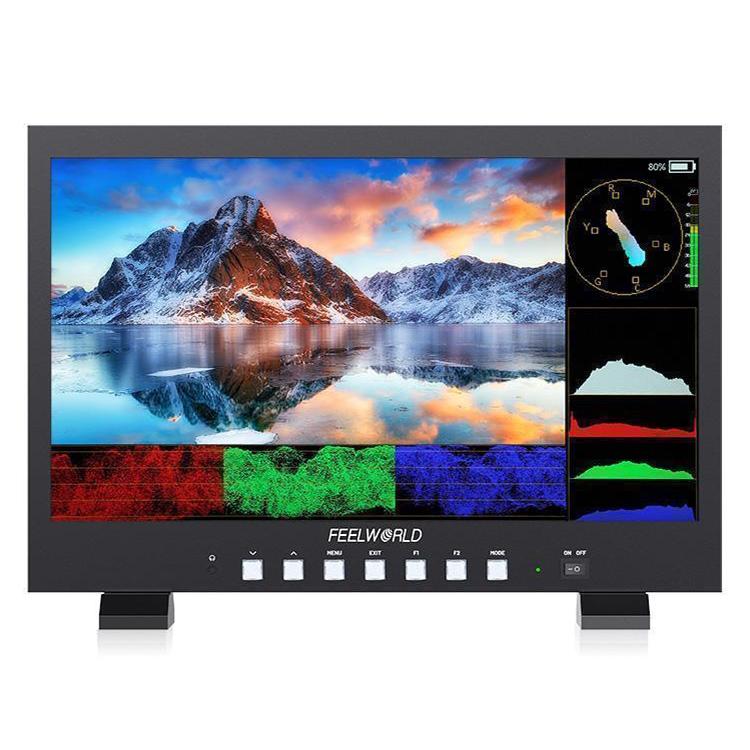

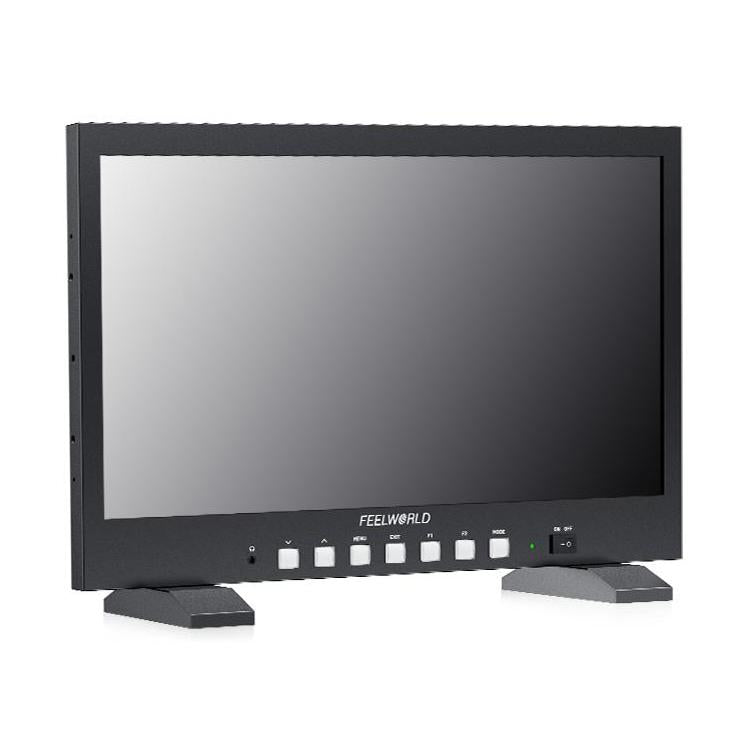

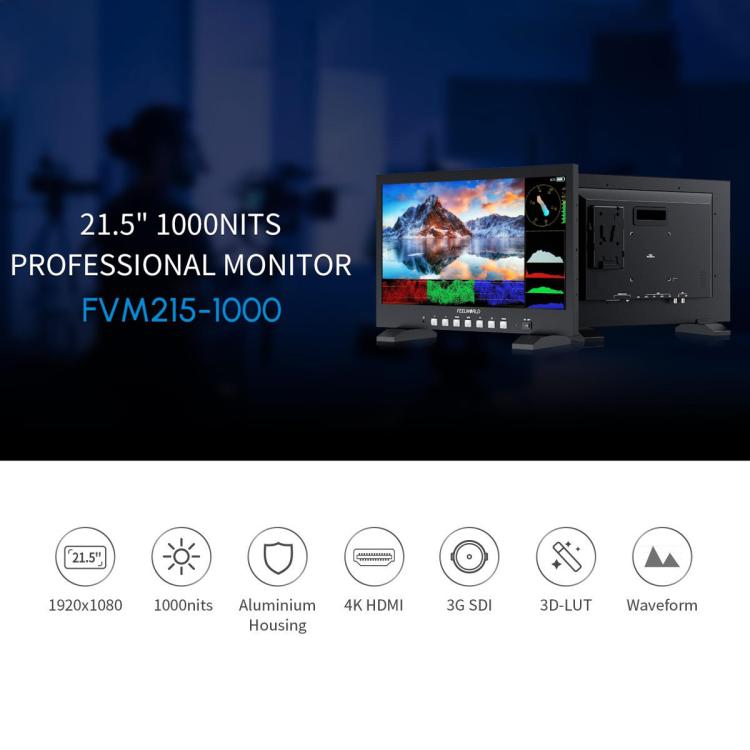

FEELWORLD FVM215-1000 21.5-inch Professional Production Broadcast Monitor High Brightness 1000nit Full HD IPS 4K 60Hz HDMI-compatible 3G-SDI Screen

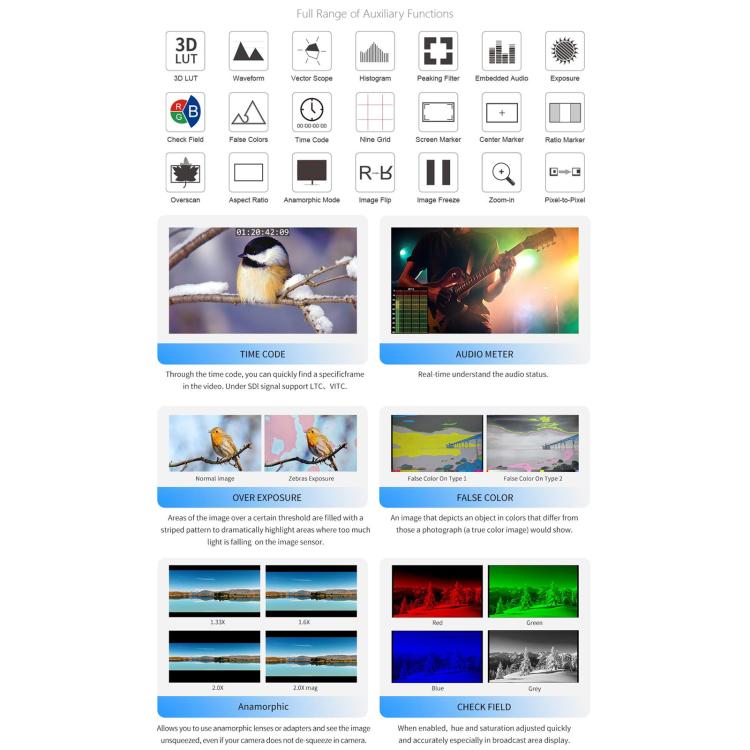

Functions:
1. Support 3D LUT Log to Rec.709, user 3D LUT Upload (up to 32)

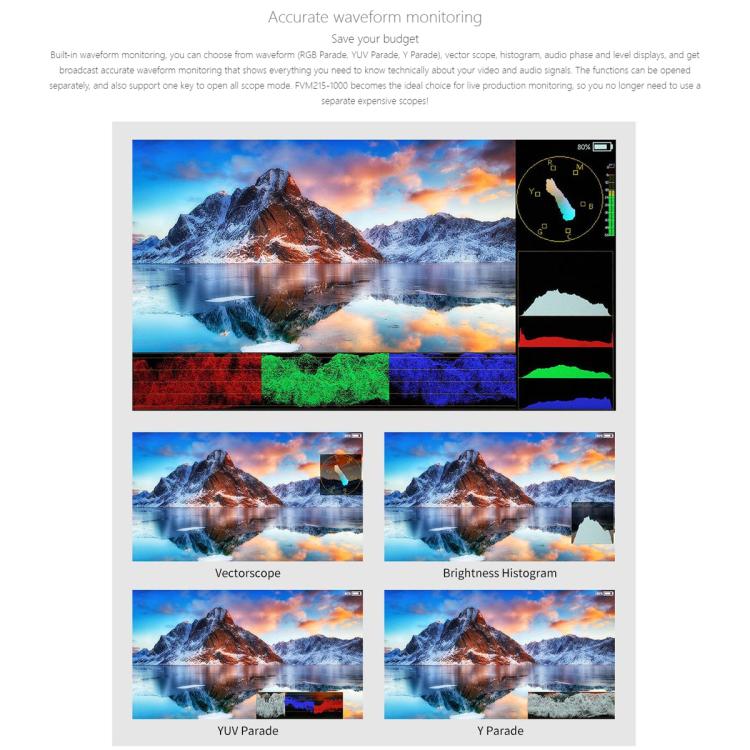

2. Waveform (RGB, YUV, Y)
3. Vector
4. Histogram (RGB,Y )
5. Embedded Audio
6. Focus Assist(Red, Green, Blue three focus colors optional; 1~10 focus level adjustable)
7. False Colors
8. Over Exposure (10IRE～100IRE adjustable)
9. Check Field (Red, Green, Blue, Mono)
10. Time Code--under SDI signal (LTC, VITC)
11. Nine Grid
12. Anamorphic Mode (1.33x, 1.6x, 2.0x, 2.0x mag, User. Under User, you can custom adjust nx 1.20x~2.00x)
13. Image Flip (H Flip, V Flip, H_V Flip )
14. Image Freeze
15. Center Marker
16. Safety Frames (80%, 85%, 90%, 93%, 96%, 2.35:1)
17. Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
18. Ratio Marker(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
19. Marker Color (Red, Green, Blue, Black, White, Gray)
20. Zoom Mode (2X, 4X, 9X, 16X, User. Under User, you can adjust 100%~200%)
21. Pixel to Pixel

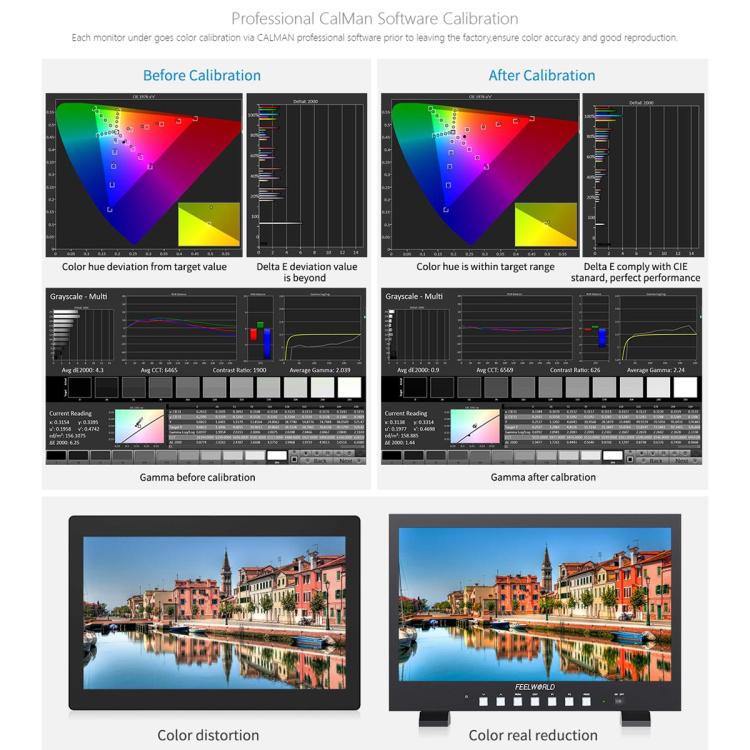

22. Color Temp.(5600K, 6500K, 9300K, User. Under User, the red, green, and blue values of the image can be adjusted 0~255)

Specifications:
Display Spec.
1. Model: FVM215-1000

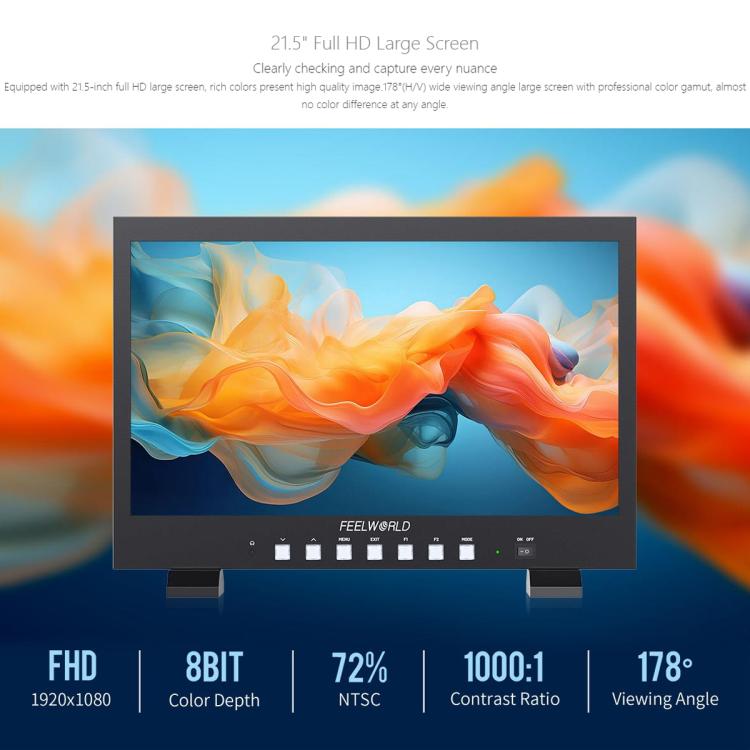

2. Screen Size: 21.5 inch IPS
3. Resolution: 1920x1080 pixels
4. Pixel Pitch: 0.24795 (H) x 0.24795 (V) (mm)
5. Color Depth: 8bit
6. Color Gamut: 72% NTSC
7. Aspect Ratio: 16:9

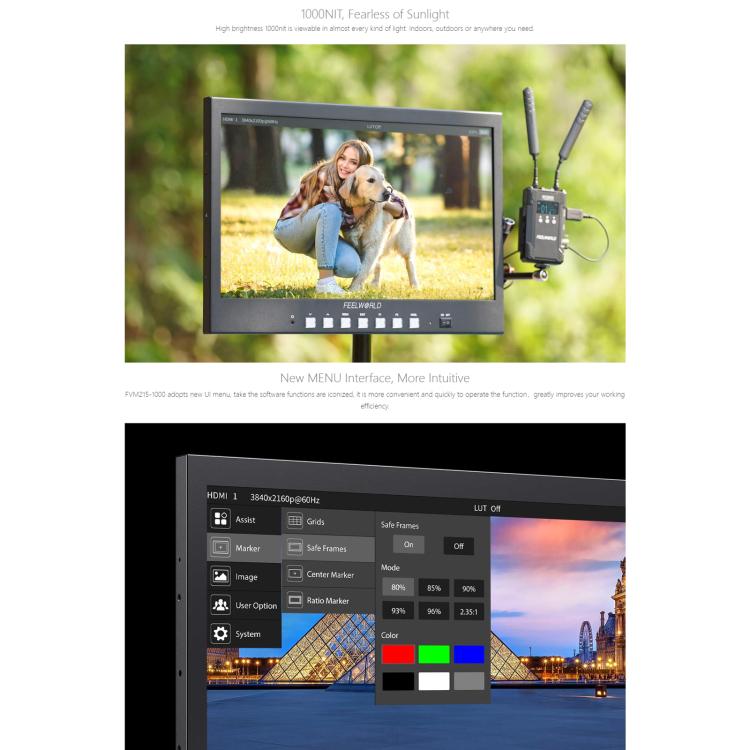

8. Brightness: 1000cd/m2
9. Contrast Ratio: 1000:1
10. Backlight: LED
11. Viewing Angle: 89 degree /89 degree (L/R) 89 degree /89 degree (U/D)

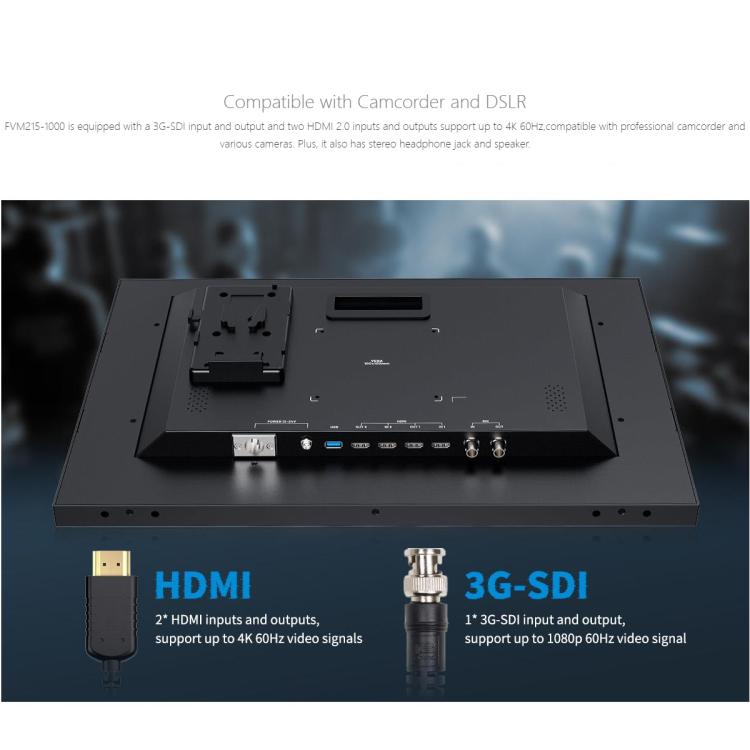

Input

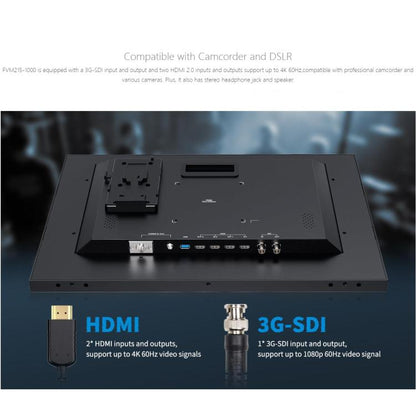

1. 1 x SDI: 3G-SDI
2. 2 x HDMI-compatible: HDMI-compatible 2.0
3. 1 x USB: USB-A (LUT file import and Firmware update)

Output
1. 1 x SDI: 3G-SDI
2. 2 x HDMI-compatible: HDMI-compatible 2.0

Audio
Audio: 3.5mm Stereo Headphone

3G-SDI Input and Output Support Format
1. 720p (60/59.94/50/30/29.97/25/24/23.98)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI-compatible Input and Output Support Format
1. 720p (60/59.94/50/30/29.97/25/24)
2. 1080i (60/59.94/50)
3. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98)
4. 4K 3840x2160p (60/50/30/29.97/25/24/23.98)
5. 4K 4096x2160p(24/23.98)

General

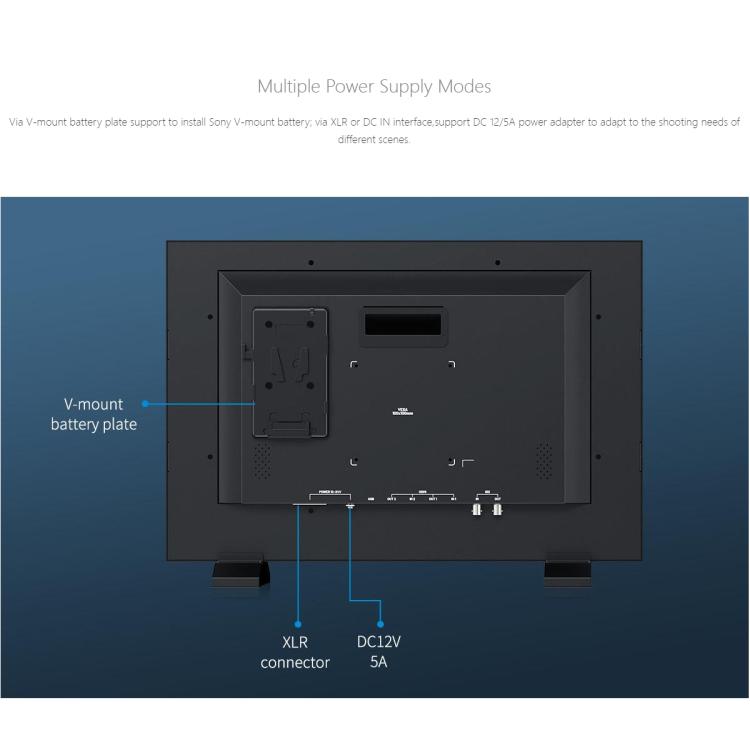

1. Power Connector: DC IN, XLR
2. Input Voltage: DC12～24V
3. Power Consumption: Less than 52W
4. Working Temperature: 0 degree C~50 degree C
5. Storage Temperature: -20 degree C~60 degree C

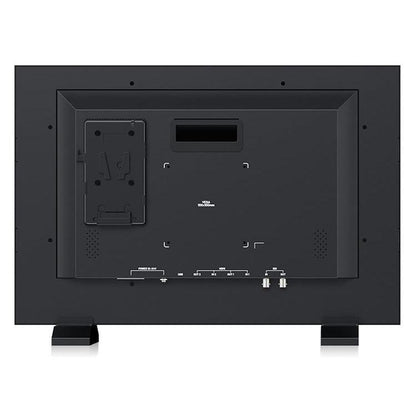

6. Battey Plate: V-mount battery plate

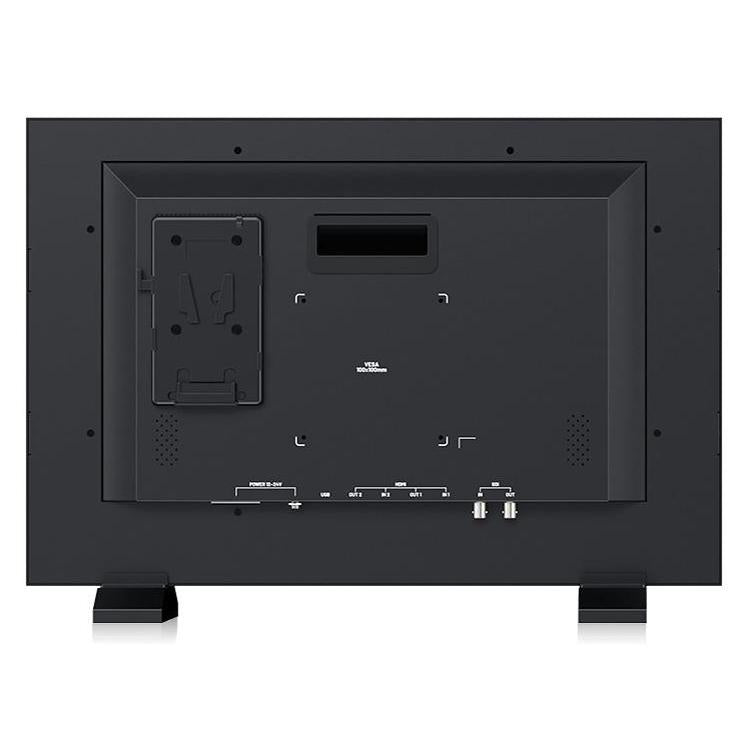

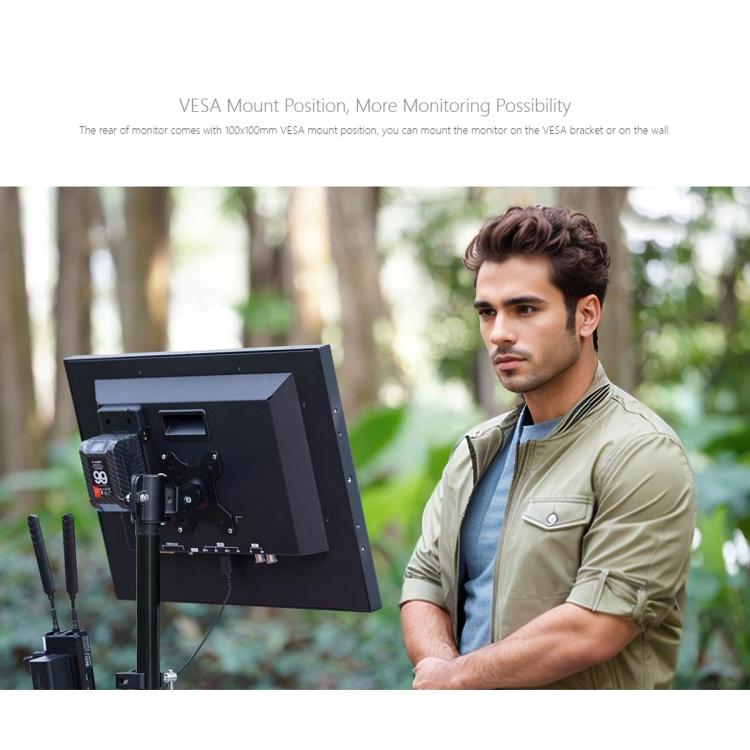

7. VESA Size: 100x100mm
8. Unit Size: 511.6x345x21.8(mm)
9. Unit Weight: 4.275kg

Packaging List:
1. Monitor x 1
2. SDI Cable x 1
3. Micro HDMI-compatible Cable x 1
4. HDMI-compatible Cable x 1
5. 5A Power Adapter x 1
6. V-mount Battery Plate (default to mount on the monitor) x 1
7. Manual x 1
