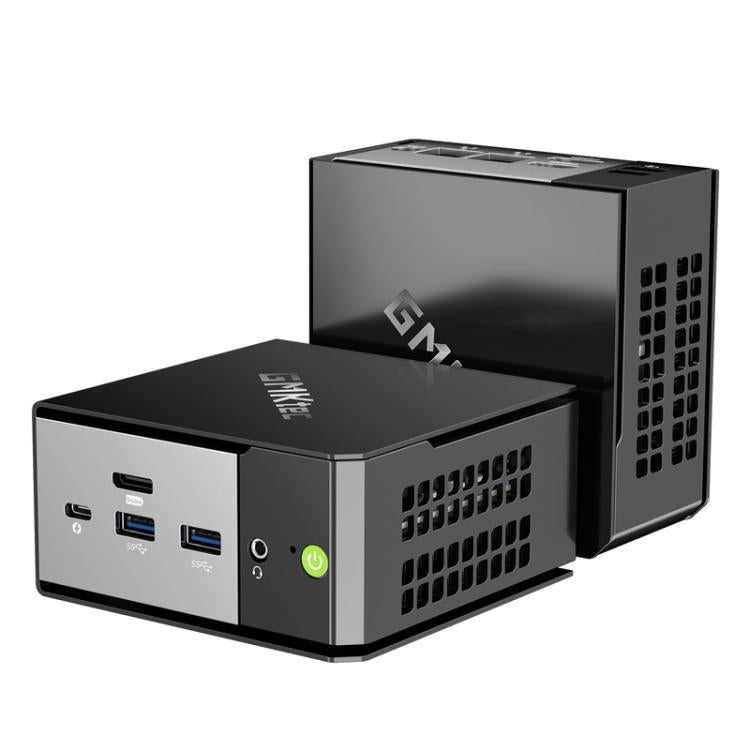

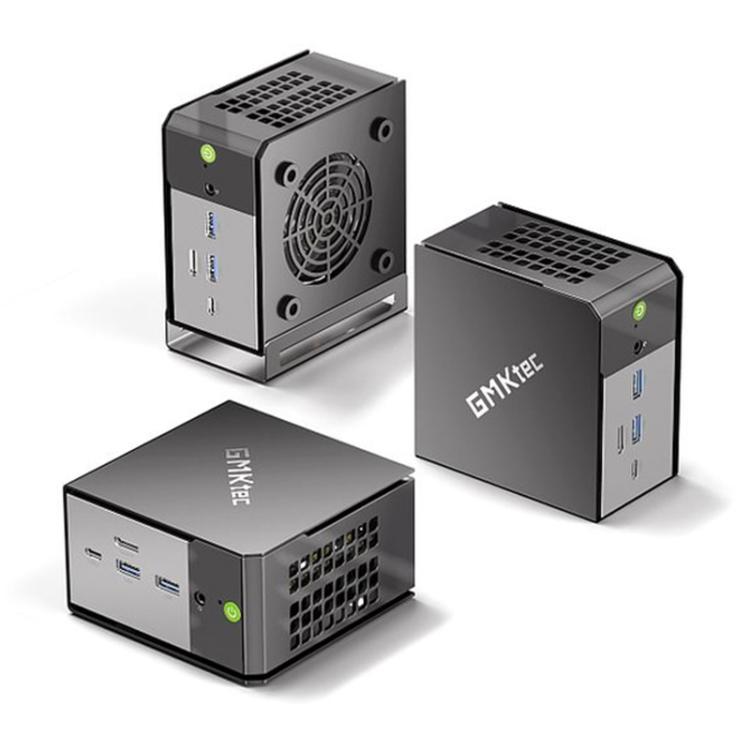

GMKtec EVO-X1 AI Mini PC, AMD Ryzen AI 9 HX 370, Radeon 890M, Oculink Port

1. Model Number: EVO-X1
2. CPU: AMD Ryzen AI 9 HX 370, Ryzen AI 300 Series, 12C/24T, TSMC 4nm FinFET，MAX5.1G; 12 MB L2 Cache/24 MB L3 Cache; TDP15~54W (TDP Max 65W)
3. GPU: AMD Radeon 890M (16 Cores 2900MH); Memory: Default is auto, can be manually allocated in BIOS.
4. AI NPU: NPU adopts the new XDNA 2 architecture, with a computing power of 50 TOPS
5. RAM+ ROM: LPDDR5X 32GB 7500MHz (8GB x 4) + 1TB PCIe 4.0 M.2 2280 SSD
6. Storage Expansion: MAX 6TB x 3 (Support 2280 x 2 nVMEX4 SSD PCIE GEN4 X4). (Supports 3 M.2 hard drives, The one closest to the outermost part of the shell: SATA 2242, The one closest to the middle and the edge: PCIE 2280)
7. Video Output: HDMI-compatible+DP+USB4 x 1 Output, Max support 7680x4320 60Hz
8. Internet:
WiFi 6: AX200
Wifi Speed: Max 2.4Gbps
BT: BT5.2
9. Power Supply:
Battery: Internal Button Battery
Adapter: DC IN 19V 6.32A 120W

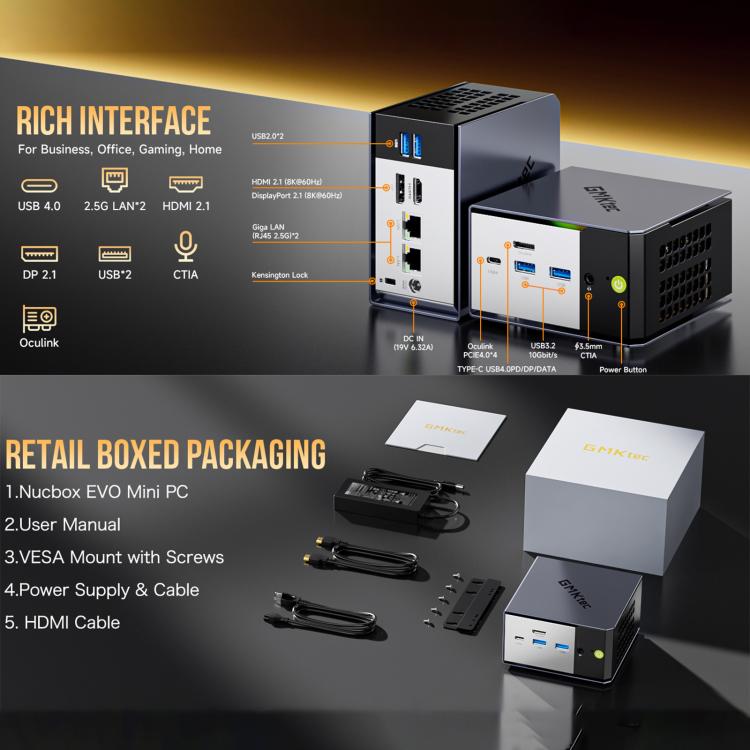

10. Interface:
USB-A: USB3.2 (Gen2) x 2; (Front 2, speed 10Gbit/s)
USB-A: USB3.2 x 2; (Rear 2, speed 10Gbit/s)
Video Output: HDMI-compatible 2.1 (4K 60Hz) x 1 (8K: HDMI-compatible supports up to 60Hz(monitor refresh rate set to 240); 8K 120Hz (Monitor set to 120 refresh rate); 4K: HDMI-compatible/DP supports up to 60Hz, 120 refresh rate; 2K: HDMI-compatible supports up to 144Hz))
DP Output: DisplayPort 2.0 (4K 60Hz) x 1 (Maximum support 7680x4320, 60HZ, 240Hz refresh rate)

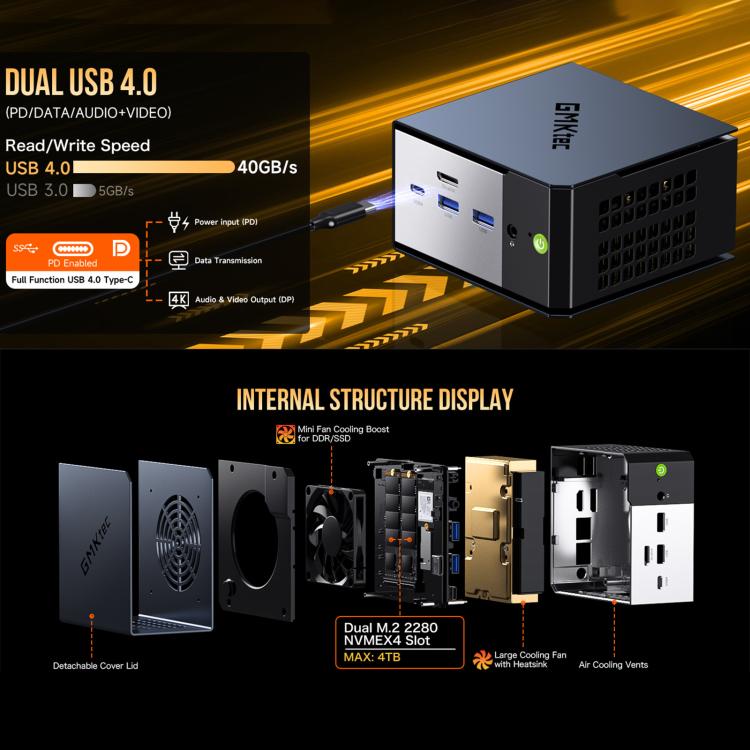

TYPE-C: USB4 x 1, support USB4=40GB/S support PD3.0/DP1.4/USB 3.2 10GB/S (Full Function)
Audio: 3.5mm, CTIA
Charging port: DC IN 5525
Ethernet port: Giga LAN(RJ45) x 2, 2.5G
Oculink: PCIE GEN4 x 4 (The Oculink port does not support hot plugging, so please plug and unplug when the power is off. Plugging and unplugging when the power is on may damage the motherboard.)
DMIC: Onboard DMIC digital microphone chip
TF: Not support
11. Keyboard : Support external connection
12. Indicator Light: Power indicator White
13. Interaction Mode: Keyboard and mouse input
14. Operating System: Support WINDOWS 11 pro/linux
15. Support Language: Default English (Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Kor., Japanese, German, Hebrew, Russian, Portuguese, Arabic)
16. Battery Life: External power source
17. System Setting: Press power button to power on
18. Situational Application: Personal home/small and medium-sized enterprises/intelligent manufacturing/creative design/smart retail/medical/education/live broadcast, etc
19. Standard: User Manual, Warranty card, Power adapter, VASA bracket, HDM-compatible cable
