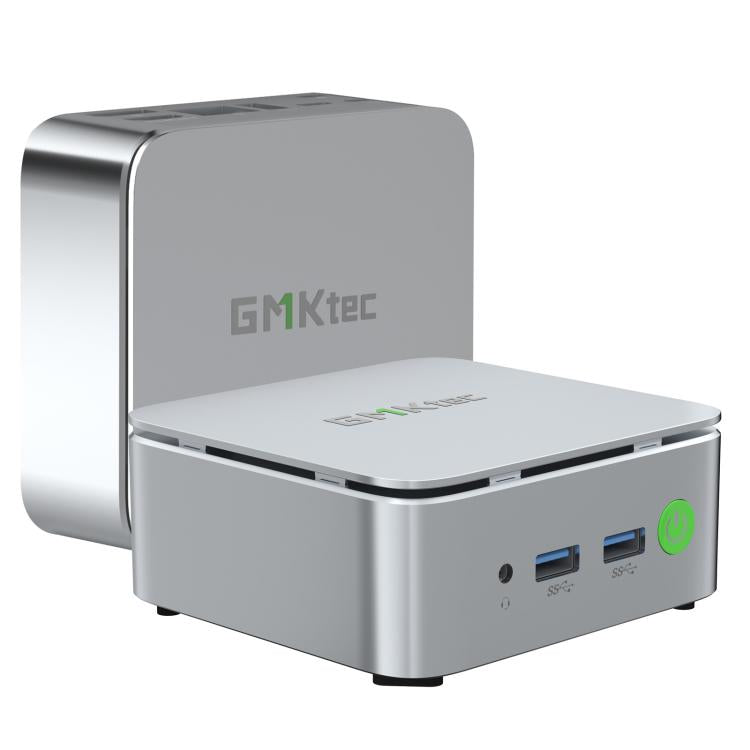

GMKtec NucBox G10 Mini PC, AMD Ryzen 5 3500U, Windows 11 Pro, WiFi, BT, HDTV, DisplayPort
GMKtec NucBox G10 Mini PC, AMD Ryzen 5 3500U, Windows 11 Pro, WiFi, BT, HDTV, DisplayPort
Regular price
$296.94 USD
Regular price
Sale price
$296.94 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
1. CPU: AMD Ryzen3000 Series; Quad-Core Eight-Thread, 12nm Process, Max Turbo 3.7GHz, 4MB L3 Cache, TDP 25W (MAX 35W)
2. CPU Model: AMD Ryzen 5 3500U
3. CPU Socket/Package: FP5
4. GPU: Radeon Vega 8 Graphics (1200MHz)
5. Graphics Cores: 8

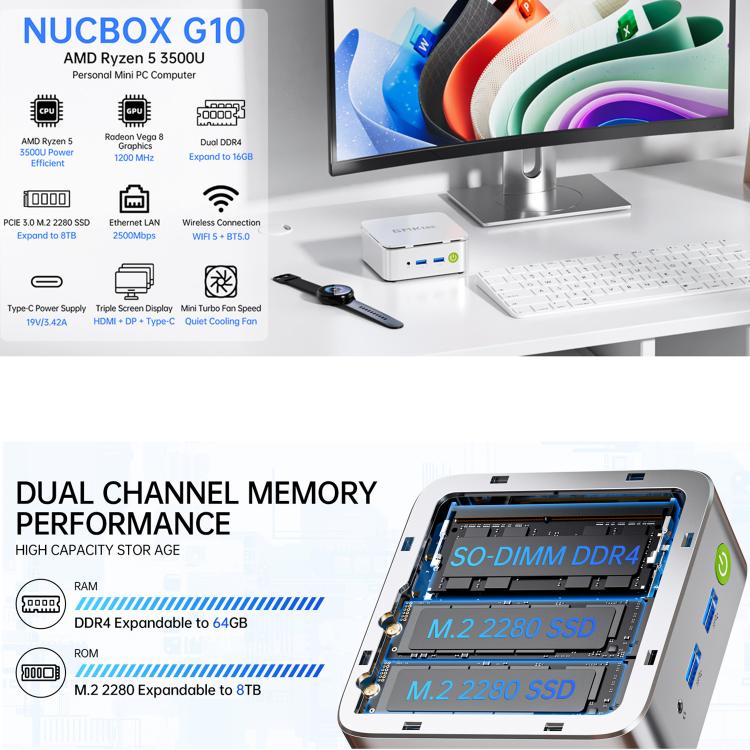

6. Memory: 2 x DDR4 SO-DIMM 16GB, 2400 MT/s (up to 64GB)
7. Storage: 2 x M.2 2280 PCIe3.0x4 SSD 512G/1TB
8. Built-in Storage Expansion: M.2 2280 PCIe expansion, supports up to 8TB per drive, total expansion up to 16TB (not included)
9. Graphics Output: Triple output via HDMI-compatible/DP/Type-C, supports up to 8K resolution (DP interface)
10. Network: WiFi 5 (Realtek RTL8822CE, up to 866.7Mbps), Bluetooth 5.0, Gigabit LAN (supports 2500M/1000M/100M/10M, Realtek 8125BG)
11. Power: Built-in coin cell battery; Charger: Type-C, 19V/3.42A (supports both PD and non-PD chargers)

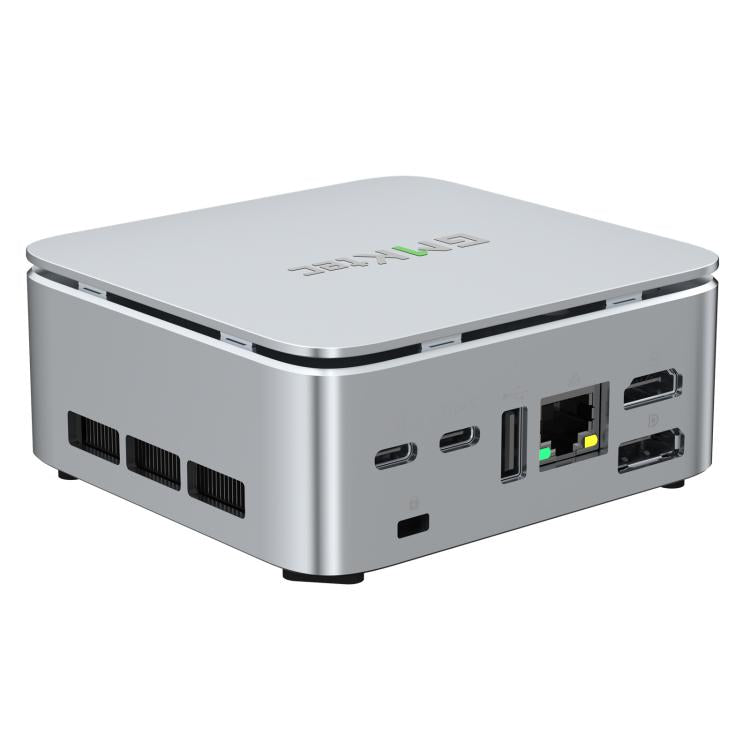

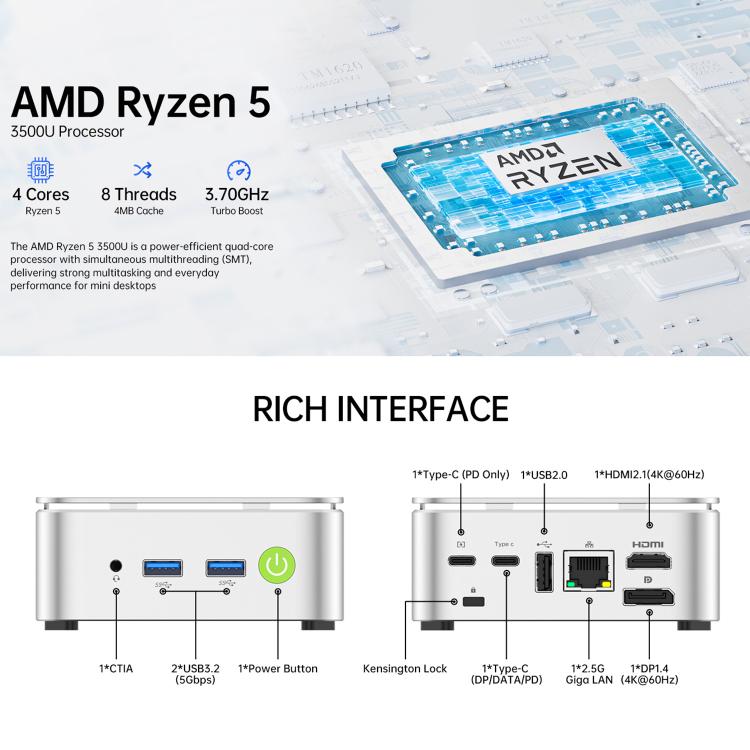

12. External Ports:
USB-A: 2x USB 3.2 Gen1 (5Gbps) + 1×USB 2.0
Type-C: 1 (DP1.4 4K 30Hz + USB3.2 Gen1 + PD) + 1 (PD only)
HDTV: 1 x Standard HDMI2.1 TMDS 4K60Hz
DisplayPort: 1x DP1.4 (4K60Hz)
Audio: 3.5mm CTIA
RJ45: 1 (Gig LAN)
Power Key
13. Dimensions: 103 x 98 x 42mm
14. Operating System: Windows 11 Pro
15. Language Support: 14 languages (Default English; Support Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic)
16. Packaging List: User Manual, Warranty Card, Power Adapter, VESA Stand, HDMI-compatible Cable
Features:
1. High-Performance AMD R5 Mini PC: Compact powerhouse with a stylish and refined design.
2. Benchmark Score 500,000+: Strong performance proven by Lu Master test results.
3. Ultra-Compact & Portable: Volume is only 1/50 of a traditional desktop, and weight is just 1/25, making it easy to carry while still offering full-featured performance.
4. Dual M.2 2280 Expansion: Flexible storage upgrade options for enhanced capacity and speed.
5. Triple 4K Display Output: Support HDMI-compatible, DP, and Type-C connections for multi-screen setups across different scenarios.
6. High-Speed Networking: Equipped with WiFi 5 (866Mbps) and a 2.5G wired LAN card for faster, more stable data transmission.
7. VESA Mount Design: Convenient mounting solution for flexible workspace arrangements.
2. CPU Model: AMD Ryzen 5 3500U
3. CPU Socket/Package: FP5
4. GPU: Radeon Vega 8 Graphics (1200MHz)
5. Graphics Cores: 8
6. Memory: 2 x DDR4 SO-DIMM 16GB, 2400 MT/s (up to 64GB)
7. Storage: 2 x M.2 2280 PCIe3.0x4 SSD 512G/1TB
8. Built-in Storage Expansion: M.2 2280 PCIe expansion, supports up to 8TB per drive, total expansion up to 16TB (not included)
9. Graphics Output: Triple output via HDMI-compatible/DP/Type-C, supports up to 8K resolution (DP interface)
10. Network: WiFi 5 (Realtek RTL8822CE, up to 866.7Mbps), Bluetooth 5.0, Gigabit LAN (supports 2500M/1000M/100M/10M, Realtek 8125BG)
11. Power: Built-in coin cell battery; Charger: Type-C, 19V/3.42A (supports both PD and non-PD chargers)
12. External Ports:
USB-A: 2x USB 3.2 Gen1 (5Gbps) + 1×USB 2.0
Type-C: 1 (DP1.4 4K 30Hz + USB3.2 Gen1 + PD) + 1 (PD only)
HDTV: 1 x Standard HDMI2.1 TMDS 4K60Hz
DisplayPort: 1x DP1.4 (4K60Hz)
Audio: 3.5mm CTIA
RJ45: 1 (Gig LAN)
Power Key
13. Dimensions: 103 x 98 x 42mm
14. Operating System: Windows 11 Pro
15. Language Support: 14 languages (Default English; Support Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic)
16. Packaging List: User Manual, Warranty Card, Power Adapter, VESA Stand, HDMI-compatible Cable
Features:
1. High-Performance AMD R5 Mini PC: Compact powerhouse with a stylish and refined design.
2. Benchmark Score 500,000+: Strong performance proven by Lu Master test results.
3. Ultra-Compact & Portable: Volume is only 1/50 of a traditional desktop, and weight is just 1/25, making it easy to carry while still offering full-featured performance.
4. Dual M.2 2280 Expansion: Flexible storage upgrade options for enhanced capacity and speed.
5. Triple 4K Display Output: Support HDMI-compatible, DP, and Type-C connections for multi-screen setups across different scenarios.
6. High-Speed Networking: Equipped with WiFi 5 (866Mbps) and a 2.5G wired LAN card for faster, more stable data transmission.
7. VESA Mount Design: Convenient mounting solution for flexible workspace arrangements.
