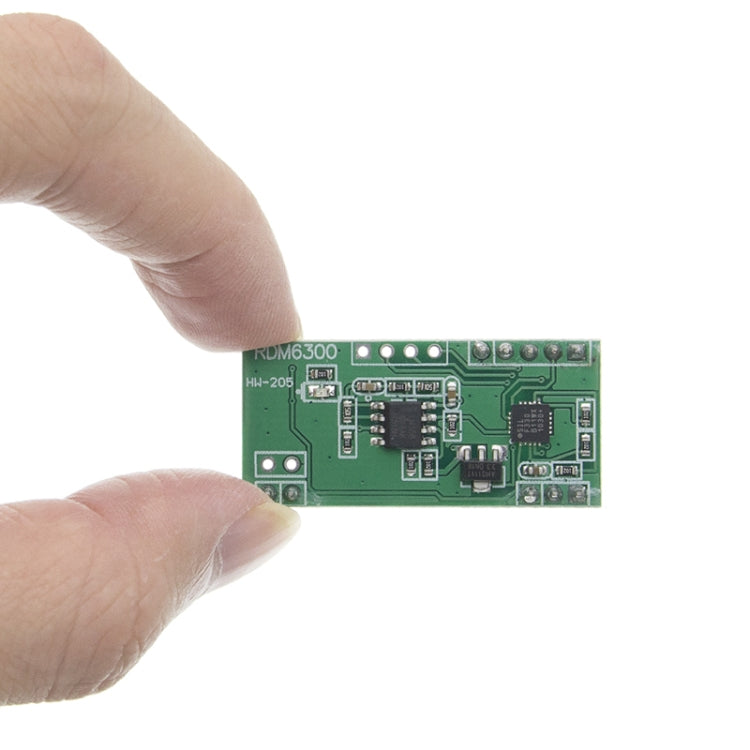

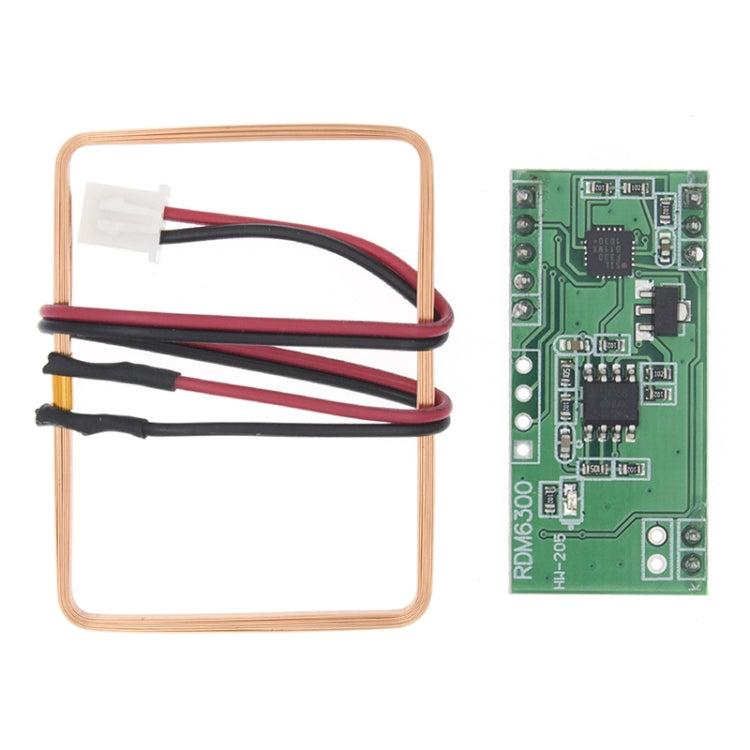

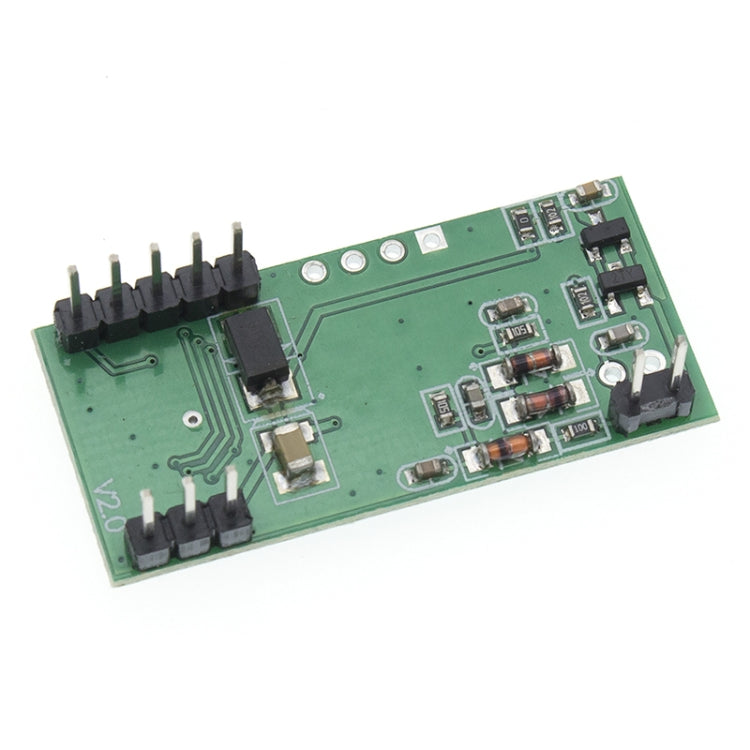

HW-205 RDM6300 125kHz Serial Port Reading RFID Card Module

Name: HW-205 RDM6300 125kHz Serial Port Reading RFID Card Module
Brand: ORIWHIZ
SKU: TBD0572172301A
Price: 7.95 USD
Availability: InStock

$7.95 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

1. Interface: TTL level RS232 format
2. Purpose: experiment
3. Card reading distance: below 5CM
4. Application: smart home
5. Weight: about 10g
6. Coil inductance: 47~68uH
7. Frequency: 125KHz
8. Working voltage: DC 5V
9. Working current: less than 50 mA
10. Working temperature: -10 to 70 degrees Celsius
11. Storage temperature: -20 to 80 degrees Celsius

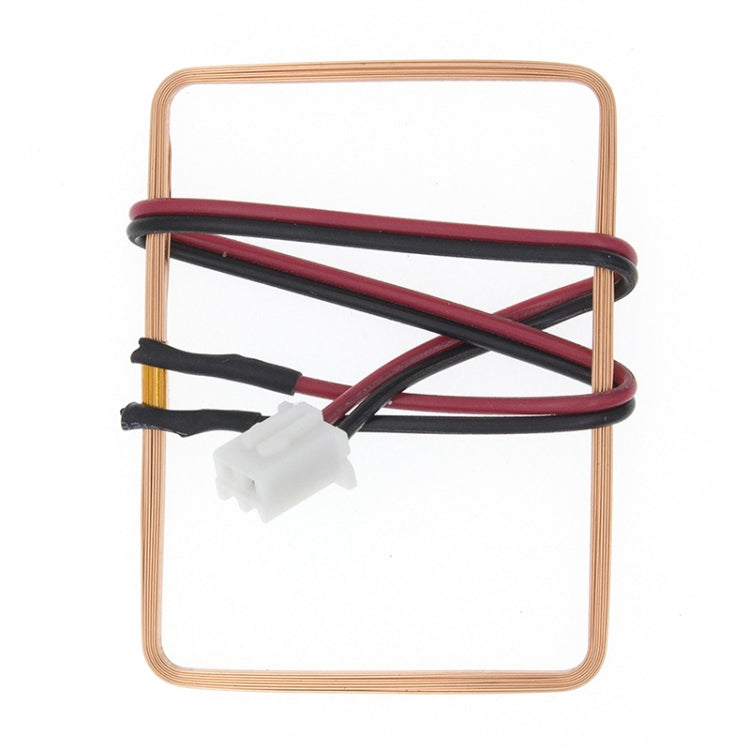

12. Coil size: 46x32x3mm

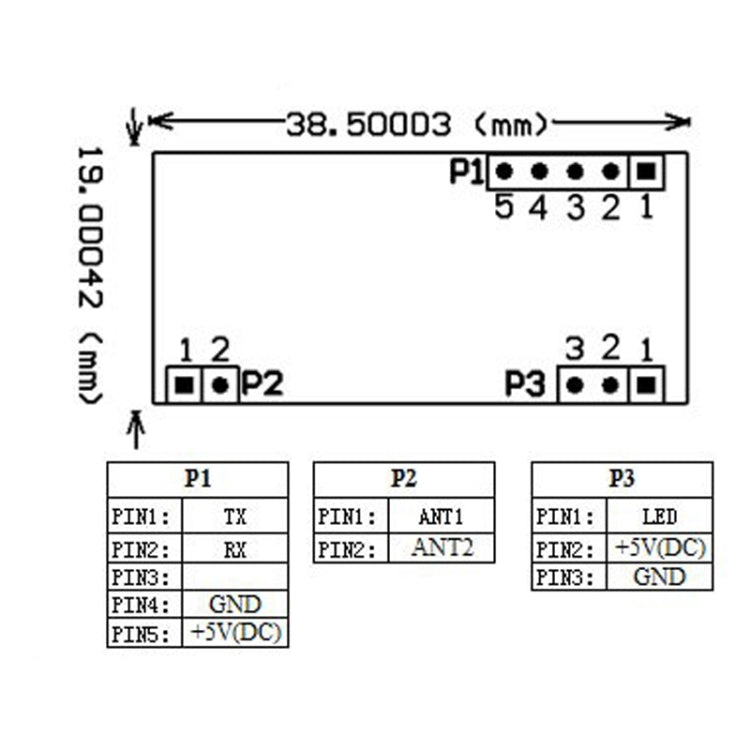

13. Module size: 38.5x19x9mm

Specification:

Package Weight

One Package Weight

0.03kgs / 0.07lb

One Package Size

10cm * 5cm * 2cm / 3.94inch * 1.97inch * 0.79inch

Qty per Carton

200

Carton Weight

7.00kgs / 15.43lb

Carton Size

42cm * 32cm * 32cm / 16.54inch * 12.6inch * 12.6inch
