Specifications:

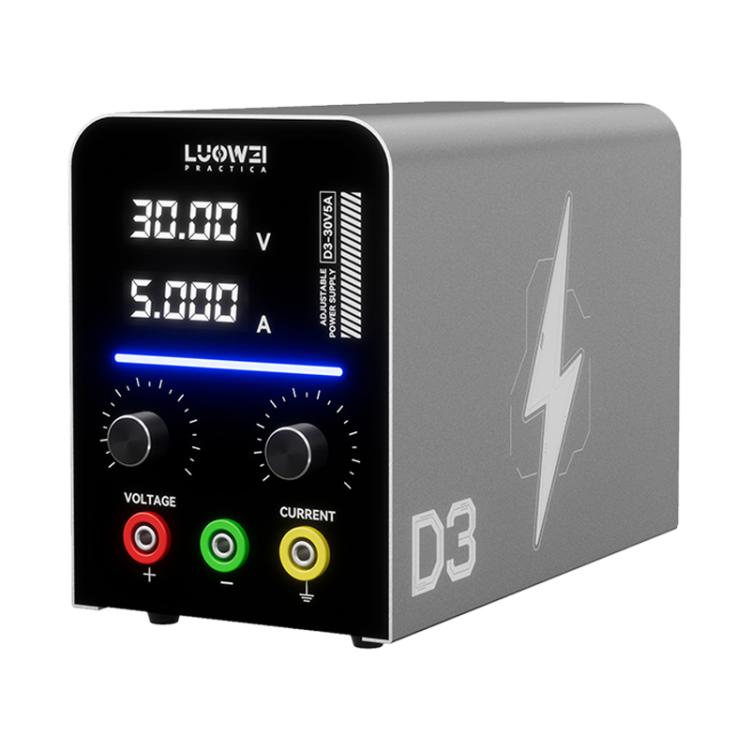

1. Model: LW-D3
2. Input Power: AC 110V/220V
3. Output Voltage Range: DC-30V(Continuously Adjustable, Adjustment Accuracy +-0.01V)
4. Output Current Range: 0-5A(Continuously Adjustable, Rated Current 5A, Peak Current 6A)
6. Output Power: Rated Power 150W
7. Voltage Regulation Accuracy: Load Regulation <=0.01%+2mv, Voltage 8. Stability <=0.01%+3mv
9. Weight: 4.3kg(Net)

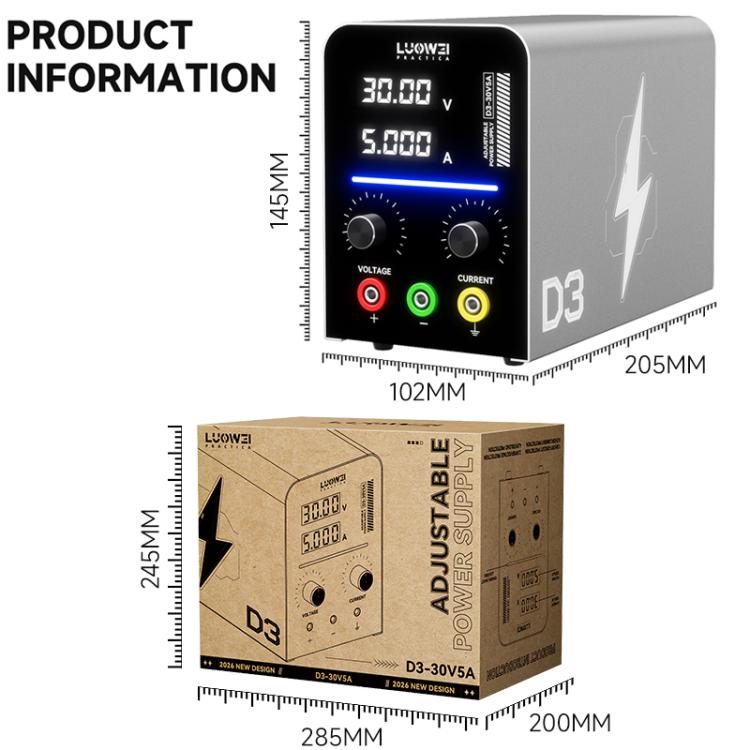

10. Product: 10.2 x 20.5 x 14.5cm
Features:

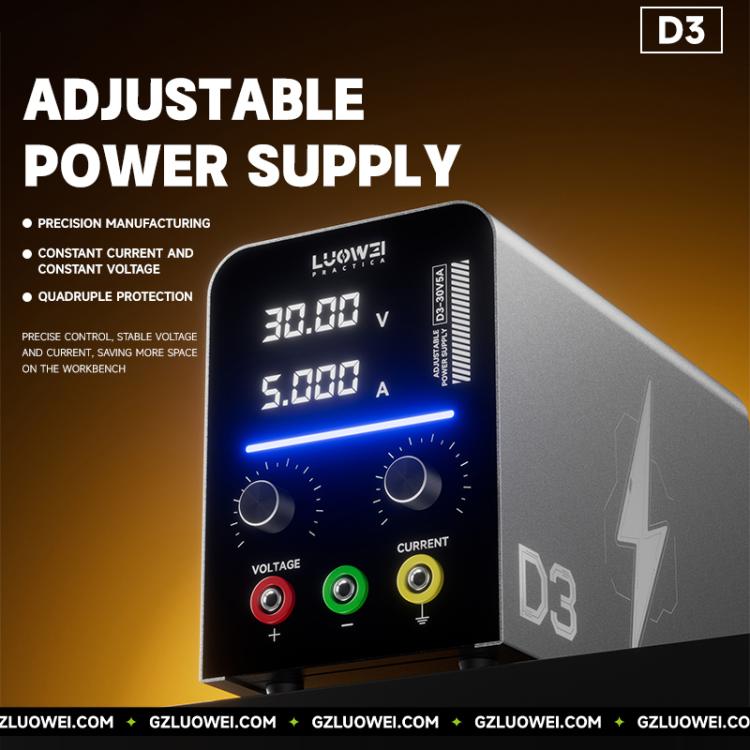

1. D3 adjustable power supply, precision manufacturing, constant current and constant voltage, quadruple protection
2. Independent output, switch stable output: Stable voltage and current output, excellent performance indicators

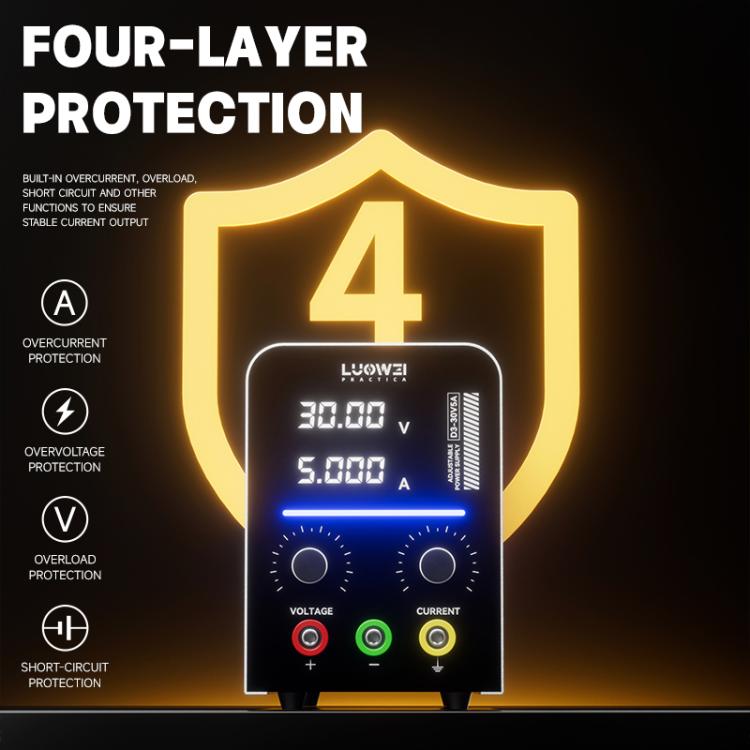

3. Four-layer protection: Built-in over-current, overload, short circuit, and other functions to ensure stable current output
4. Precise control, stable voltage and current, saving more space on the workbench

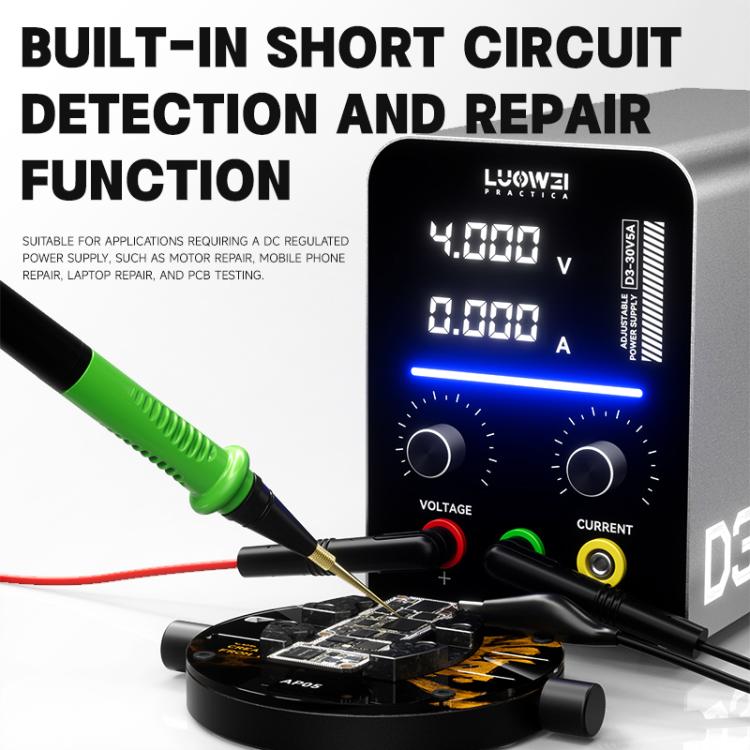

5. Built-in short circuit detection and repair function: Suitable for applications requiring a DC regulated power supply, such as motor repair, mobile phone repair, and laptop repair.and PCB testing
Specification:
| Package Weight |
| One Package Weight |
5.00kgs / 11.03lb |
| One Package Size |
30cm * 21cm * 26cm / 11.81inch * 8.27inch * 10.24inch |
| Carton Weight |
5.00kgs / 11.02lb |
| Carton Size |
30cm * 22cm * 27cm / 11.81inch * 8.66inch * 10.63inch |
| Loading Container |
20GP: 1496 cartons * 1 pcs = 1496 pcs
40HQ: 3473 cartons * 1 pcs = 3473 pcs
|
|
