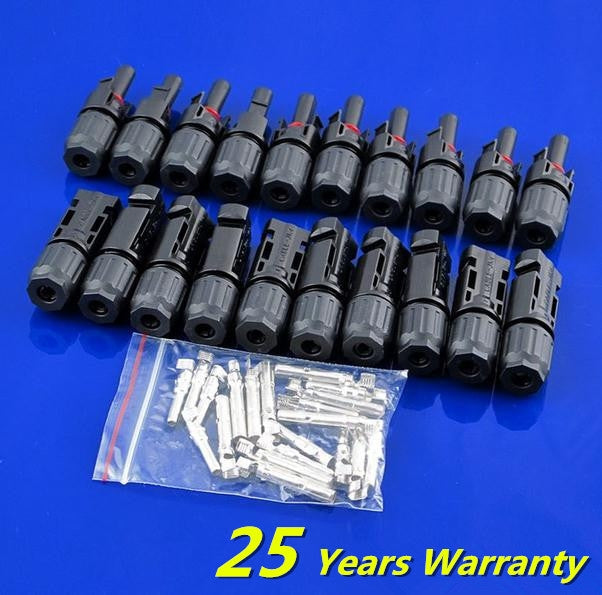

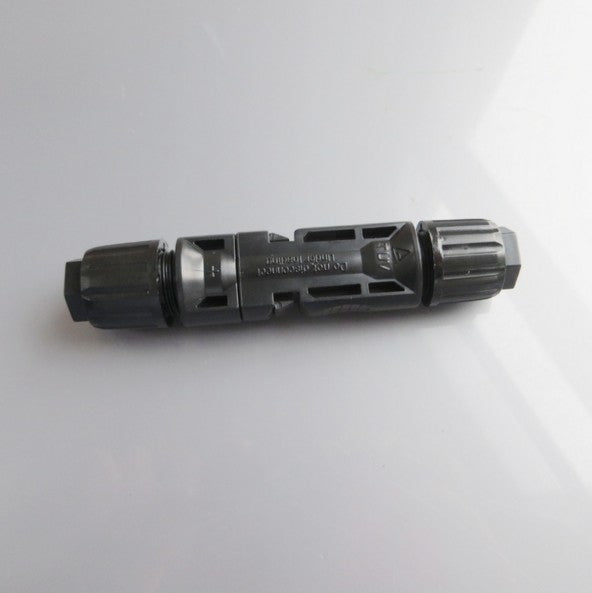

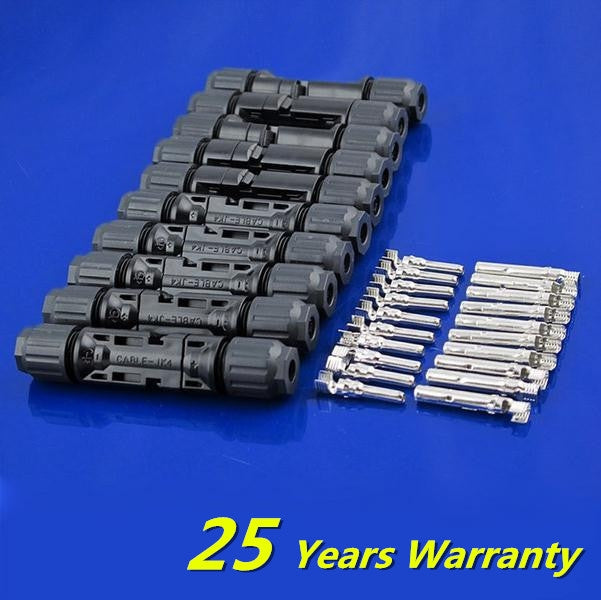

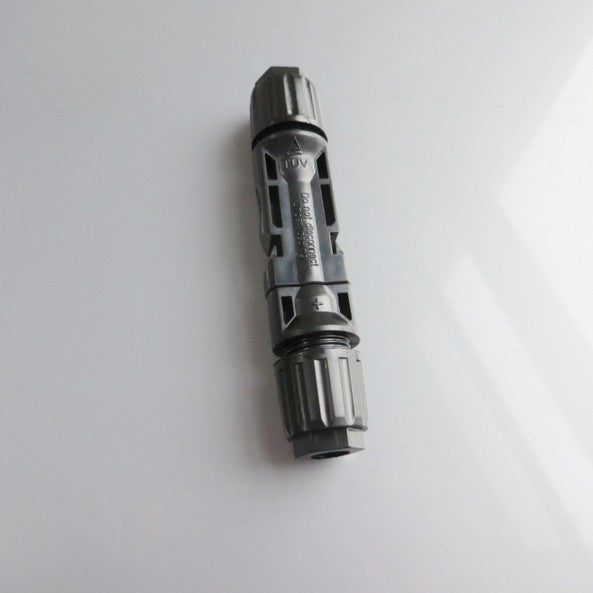

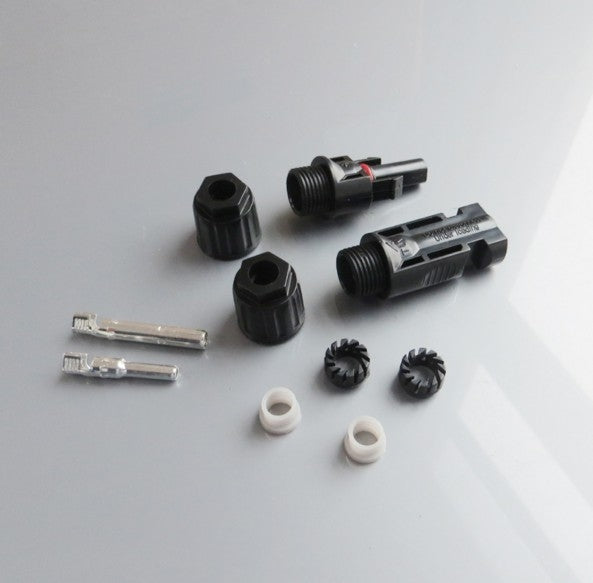

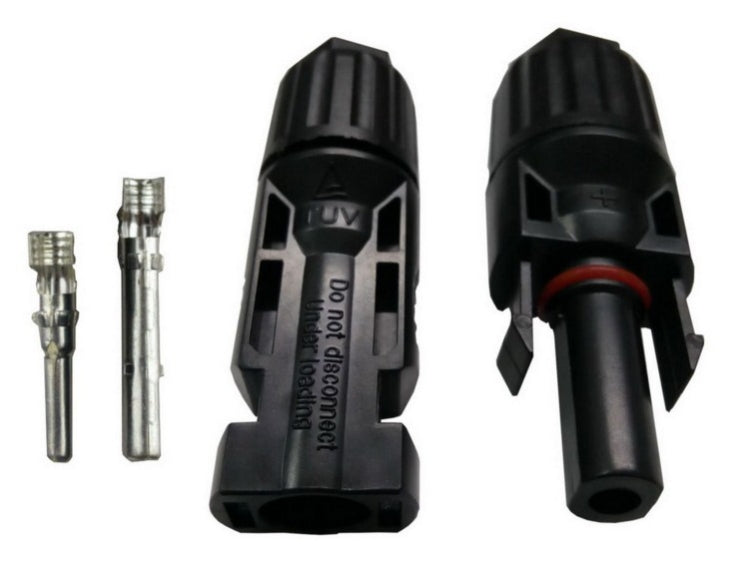

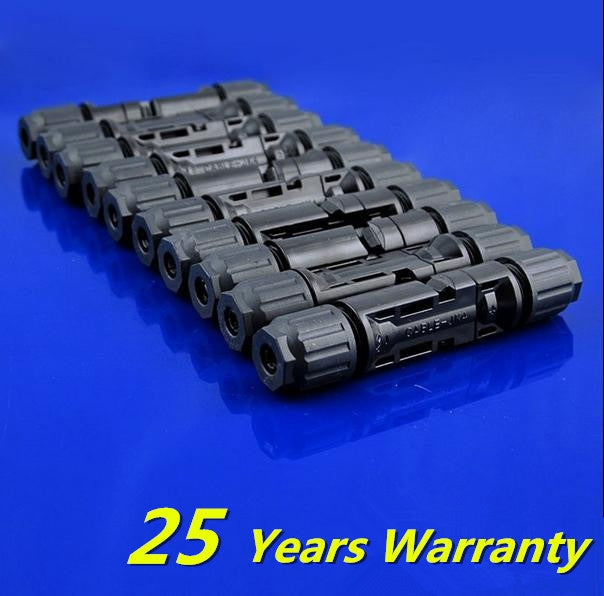

MC4 Connector male female 30A 1000V Solar Panel Branch Series

Name: MC4 Connector male female 30A 1000V Solar Panel Branch Series
Brand: ORIWHIZ
SKU: TBD051384801A
Price: 1.01 USD
Availability: InStock

$1.01 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Model Number:EU
Connection:Plug In
Output Type:DC
Brand Name:ZOORUI
Usage:Electric Tool
Output voltage:DC1000V
Usage:solar

Specification
Product No:MC4
Rated Voltage TUV 1000V DC / UL 600V DC
Rating Current 20A-30A
Suitable cable cross sections 2.5mm2-6.0mm2 / 14AWG-10AWG
Pin dimension:4.0mm
Proof voltage:DC 8KV(1Min)
Pollution degree: 2
Protection class: Class II
Contact Material: Copper, tin-plated
Contact Resistance: 5mW
Connector Material: PPO
Degree of Protection: IP IP67(IEC 60529)
Withdrawal Force: 50N
Insertion Force: 50N
Temperature :-40-+85degree
Flame Class: UL94V - 0

Specification:

Package Weight

One Package Weight

0.03kgs / 0.07lb

One Package Size

8cm * 5cm * 2cm / 3.15inch * 1.97inch * 0.79inch

Qty per Carton

441

Carton Weight

15.00kgs / 33.07lb

Carton Size

60cm * 38cm * 15cm / 23.62inch * 14.96inch * 5.91inch
