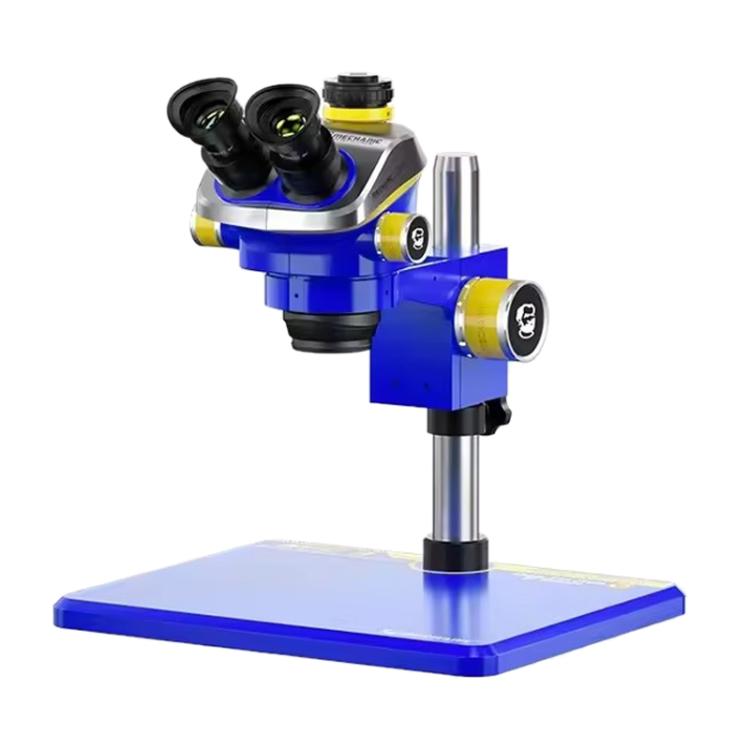

Mechanic Mic3 7X-50X CTV 0.45X Trinocular Stereo Microscope with 4K Pro Camera, Mechanic Mic3
Specification:
1. Non-adjustable eyepieces: WF10X/25MM
2. Zoom ratio: 1:7.1
3. Not adjustable eyepiece: Standard equipment: WF10X/25; high-eyepoint wide-angle eyepiece for the convenience of spectacled observers
4. Observation head: 45 degrees inclination, 360 degrees rotation, interpupillary distance 54~76mm bilateral vision adjustment+-5 diopters
5. Objective: 0.7X-5X continuous zoom, objective zoom ratio 1:7.1 to ensure image surface focus
6. Magnification: 7X-50X, optional eyepiece, and auxiliary objective can be expanded to 3.5X-270X, continuous zoom
7. Working distance: 100mm
8. Focus bracket: The inner diameter is 76mm, and the column bore diameter is 32mm
9. Work platform: 320 x 260mm
Features:
1. High field wide-angle eyepiece, explore, one step forward
2. Mic 3 microscope with standard WF10X/25MM high field wide-angle eyepiece, the view is wide and the image is clear, whether it is a mobile phone motherboard, circuit board, or more precise and smaller chips, all you can have a full view
3. The high field of view design makes the observation more comfortable and reduces eye fatigue caused by prolonged observation, even more surprising is that the wide-angle eyepiece is designed with the wearers needs in mind

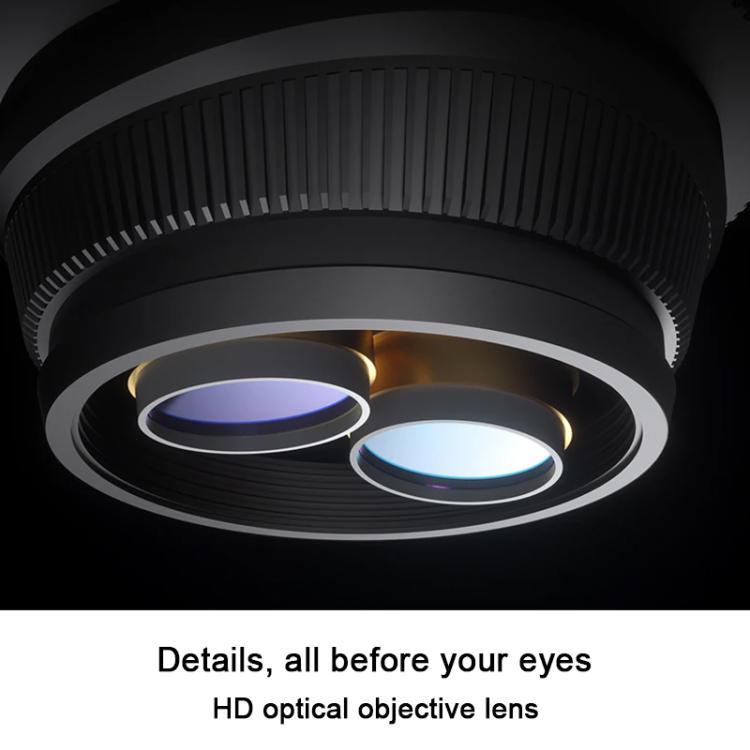

4. The high-definition coated objective is one of the core advantages of the Mic 3 trinocular stereo microscope, through advanced coating technology, the objective lens can effectively reduce light scattering and improve image contrast and clarity

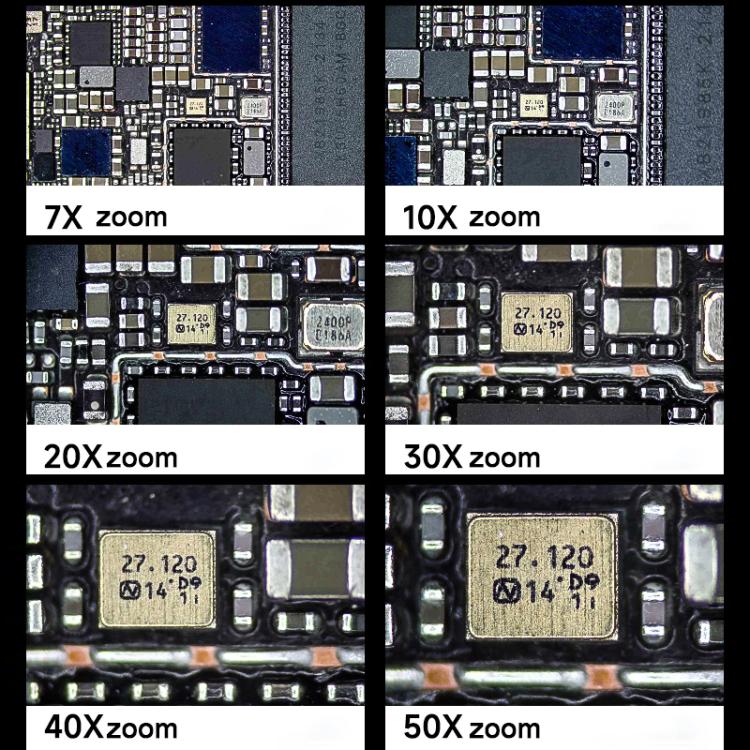

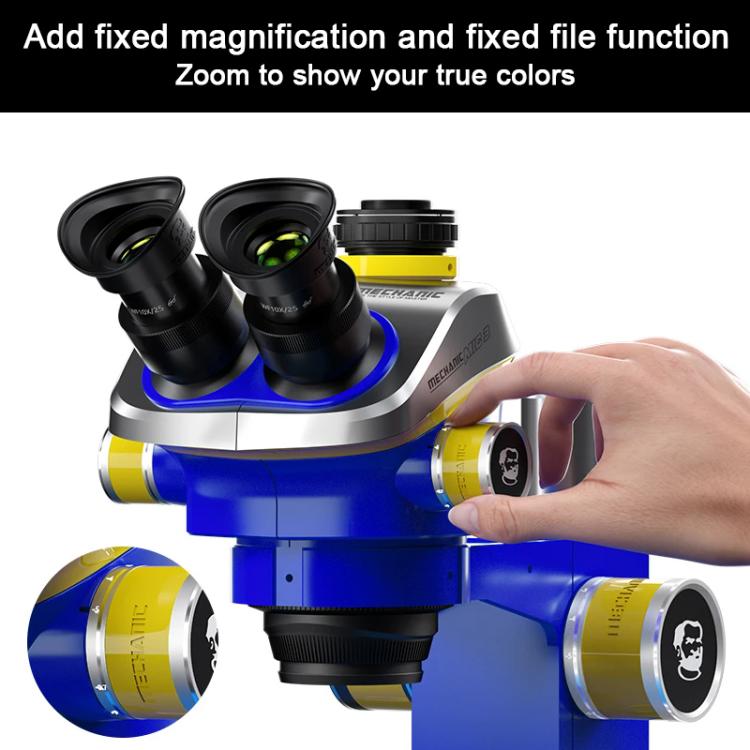

5. Mic 3 microscope adopts the advanced design of variable magnification prism group, realized from 7X to 50X large magnification continuous fixed multiple and gear functions, accurately lock the magnification you need
6. MECHANICs newly designed zoom handwheel breaks the shortcomings of traditional mechanical design such as rough hand-feeling, frequent use of zoom handwheels it easier to fatigue, therefore, 7. MECHANIC adopts a more comfortable non-slip silicone design

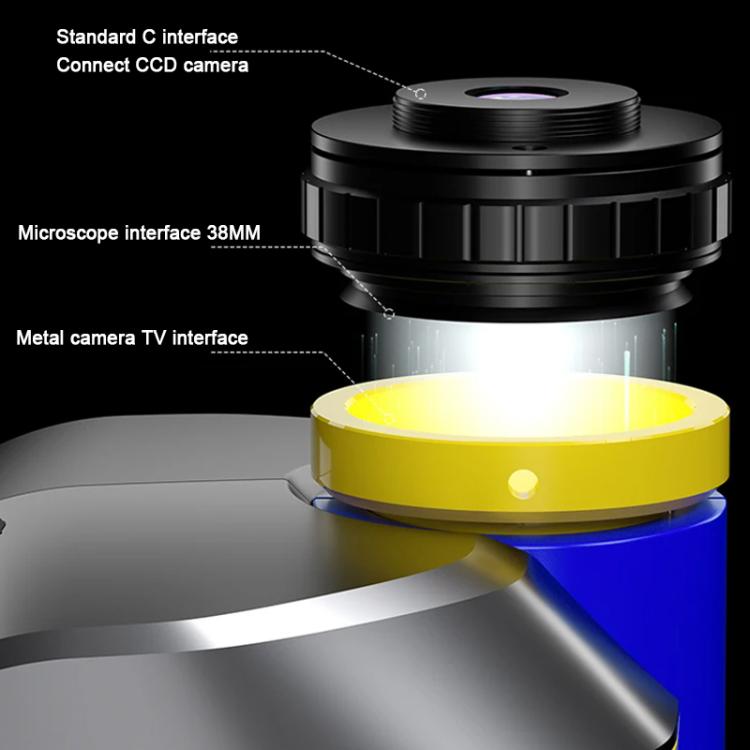

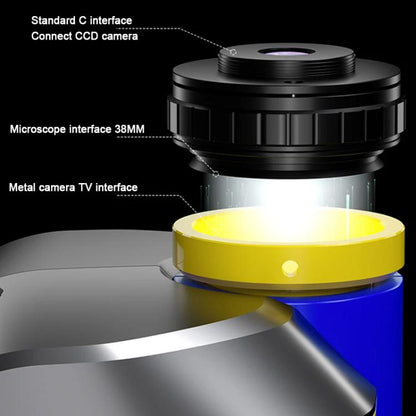

With the Mic3 trinocular microscope with the CTV 0.45X adapter, the imaging effect is significantly improved, this adapter delivers sharper, more detailed images than regular CTV interfaces, more effectively eliminating the phenomenon of dark angle, ensuring that the image is clear and bright across the entire field of view

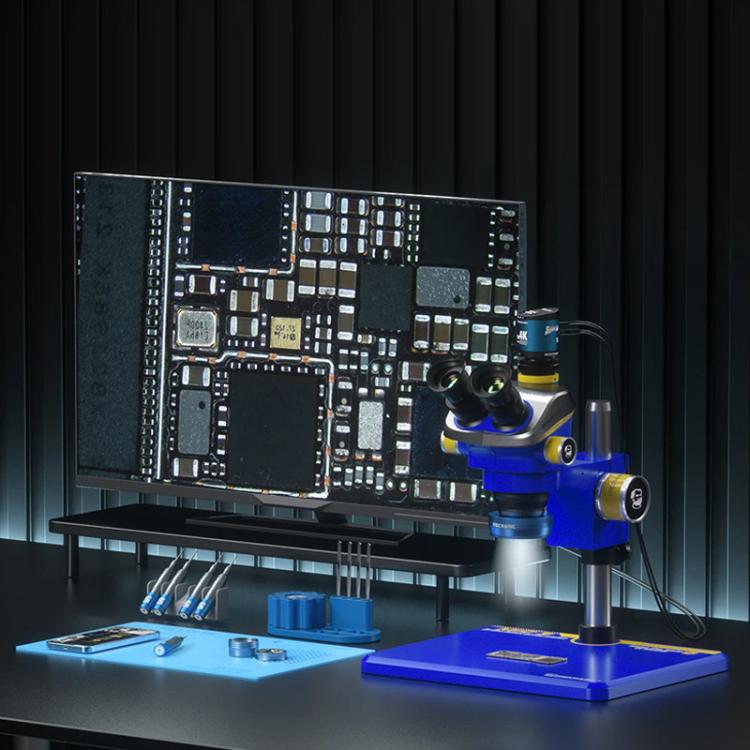

8. In the exquisite technique of microscopic observation, Mic3 trinocular microscope and 4K Pro industrial-grade HD camera (Not includes) perfect combination, bringing you an unprecedented visual experience
9. This excellent combination not only allows external HD display, to achieve the synchronization of eye observation and screen display content but also with its high-definition large screen without shadow characteristics, makes the microscopic world visible

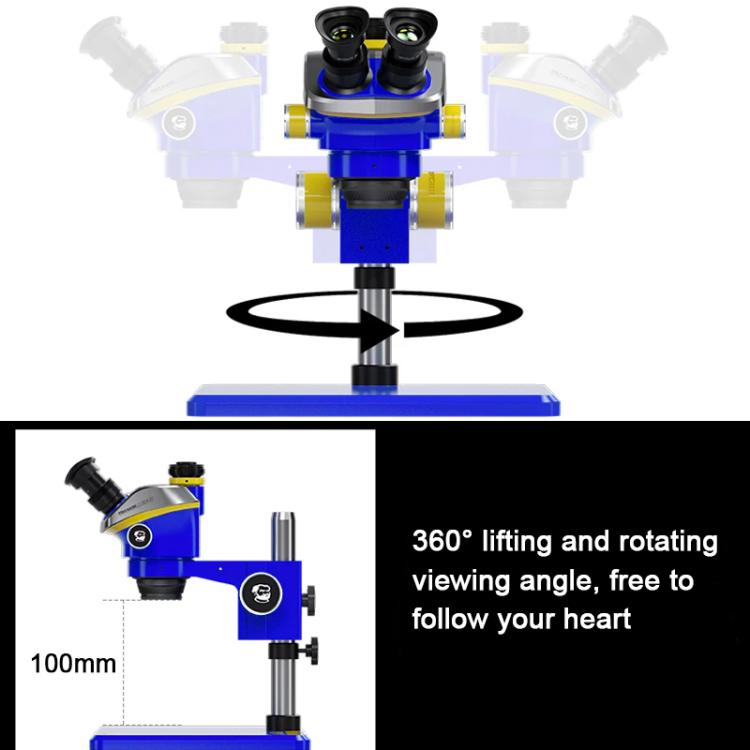

10. 360 degrees rotation allows you to adjust the microscopes viewing angle according to your needs, it is easy to deal with whether it is positive observation or site inspection
11. Mic3 trinocular microscope has a lifting function, and a lifting range up to 100mm, whether you need to see the details up close or the big picture from a distance, you can adjust the height of the microscope to find the most suitable viewing position for you

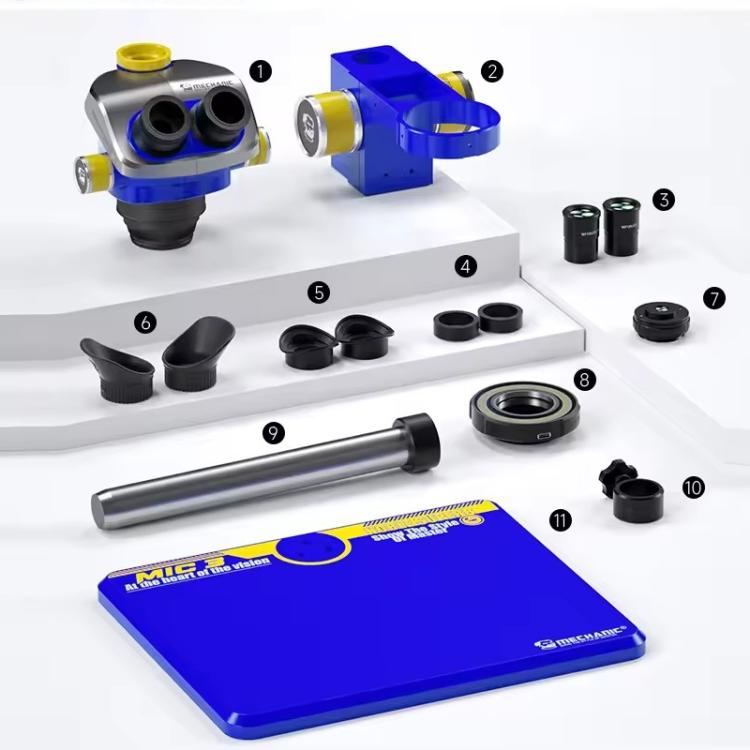

Package includes:
1 x Microscope Head
1 x Microscope Frame
2 x WF10 X25MM Eyepiece
2 x Flat Angle Eye Mask
2 x Silicone Eye Mask
2 x Horn Eye Mask
1 x CTV 0.45X Adapter
1 x Ring Light
1 x Column
1 x Limit Block
1 x Base
1. Non-adjustable eyepieces: WF10X/25MM
2. Zoom ratio: 1:7.1
3. Not adjustable eyepiece: Standard equipment: WF10X/25; high-eyepoint wide-angle eyepiece for the convenience of spectacled observers
4. Observation head: 45 degrees inclination, 360 degrees rotation, interpupillary distance 54~76mm bilateral vision adjustment+-5 diopters
5. Objective: 0.7X-5X continuous zoom, objective zoom ratio 1:7.1 to ensure image surface focus
6. Magnification: 7X-50X, optional eyepiece, and auxiliary objective can be expanded to 3.5X-270X, continuous zoom
7. Working distance: 100mm
8. Focus bracket: The inner diameter is 76mm, and the column bore diameter is 32mm
9. Work platform: 320 x 260mm
Features:
1. High field wide-angle eyepiece, explore, one step forward
2. Mic 3 microscope with standard WF10X/25MM high field wide-angle eyepiece, the view is wide and the image is clear, whether it is a mobile phone motherboard, circuit board, or more precise and smaller chips, all you can have a full view
3. The high field of view design makes the observation more comfortable and reduces eye fatigue caused by prolonged observation, even more surprising is that the wide-angle eyepiece is designed with the wearers needs in mind
4. The high-definition coated objective is one of the core advantages of the Mic 3 trinocular stereo microscope, through advanced coating technology, the objective lens can effectively reduce light scattering and improve image contrast and clarity
5. Mic 3 microscope adopts the advanced design of variable magnification prism group, realized from 7X to 50X large magnification continuous fixed multiple and gear functions, accurately lock the magnification you need
6. MECHANICs newly designed zoom handwheel breaks the shortcomings of traditional mechanical design such as rough hand-feeling, frequent use of zoom handwheels it easier to fatigue, therefore, 7. MECHANIC adopts a more comfortable non-slip silicone design
With the Mic3 trinocular microscope with the CTV 0.45X adapter, the imaging effect is significantly improved, this adapter delivers sharper, more detailed images than regular CTV interfaces, more effectively eliminating the phenomenon of dark angle, ensuring that the image is clear and bright across the entire field of view
8. In the exquisite technique of microscopic observation, Mic3 trinocular microscope and 4K Pro industrial-grade HD camera (Not includes) perfect combination, bringing you an unprecedented visual experience
9. This excellent combination not only allows external HD display, to achieve the synchronization of eye observation and screen display content but also with its high-definition large screen without shadow characteristics, makes the microscopic world visible
10. 360 degrees rotation allows you to adjust the microscopes viewing angle according to your needs, it is easy to deal with whether it is positive observation or site inspection
11. Mic3 trinocular microscope has a lifting function, and a lifting range up to 100mm, whether you need to see the details up close or the big picture from a distance, you can adjust the height of the microscope to find the most suitable viewing position for you
Package includes:
1 x Microscope Head
1 x Microscope Frame
2 x WF10 X25MM Eyepiece
2 x Flat Angle Eye Mask
2 x Silicone Eye Mask
2 x Horn Eye Mask
1 x CTV 0.45X Adapter
1 x Ring Light
1 x Column
1 x Limit Block
1 x Base
Specification:
| Package Weight |
|
Post Your Needs Information
Mechanic Mic3 7X-50X CTV 0.45X Trinocular Stereo Microscope with 4K Pro Camera, Mechanic Mic3
Brand: ORIWHIZ
Availability:pieces remain(Low stock) will be shipped within 24 hours
Leadtime: Find estimated receipt time in the shopping cart
$358.20
