1. Voltage: DC12-24V
2. Frequency: 50/60HZ
3. Installation method: indoor, ceiling installation
4. HF system: 5.8GHz CW radio wave, ISM band
5. Transmitting power: less than 10mW
6. Power: 70W (DC 12V)
7. Detection angle: 360 degrees
8. Distance: about 1-10m (radius) adjustable
9. Working delay: 10 seconds to 3 minutes
10. Light control illumination: about 2-2000 LUX
11. Power consumption: about 0.5W

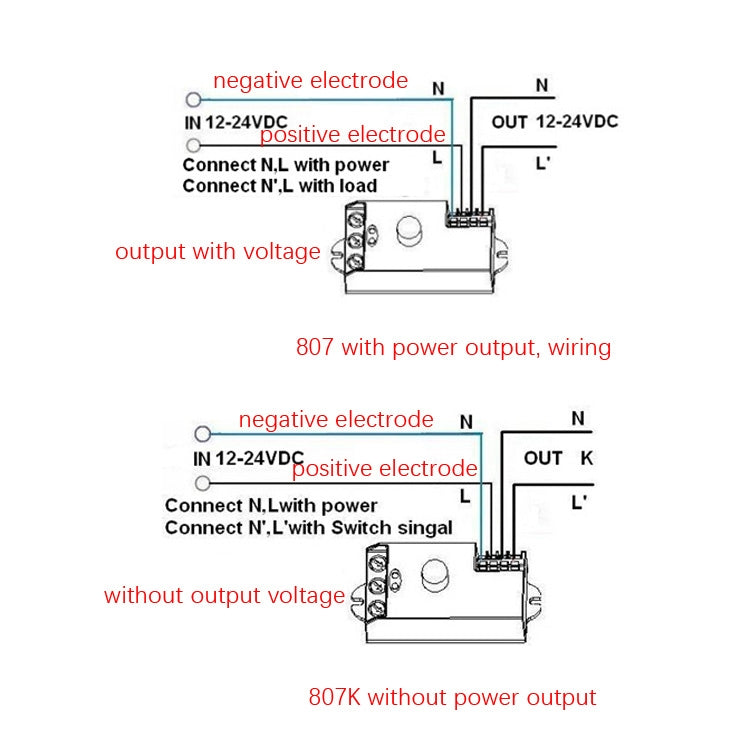

12. Description: 807 with power output, 807K without power output
13. Applicable environment: corridors, toilets, living rooms, corridors, warehouses, garages, etc.
14. Installation reminder: the induction switch has a transmission blind spot in the central area. If it is installed in a small indoor environment (such as bathroom, kitchen), try to install it on the side or in the corner, so that the induction area will be more effective on the side. otherwise, the vertical center activity may not be sensed

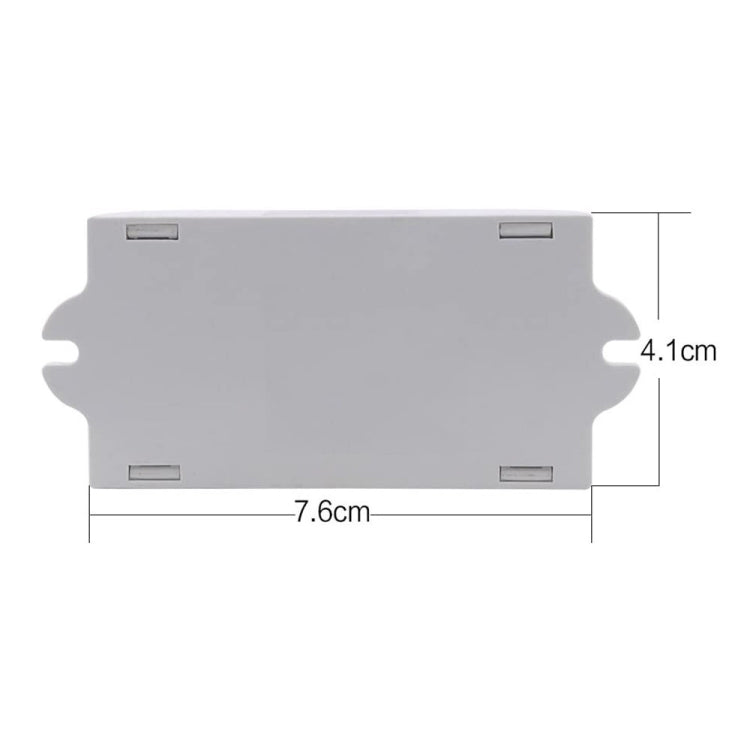

15. Size: about 7.6x4.1x3.9cm
Specification:
| Package Weight |
| One Package Weight |
0.08kgs / 0.19lb |
| One Package Size |
10cm * 6cm * 5cm / 3.94inch * 2.36inch * 1.97inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch |
| Loading Container |
20GP: 177 cartons * 356 pcs = 63012 pcs
40HQ: 412 cartons * 356 pcs = 146672 pcs
|
|
