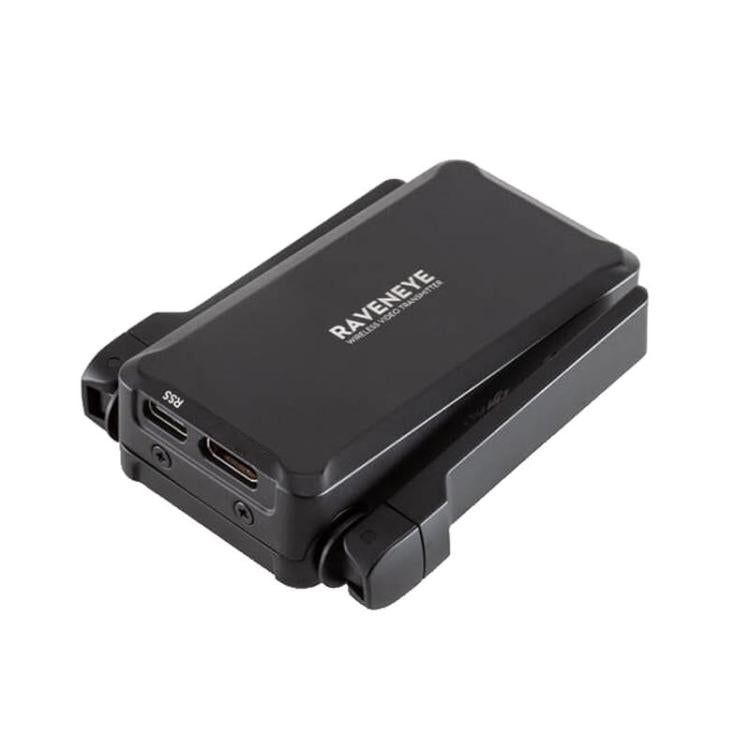

Original Long-Distance Monitoring Intelligent Follow Image Transmitter for DJI RS 2, Image Transmitter

1. Through the Ronin image transmission, the following functions can be realized: smart follow 3.0, mobile phone somatosensory control, virtual joystick control gimbal, manual focus, adjust gimbal parameters, adjust camera exposure parameters, etc.

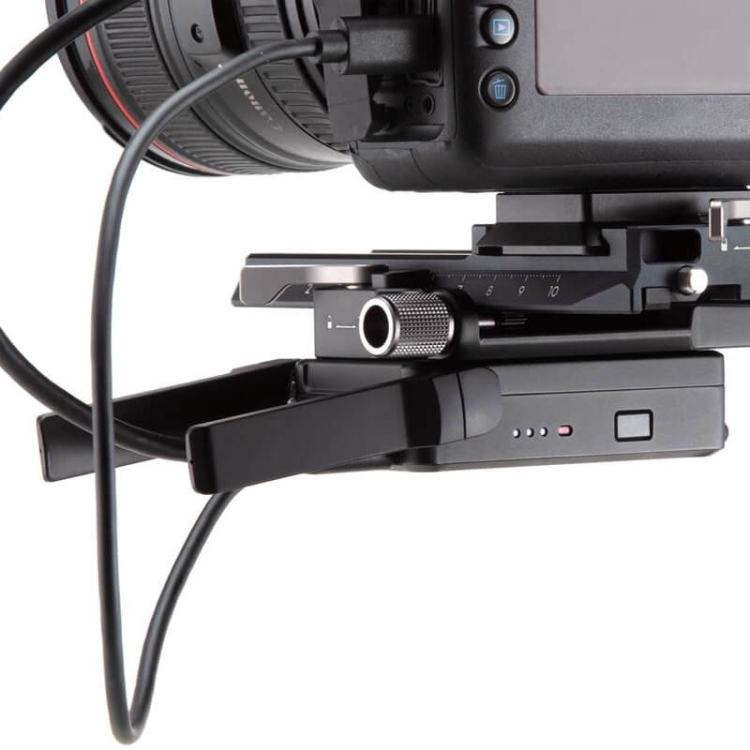

2. Connect the camera to the Ronin video transmission via an HDMI cable, and connect the mobile phone to the Ronin video transmission via Wi-Fi, and then you can view the camera shooting screen on the Ronin app

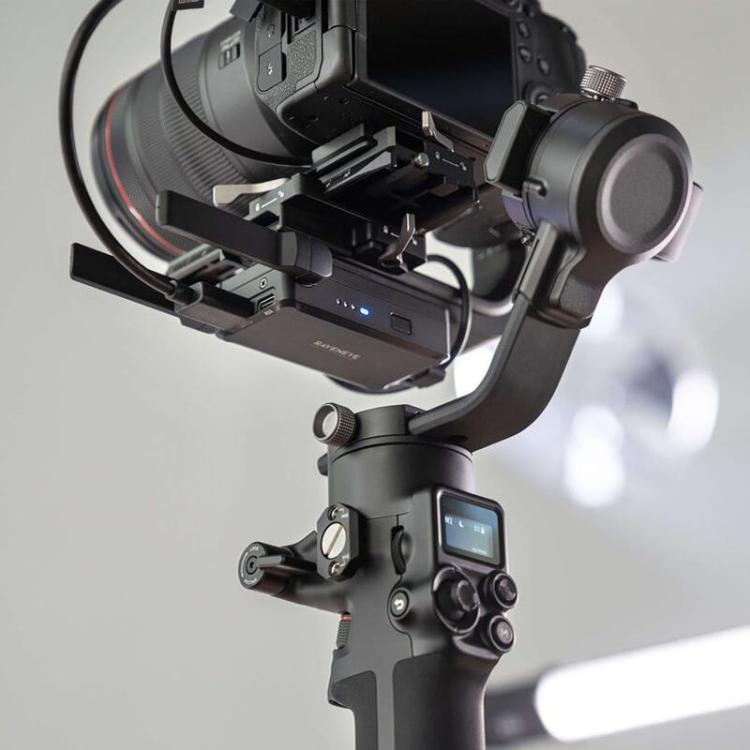

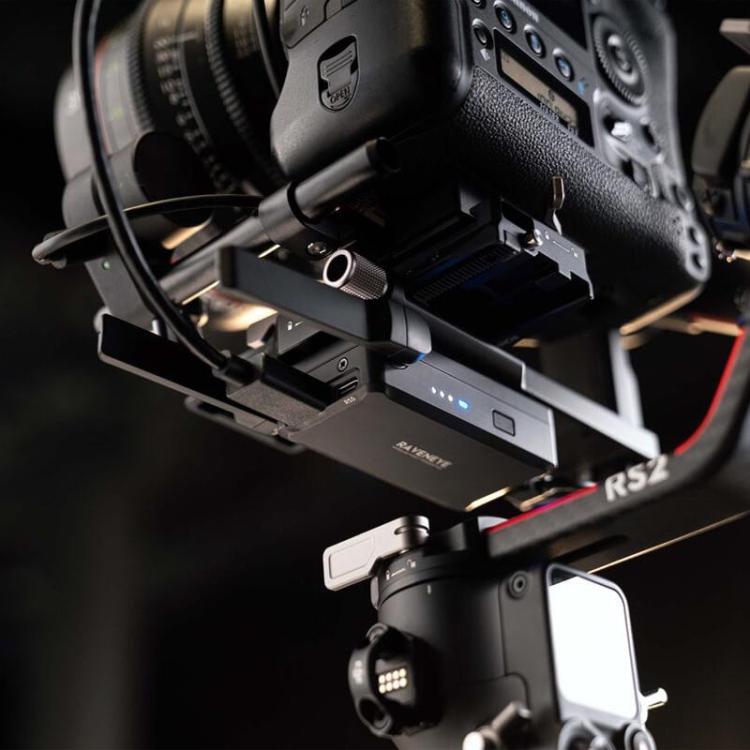

3. When RS 2 or RS 3 Pro is used with Ronin video transmission, you can also view the camera shooting screen on the screen of the gimbal body
4. Note: When theRS 3 or RSC 2 is used with the Ronin video transmission, the screen of the gimbal body does not support viewing the camera shooting screen, you can view it through the Ronin app
5. Working frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz
6. Transmission power (EIRP): 2.400-2.4835 GHz: <25 dBm (FCC) <20 dBm (CE/SRRC/MIC); 5.725-5.850 GHz: <25 dBm (FCC/SRRC),
<14dBm (CE)
7. Dimensions: 8.2 x 6.3 x 2.4 cm
8. Weight: 126 grams
9. Compatible products: DJI RS 3 Pro, DJI RS 3, DJI RS 2, DJI RSC 2

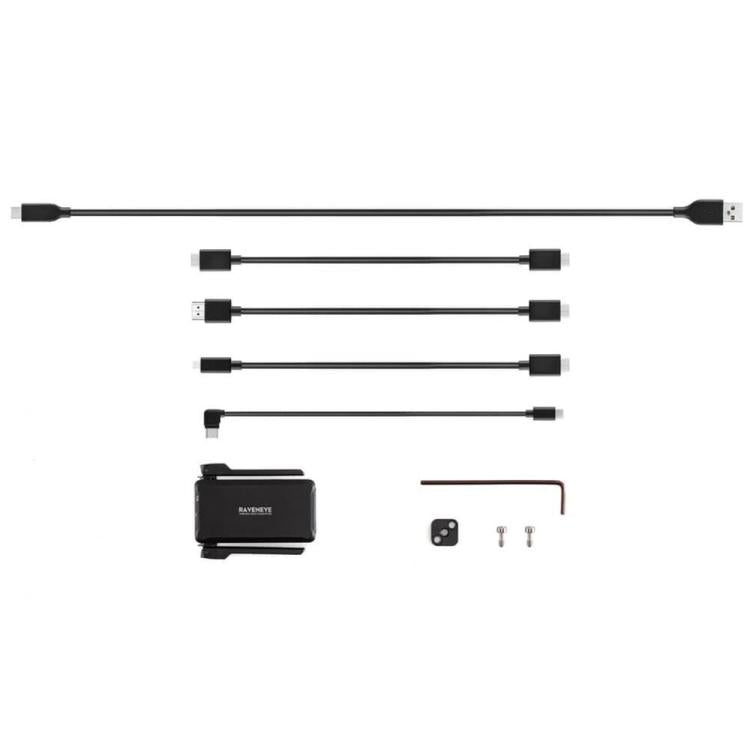

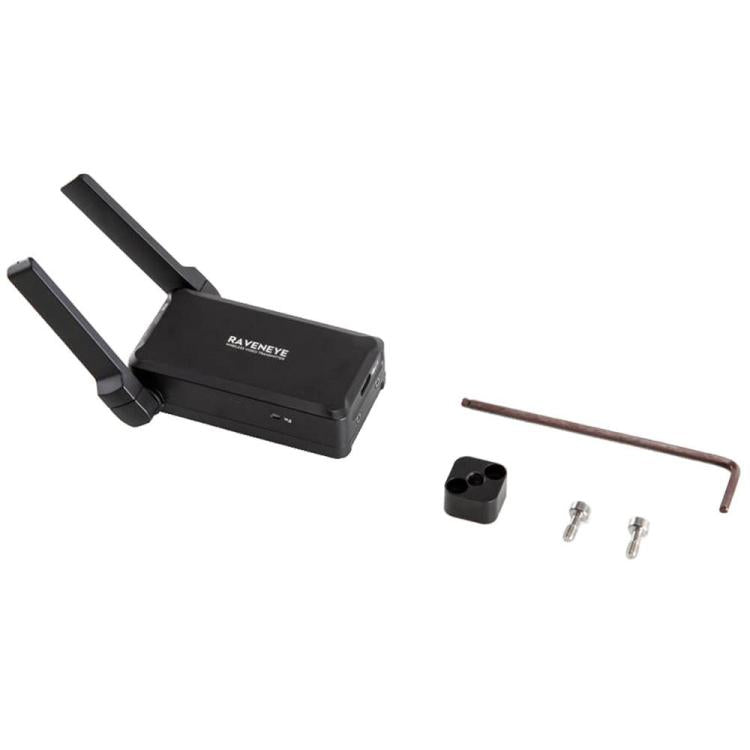

Packing list:
1. Video Transmitter x 1
2. Cold shoe to 1/4-20 screw hole adapter x 1
3. USB-C cable (40cm) x 1
4. USB-C to USB-C cable (20 cm) x 1
5. USB-C port to A port HDMI cable (20 cm) x 1
6. USB-C port to C port HDMI cable (20 cm) x 1
7. USB-C port to D port HDMI cable (20 cm) x 1
8. M4 screw (10 mm) x 2
9. Wrench (3 mm) x 1
