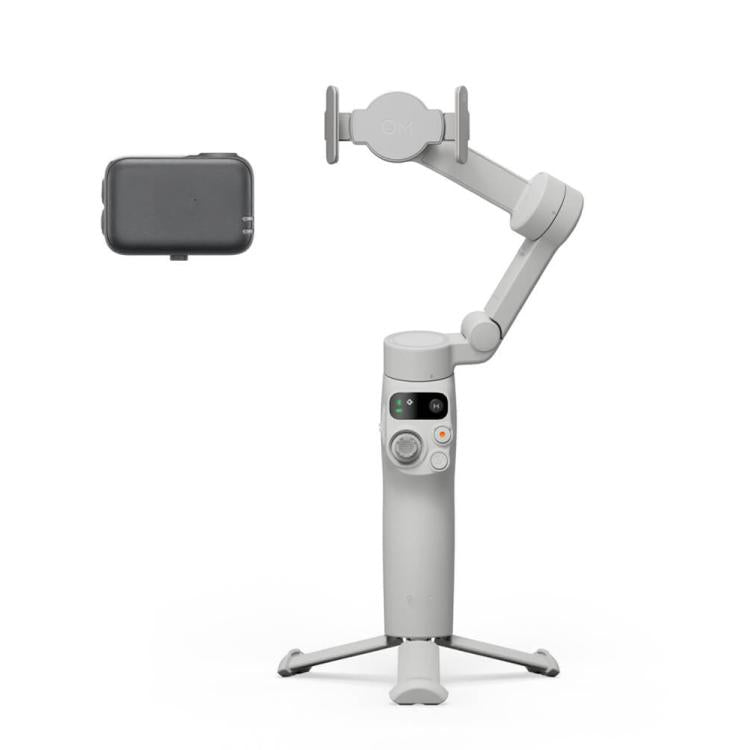

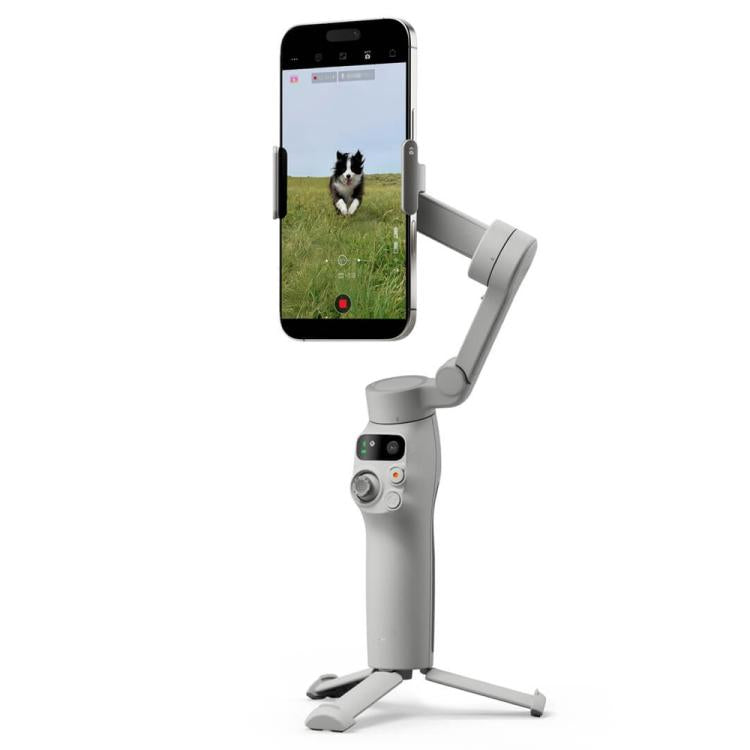

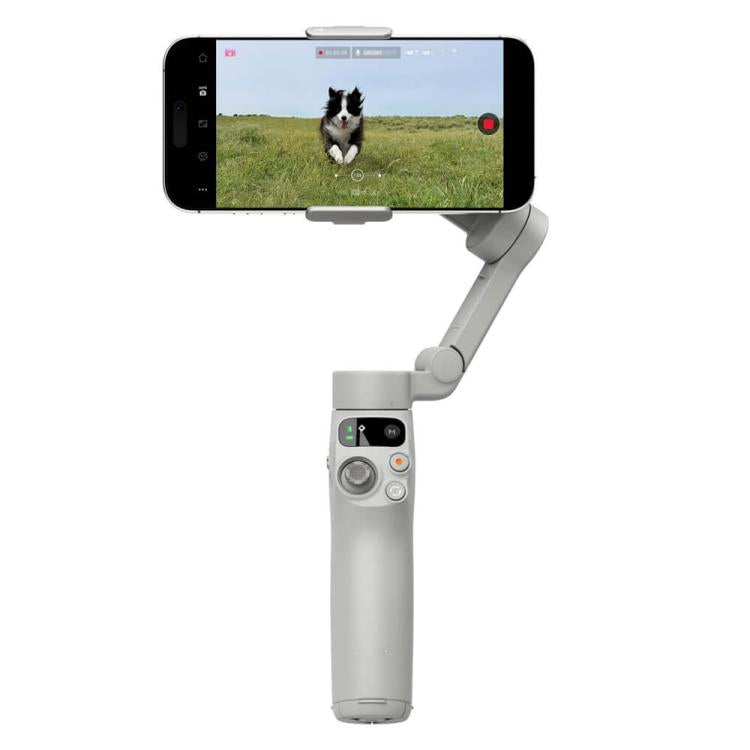

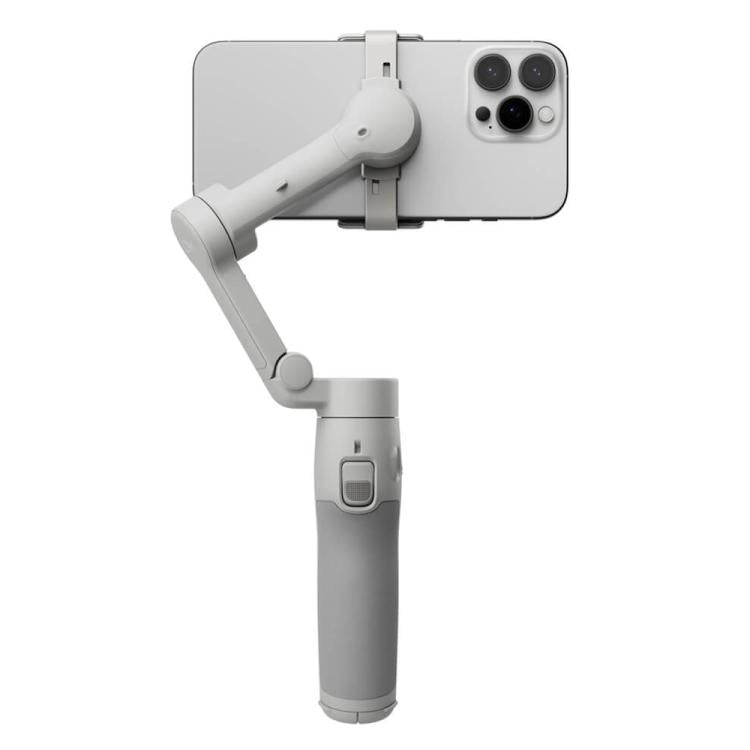

Original Osmo Mobile 7 With Multifunctional Module, Osmo Mobile 7 Multifunctional Module

Compact and portable, easy to operate, featuring DJI 7th generation stabilization technology and ActiveTrack 7.0. Pair it with the Multifunctional Tracking Module to facilitate efficient solo content creation.

Parameters:
1. Dimensions:
--Unfolded: 278 mm (Length) × 107 mm (Width) × 93 mm (Height)
--Folded: 179 mm (Length) × 95 mm (Width) × 39 mm (Height)
2. Weight: Gimbal + Built-in Tripod + Magnetic Phone Clamp: Approx. 300 g
3. Extension Rod: No built-in extension rod
4. Built-in Tripod: Length: 67 mm
5. Supported Phone Weight: 170 g to 300 g
6. Supported Phone Thickness: 6.9 mm to 10 mm
7. Supported Phone Width: 67 mm to 84 mm
8. Bottom Interface: 1/4-inch Screw Port

---
Battery:
1. Type: Li-Po 1S
2. Capacity: 3350 mAh
3. Energy: 12.06 Wh
4. Operating Time: Approx. 10 hours (Reference value measured under gimbal balanced and stationary conditions without additional accessories)
5. Charging Time: Approx. 2.5 hours (Measured with a 10W charger)
6. Gimbal Charging Port: USB-C

---
Gimbal:
1. Controllable Rotation Range:
Pan: -99° to 210°
Roll: -67° to 245°
Tilt: -20° to 40°
2. Structural Rotation Range:
Pan: -109° to 222°
Roll: -77° to 255°
Tilt: -224° to 100°
3. Maximum Controllable Rotation Speed: 120°/s

---
Multifunctional Module：
1. GFSK: 2 Mbps
2. GFSK Transmit Power (EIRP): ≤ 16 dBm
3. GFSK Operating Frequency: 2.4000 GHz to 2.4835 GHz
4. Bluetooth Protocol: Bluetooth 5.3
5. Bluetooth Transmit Power (EIRP): ≤ 16 dBm
6. Bluetooth Operating Frequency: 2.4000 GHz to 2.4835 GHz
7. Fill Light Illuminance: 40 lux (Maximum brightness measured 0.6 m away from the subject, for reference only)
8. Fill Light Color Temperature: 2500 K to 6000 K

---

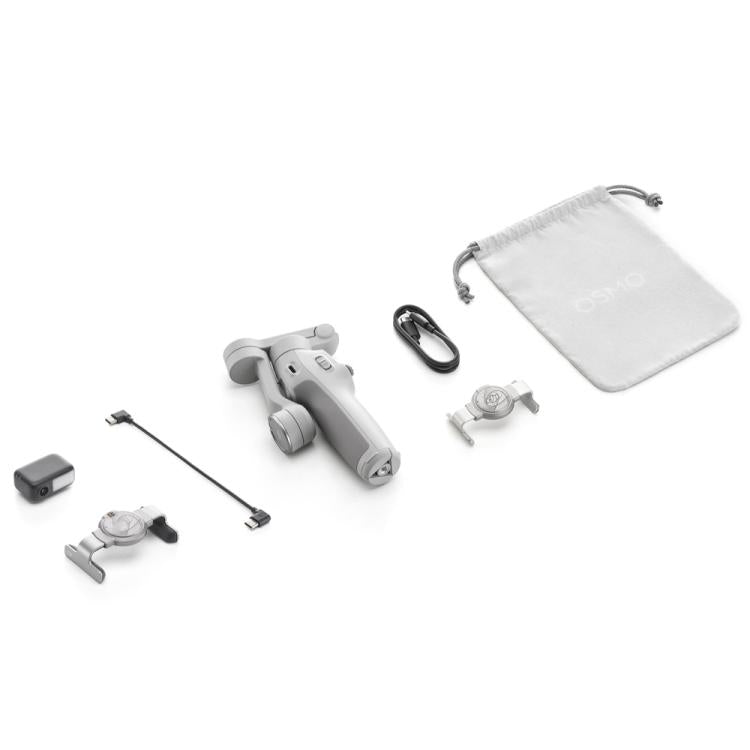

Package List：
Osmo Mobile 7 × 1
OM Multifunctional Tracking Module × 1
OM 7 Series Magnetic Phone Clamp × 1
OM Magnetic Phone Clamp 4 × 1
USB-C to USB-C Charging Cable (50 cm) × 1
USB-C to USB-C Phone Audio Cable (15 cm) ×1
Drawstring Pouch ×1
