Product model: pzem-061 (V2.0)
Function
1. Electrical parameter measurement function (voltage, current, active power, electric quantity).
2. Overload alarm function (over power alarm threshold, backlight and power flashing).
3. Power alarm threshold presetting function (you can set the power alarm threshold by yourself).
4. Power button reset function.
5. Power off data saving function.

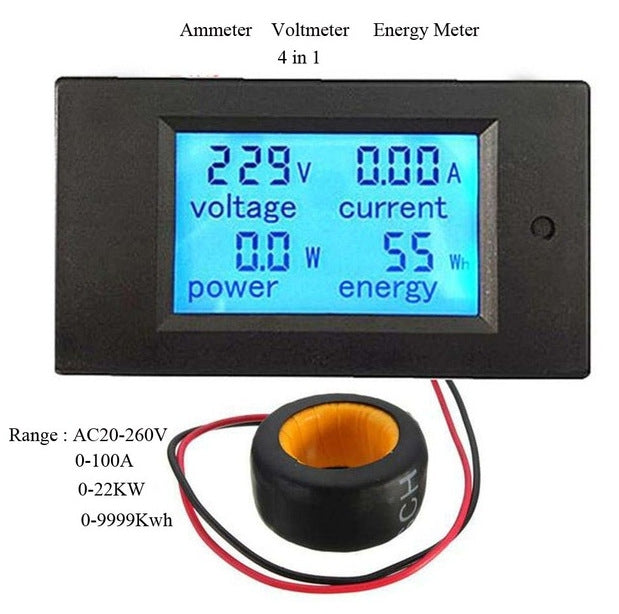

6. Large-screen LCD full display function (display voltage, current, active power and electric quantity at the same time).
7. Backlight function.
8. Display and buttons
Matters needing attention
1. This module is suitable for indoor use and cannot be used outdoors.
2. The added load shall not exceed the rated power.
3. Make no mistake about the wiring sequence.
Specification
1. Working voltage: 80-260VAC
2. Test voltage: 80-260VAC
3. Rated power: 100A/22000W
4. Operating frequency: 45-65Hz
5. Measurement accuracy: level 1.0
Specification:
| Package Weight |
| One Package Weight |
0.13kgs / 0.28lb |
| One Package Size |
11cm * 7.3cm * 3.5cm / 4.33inch * 2.87inch * 1.38inch |
| Carton Weight |
22.90kgs / 50.49lb |
| Carton Size |
42cm * 34cm * 28cm / 16.54inch * 13.39inch * 11.02inch |
| Loading Container |
20GP: 666 cartons * 200 pcs = 133200 pcs
40HQ: 1548 cartons * 200 pcs = 309600 pcs
|
|
