PCB quick diagnostic apparatus is a new generation of maintenance equipment, which is the world's first to use dual-spectral interleaved positioning technology. Through powerful PC-side intelligent analysis software, the use of intelligent algorithms, it can detect the motherboard chip operating temperature by the use of intelligent technology. By the normal / abnormal motherboard comparison analysis, it can quickly and accurately identify problem chip, which can assist maintenance personnel in overhauling the problem board, greatly improve the efficiency and maintenance accuracy.
PCB infrared thermal imaging diagnostic apparatus is composed of three parts, the front-end detection host, and adjustable lift bracket and computer client analysis software.

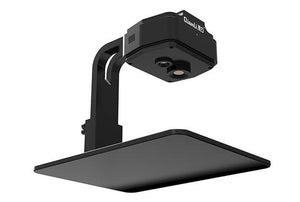

The front end host is composed of visible and infrared dual vision lens, which can display visible light screen, infrared thermal imaging screen, visible light / infrared thermal imaging fusion screen. It can locate the position of problematic chip quickly by observing the different screen switch. Besides, the visible lens can be uninstalled to replace electron microscope lens anytime, which can be used as electronic microscope, a machine with multi-function. In order to reach the best observation distance, it comes with the adjustable bracket. By adjusting the distance between the machine and PCB, it can have the best clear imaging effect.
By Computer client analysis software, intelligent identification algorithm, running temperature of each chip on PCB board can be displayed on the screen and the maximum temperature value of the chip can be also intelligently positioned .Through the normal / abnormal motherboard comparison analysis, quickly locate the problematic chip position. At the same time the software can take pictures, video to reserve maintenance motherboard photos, video proofs, to provide reference comparison date for future maintenance.
Features:
Diagnostic apparatus unit for checking PCB short circuit
leakage current thermal diagnosis for Mobile phone motherboard logic board
PCB fast diagnostic instrument is the world's first use of dual spectrum interleaving positioning technology, through the powerful PC terminal intelligent analysis software, using the intelligent algorithm can detect the motherboard of the chip, operating temperature of the resistor capacitor; you can quickly locate the capacitance of micro current leakage, short circuit position; through the analysis of normal / abnormal motherboard matching mode, fast and accurate identification a motherboard chip, assist maintenance maintenance personnel, a new generation of maintenance equipment has greatly improved the efficiency and accuracy of maintenance.
(simple operation)
Infrared part parameters:
Detector Type Uncooled Vanadium Oxide (VOx) Detector
Resolution 160×120
Wavelength range 7.5-13.5 μm
Lens angle of view 57°×44°
Visible light parameter
Resolution 1920×1080
Interface and display function
Display mode Visible/infrared thermal imaging/infrared fusion
Video output RJ45
Picture storage format JPEG
Physical characteristics
Bracket size 19cm × 24.5cm × 21mm
Weight 2.1kg (including bracket base)
Installation detachable installation
power supply
Input supply voltage 5-26 V DC
Power consumption 2.2W (3W)
Use environment
Storage temperature range -20°~ 60°C
Humidity 95% relative humidity
Temperature measurement performance
Temperature measurement function
Temperature measurement accuracy ±2°C
Temperature range -10°C-150°C
