PRODUCT INTRODUCTION
Specifications:
1. Original Quick smd rework station

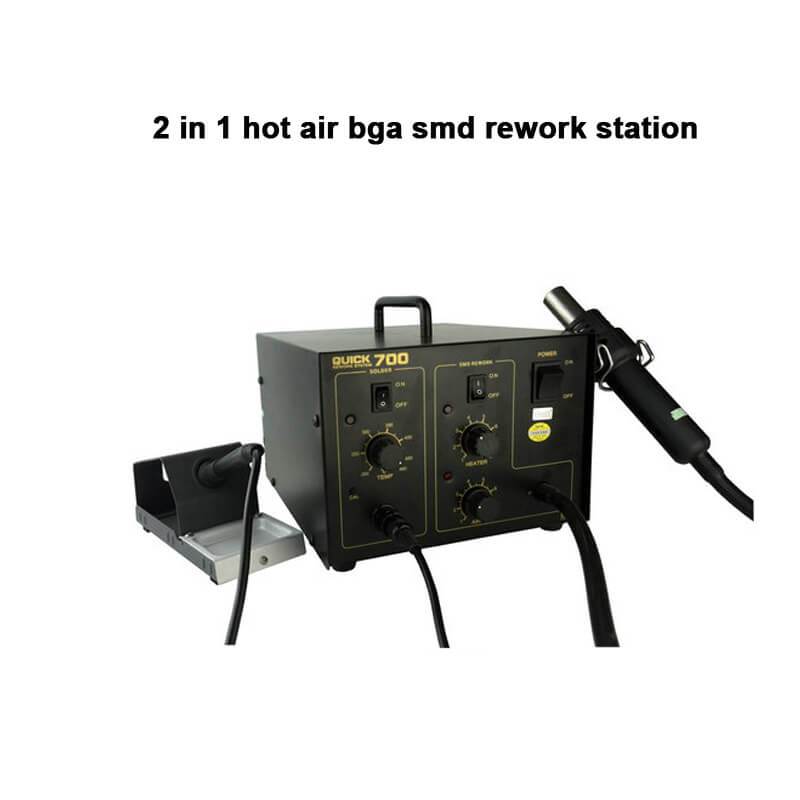

2. 2 in 1 rework station, bga rework station+soldering iron
3. Brushless fan
4. With long life air blower
|
ITEM
|

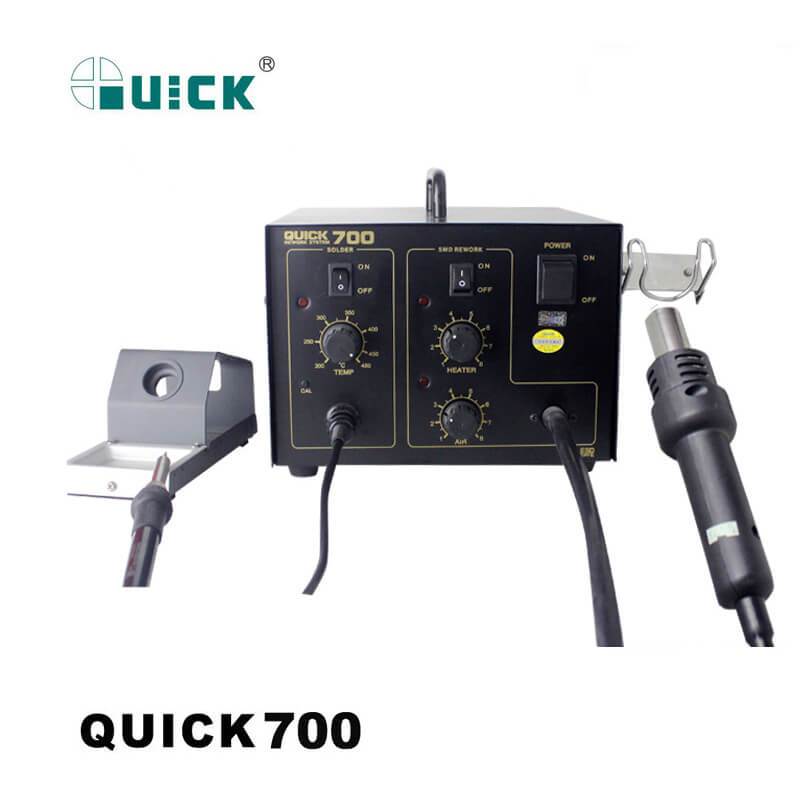

Hot sale constant temperature weller soldering station Quick700
|
|
Brand
|
Quick
|
|
Power Consumption
|
270w
|
|
Temperature Range
|
100℃~420℃
|
|
Power consumption of soldering iron
|
50w
|
|
Temperature range of soldering iron
|
200℃~480℃
|
|
size
|
34*34.5*22.5cm
|
|
weight
|
6.6kg
|
|
Tip-to-Ground Potential
|
<2 mV
|
|
Tip-to-Ground Resistance
|
<2Ω
|
Usage:
1. Fits most of SMD, Such as SOIC, CHIP, QFP, PLCC, BGA etc.
2. It is suitable to hot shrink, drying, remove lacquer and mucosity, thaw,
preheating, disinfect and so on.
PRODUCT FEATURES
Characteristics of Rework station:
1. Preventstatic electric and creepage to damage the PCB.
2. Don’t need to touch the PCB, which can avoid element moving and heating impaction.
3. Extensively adjust airflow and temperature and select different nozzles, so it can fit most of SMD.
4. Use inlet heating element, the type of heating element and nozzle is same as the international.
5. Delay to blow cool airflow when turn the power switch off, it can protect the unit.
