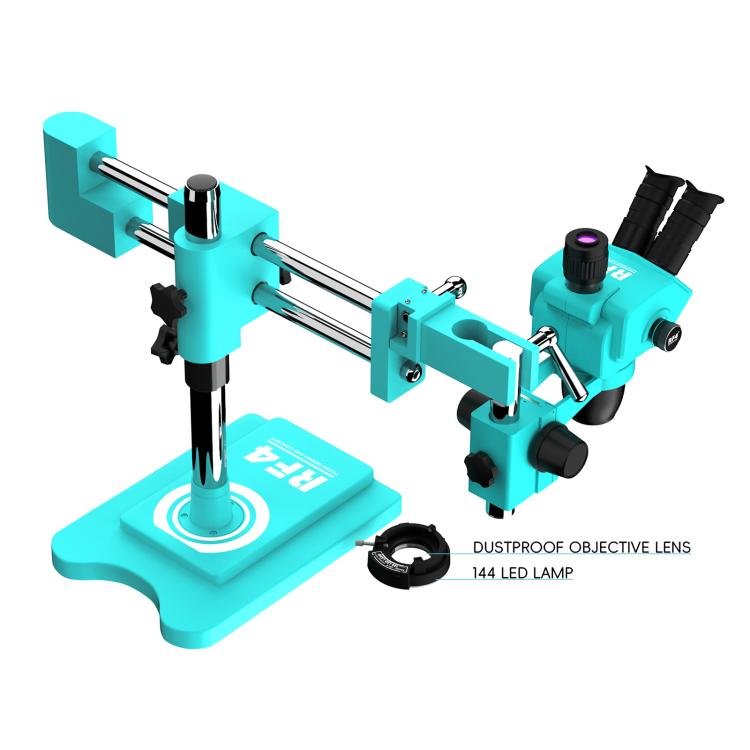

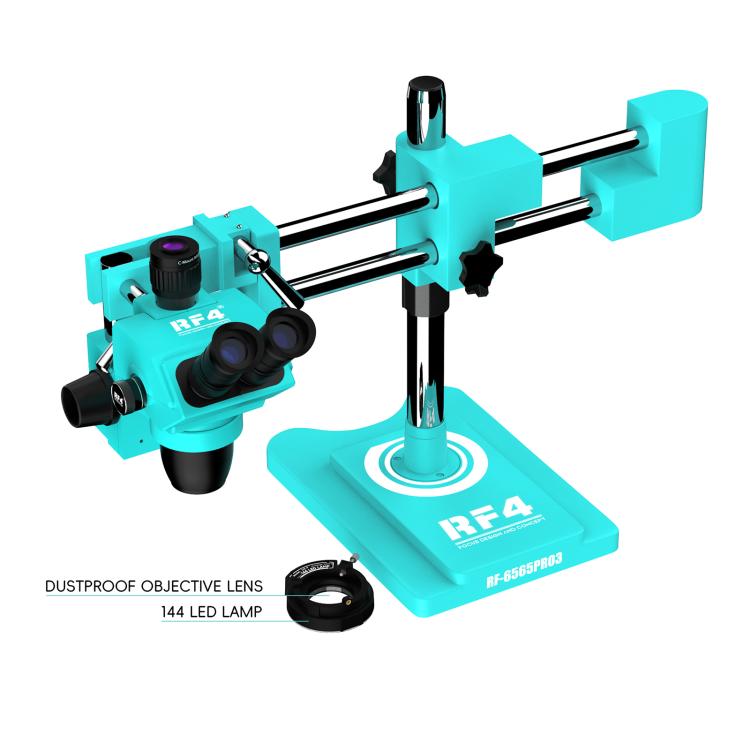

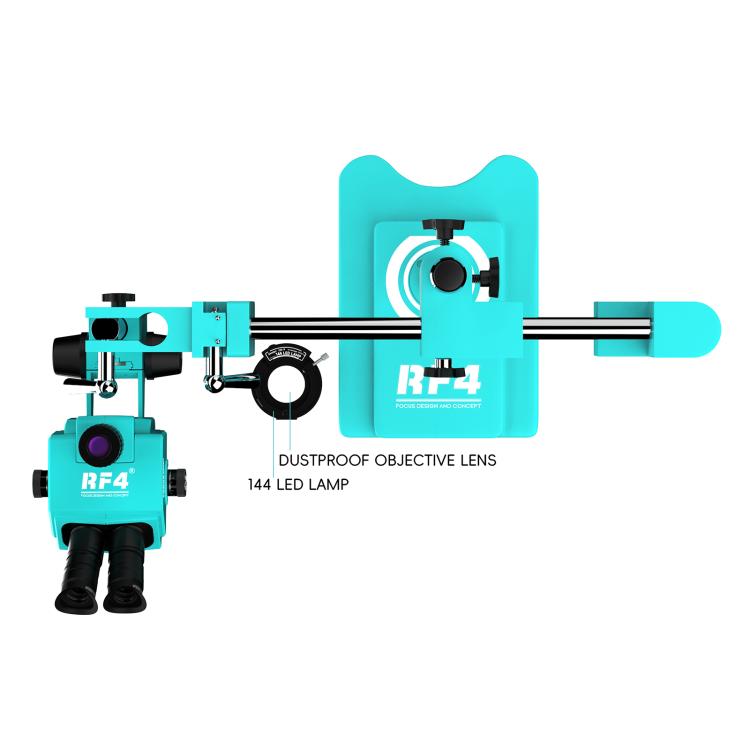

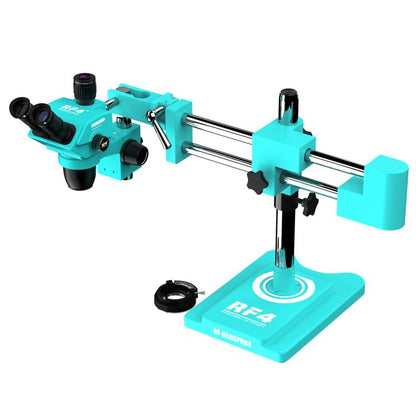

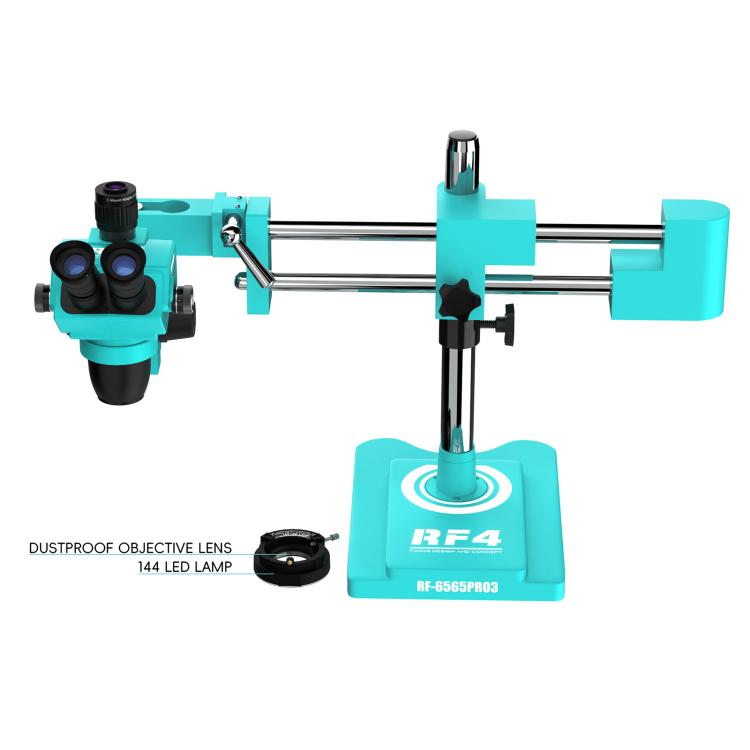

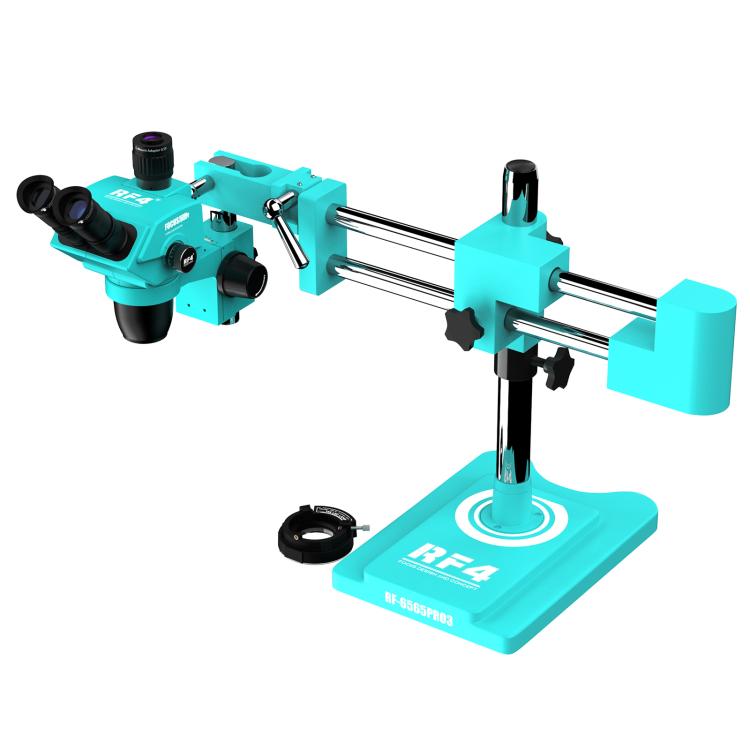

RF4 RF-6565Pro3 6.5-65X Synchronous Zoom Trinocular Stereo Microscope with Double-arm Boom Stand, RF-6565Pro3

Features:
1. Fine concave-convex design, enhanced anti-slip, does not damage the phone film various problems.
2. The meticulous and small round hole texture greatly increases the friction coefficient and is not easy to slip off.
3. Smooth and smooth, no burrs, no damage to the phone when used.
4. The bottom is non-slip, fits the table firmly, not easy to slide.
5. Four-sided multi-scale design, accurate measurement, and convenient measurement of the area.
6. A multifunctional aluminum alloy base can fix your microscope, aluminum alloy mat can protect your phone motherboard from static electricity damage.
7. High Precision maintenance pad is widely used in repairing mobile phone motherboards, also green oil, solder paste, screwdriver, chip, material, assemble&disassemble tools, and other phone repair consumable items can be put in this storage pad, which is easy to take.
8. An integrated pad can prevent scratching with welding workbench rubber.

Specification:
1. Magnification: Continuous zoom 6.5X to 65X
2. Head: 45-degree inclined 360-degree swiveling trinocular
3. Eyepiece: WF10X/22MM
4. Objective: 0.65-6.5X
5. Camera connector: 0.5X
7. Monitor and eyepiece: Synchronous zoom
8. Accessories: 144 adjustable led lights & dust proof Lens
9. Boom Stand: 51cm double-arm (overall length: 76cm) 41cm high pillar, 200mmx245mm solid cast steel base

Support Parameters:
1. Column aperture: 32mm
2. Lens aperture: 76mm
3. Center distance: 155mm
4. Lifting range: 50mm

Wide-angle Eyepieces 10X/22:
1. Magnification: 10X
2. Wide field of view 22mm
3. Matching size: 30mm
4. Applicable models: Stereoscopic, fixed, and continuous magnification microscopes

0.5X CTV Len:
1. The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
2. The adapter ring can use LCD to focus, this kind of focus method is manual focus
3. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

144 LED Ring Light:
1. Input: AC 100~240V 50/60Hz
2. Output: DC 12V, Max 700mA
3. Light color: White
4. Number of lights: 144 LEDs
5. Inside diameter: 60mm

Package includes:
1. Microscope x 1
2. Aluminum Alloy Plate x 1
3. 144 LED Light x 1
4. Dustproof Len x 1
5. 0.5X CTV Lens x 1
