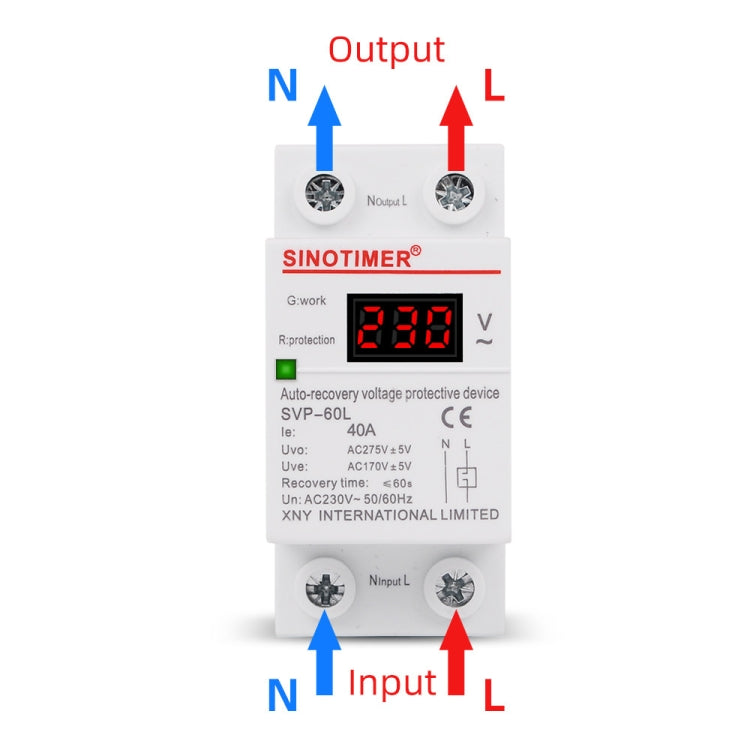

1. AC rated voltage: AC 230V 50/60Hz
2. Through current: up to 40A
3. Recovery time: within 60s
4. Function: over-voltage/low voltage protection, voltage display (voltage measurement), automatic recovery
5. Installation: 35mm rail

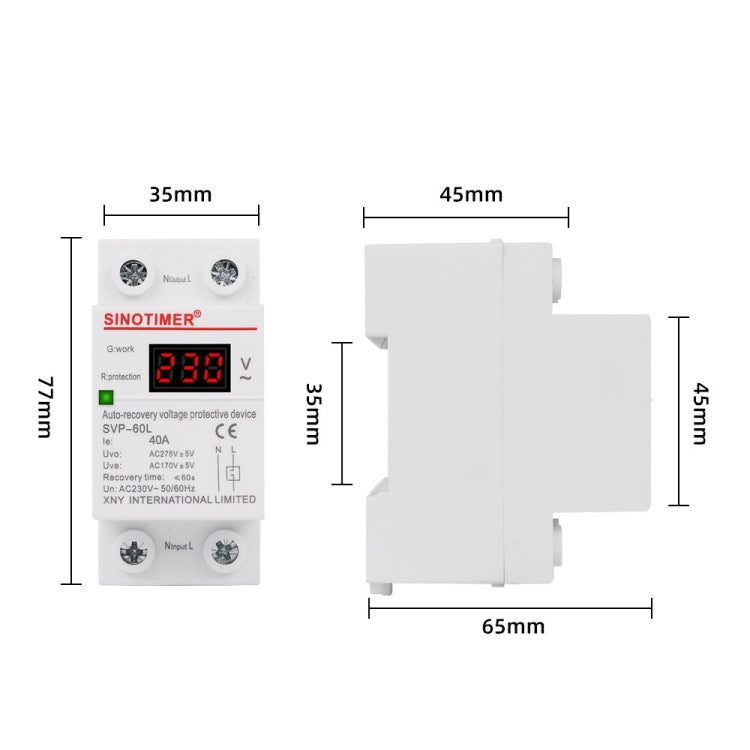

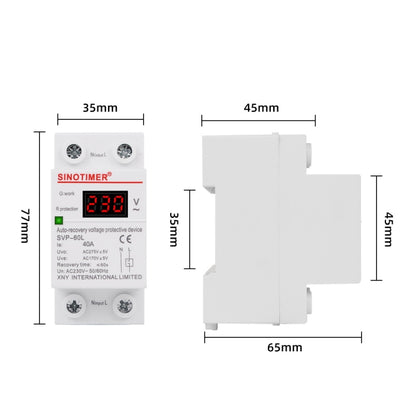

6. Size: about 7.7x4.5x3.5cm
7. Weight: about 128g
Features:
1. Stable performance
2. Easy installation, 35mm rail installation
3. Simple operation

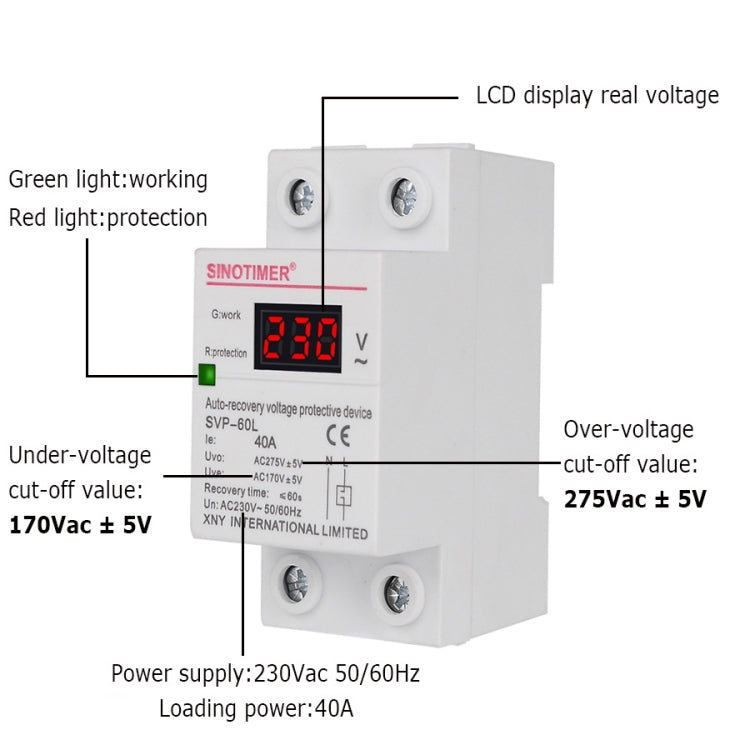

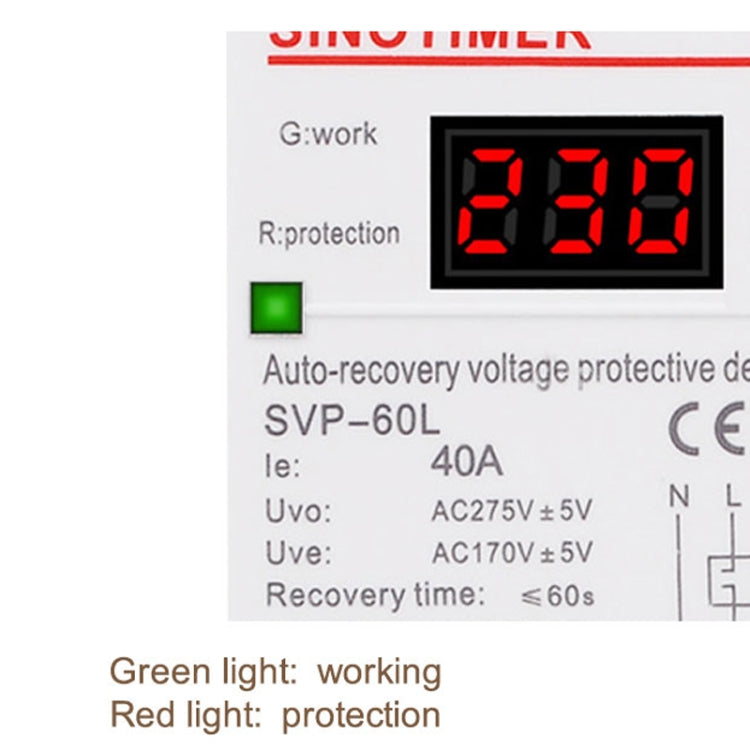

4. When the power supply is normal, the green indicator light is displayed, and when the power supply is over-voltage or under-voltage, the red indicator light is displayed

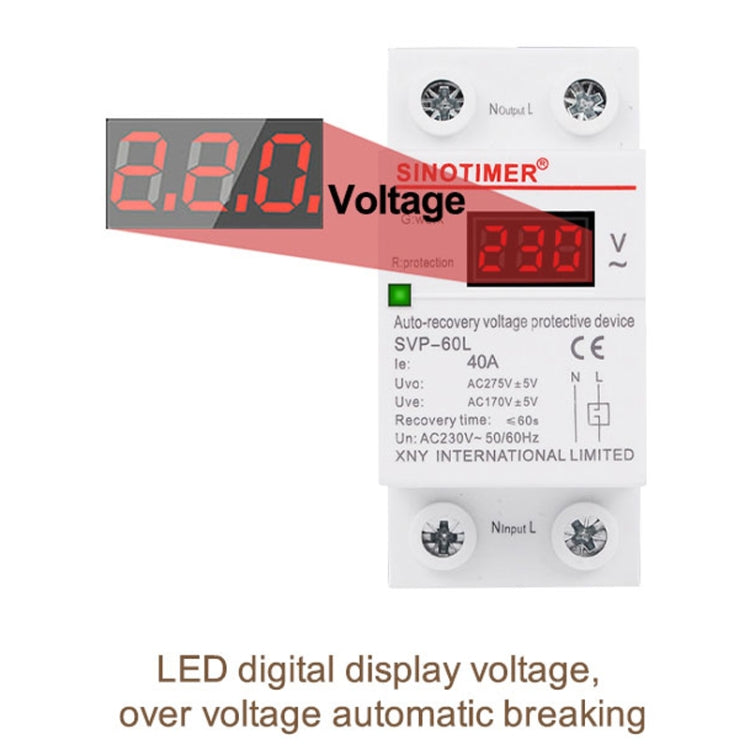

5. Clear LED display, wide viewing angle, voltage reading can be easily checked at any time
6. Mainly used for over-voltage, under-voltage or over-current protection or single-phase electrical equipment protection in the distribution line of residential household boxes
7. In case of line over-voltage or under-voltage or over-current, the power supply can be cut off instantly to protect the electrical equipment from damage; when the line voltage returns to normal, the protector can automatically turn on the power normally
Specification:
| Package Weight |
| One Package Weight |
0.15kgs / 0.34lb |
| One Package Size |
10cm * 8cm * 4cm / 3.94inch * 3.15inch * 1.57inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
57cm * 46cm * 23cm / 22.44inch * 18.11inch * 9.06inch |
| Loading Container |
20GP: 442 cartons * 194 pcs = 85748 pcs
40HQ: 1026 cartons * 194 pcs = 199044 pcs
|
|
