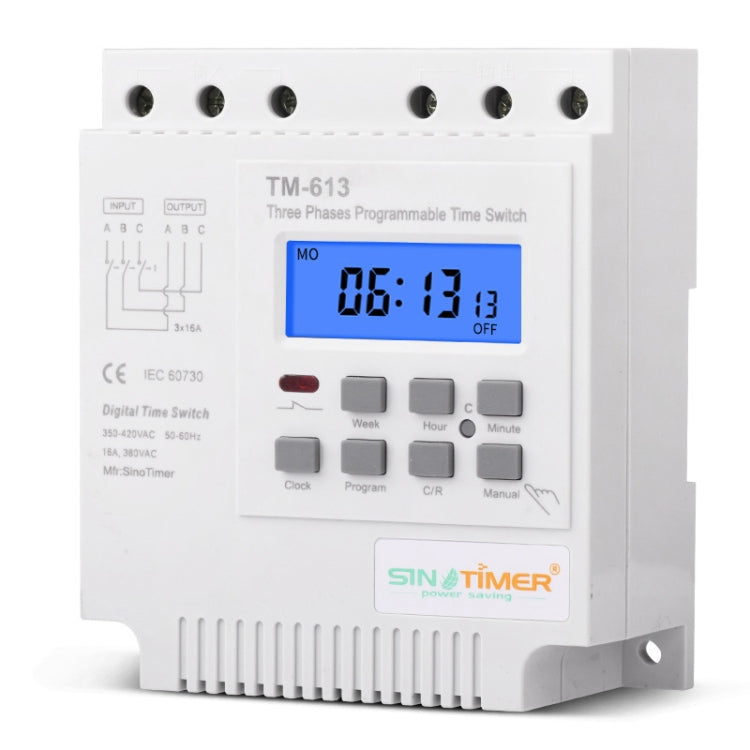

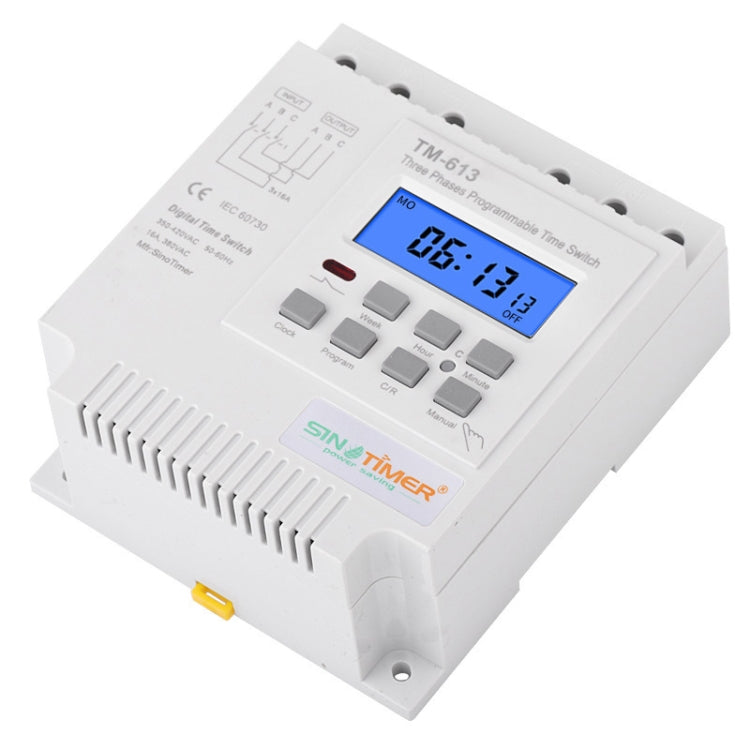

1. TM613 programmable three-phase timer switch, three live wire input, three live wire output, solves the inconvenience of neutral wire for some customers.
2. Widely used in water pumps, pond aerators, water distillers, water heaters, billboards, neon lights, exhaust fans and other three-phase 350V-420VAC motors and other equipment, to achieve unmanned management, safe and reliable, stable performance, is a very good choice.
3. Three-phase digital timer switch, 7 days 24 hours，preset one week in advance
4. Single channel, voltage output.
5. Control accurate to the minute

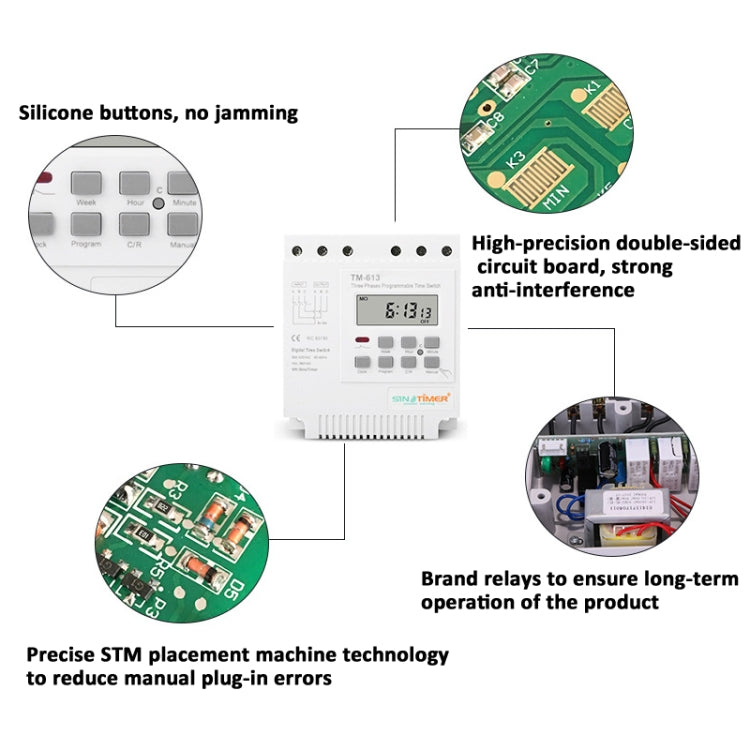

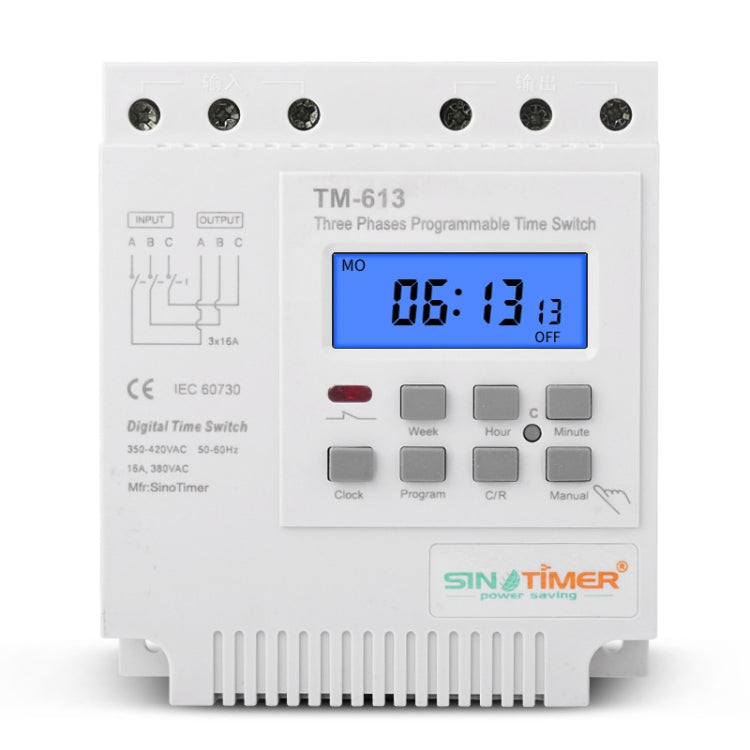

6. LED power indicator, high contrast LCD display
7. Reset function and manual control
Parameters:
1. Working voltage: 380V 50-60Hz
2. Control output: 16A (direct), can also be expanded for control
3. Setting times: 16 switches (day/week)
4. Setting time: 17 minutes to 168 hours
5. Timing error: 1s/24h
6. Power failure memory: 180 days

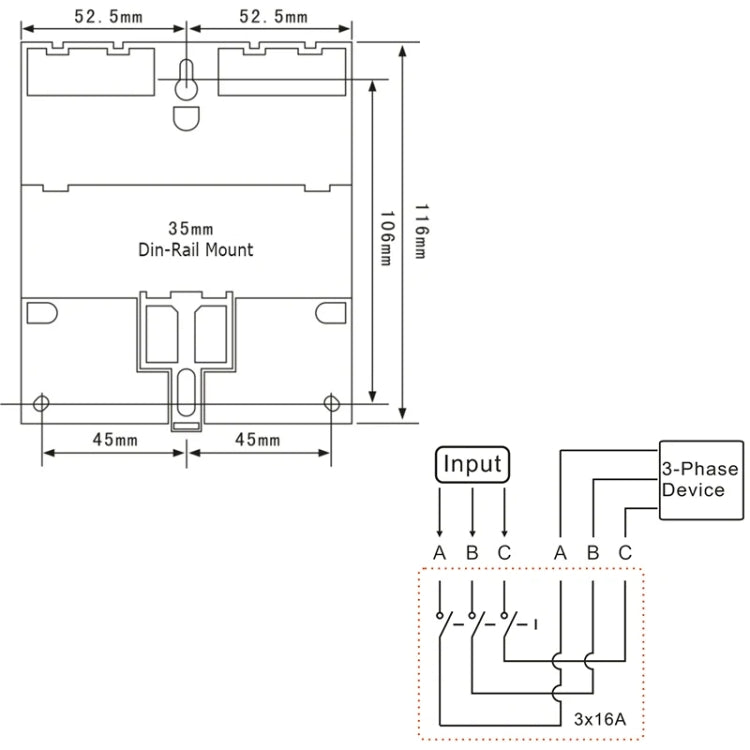

7. Overall dimensions: 120 x 120 x 52mm

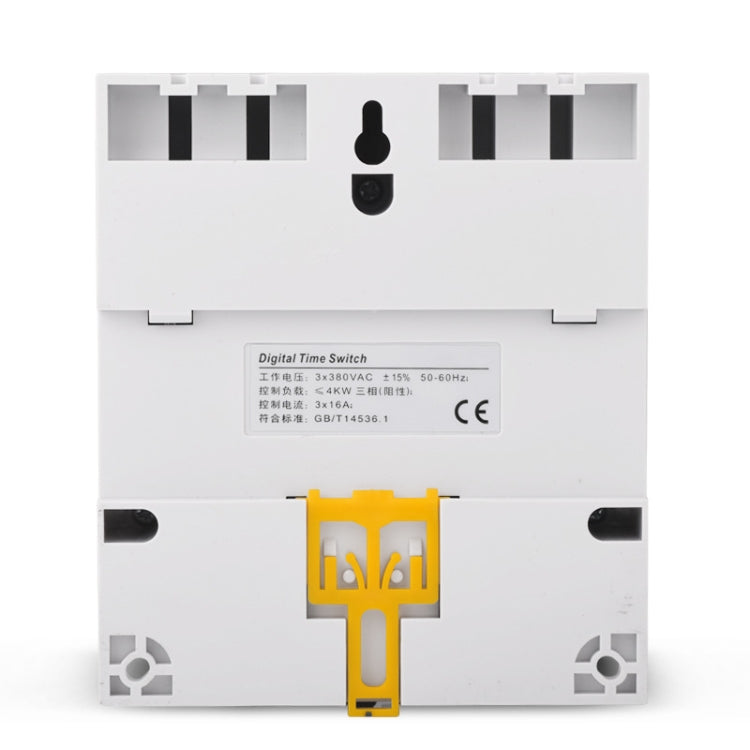

8. Mounting method: 35mm rail
Specification:
| Package Weight |
| One Package Weight |
0.50kgs / 1.10lb |
| One Package Size |
14cm * 13cm * 8cm / 5.51inch * 5.12inch * 3.15inch |
| Carton Weight |
12.60kgs / 27.78lb |
| Carton Size |
30cm * 41cm * 3cm / 11.81inch * 16.14inch * 1.18inch |
| Loading Container |
20GP: 7226 cartons * 24 pcs = 173424 pcs
40HQ: 16776 cartons * 24 pcs = 402624 pcs
|
|
