TBK 988N dual pump separator built-in large pump manual vacuum LIQUID crystal screen separator - ORIWHIZ

Load image into Gallery viewer, TBK 988N dual pump separator built-in large pump manual vacuum LIQUID crystal screen separator - ORIWHIZ

Description Reviews

Product Features:

Mobile phone repair shop must, Use double pumps, with strong suction, Accurate temperature, the highest temperature is 350. Curved screen to remove glue, straight screen separator, using temperature 80 degrees, pulling gold wire to separate screen

1. Auto heating metal plate, maximum temperature is 400 centigrade

2. Built in 2 vacuum pumps , Super Strong Suction

3. Safety power system inside, avoiding the electric leakage problem

4. Anti static body material, prevent the LCD and the flex cable being damaged from the static

5. Easy installation

6. Silicon mat to stick the touch screen without any damaged

7. Temperature should be set to 80 centigrade to 100 centigrade, when you do the job on iPhone and galaxy series

8. 2 bearings to last long the life of the wire you use to separate, and prevent your hands be hurt by the high temperature platform

9. Compatible for LCD or LED screen assembly , Curved Screen Glue Removal .

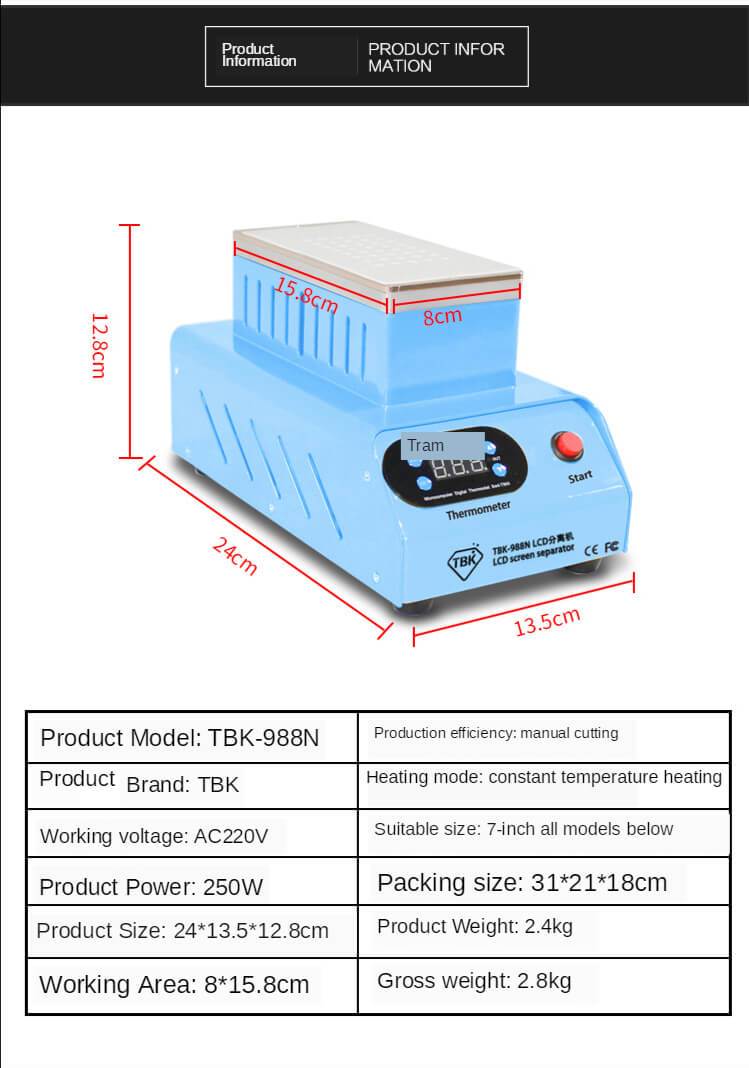

Specifications:

1. Voltage: 100-240V
2. Power: 250W
3. Heating table size: 80*158mm
4. Machine size: 240 * 135 * 128mm
5. Packing size: 310*210*180mm
6. Net weight: 2.4KG
7. Package: 2.8KG

How to use it：

1. Turn on the power: Insert the power cord into the power port on the back of the separator and turn on the power switch.
2. Preset temperature: Press the SET button to preset thetemperature, press the up button to set the temperature toabout 85 degrees, and press NET to save.
3. Prepare wire handle: Equipped with wire handle to separatethe screen.
4. Place the silicone anti-skid pad: Place it on the panel of theseparator Align the pad with the panel holes.
5. Preparation for screen separation: Put the screen to beseparated into the center of the panel, press the start buttonto start vacuum adsorption, and make sure that the screen issucked.
6. Start cutting screen: the screen can be preheated for 3-5minutes to start cutting.
7. After separating the burst screen, turn off the power of theseparator. If it is dry glue, you can tear it off directly by hand

Post Your Needs Information

TBK 988N dual pump separator built-in large pump manual vacuum LIQUID crystal screen separator

Brand: Oriwhiz Replace Parts

Availability:50 pieces remain(Low stock) will be shipped within 24 hours

Product Code: 2101105

Leadtime: Find estimated receipt time in the shopping cart

$95.00
