1. Resolution: 1080 × 1280
2. Scanning angle: pitch 55 degrees; Tilt 70 degrees; Rotation 360 degrees
3. Scanning modes: inductive scanning, continuous scanning, Button scanning (default)
4. Communication interface: USB keyboard mode (default), USB virtual serial port, UART serial port

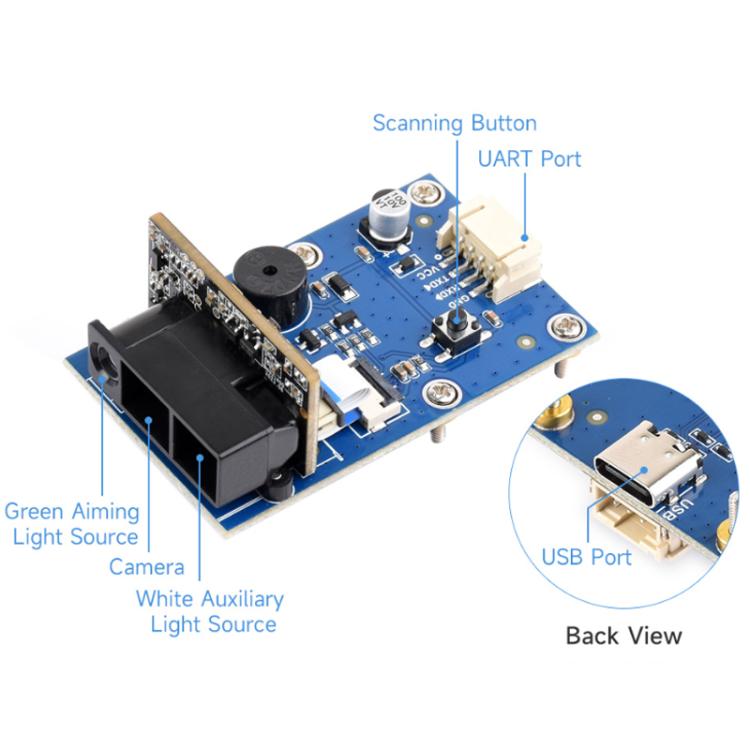

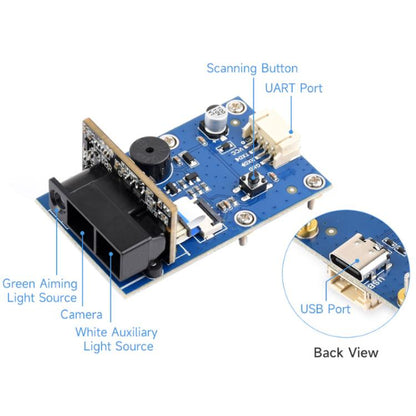

5. Light source: white light illumination, Green light aiming (both visible light)
6. Voltage: 5V
7. Working current: 270mA
8. Standby current: 140mA

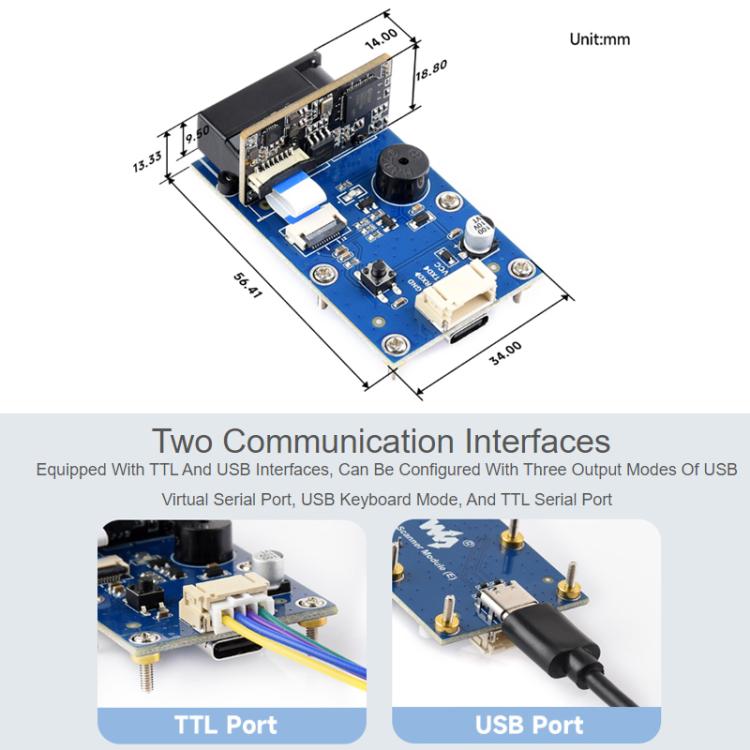

9. Equipped with dual TTL and USB hardware interfaces, configurable for three output modes: USB virtual serial port, USB keyboard mode, and TTL serial port.

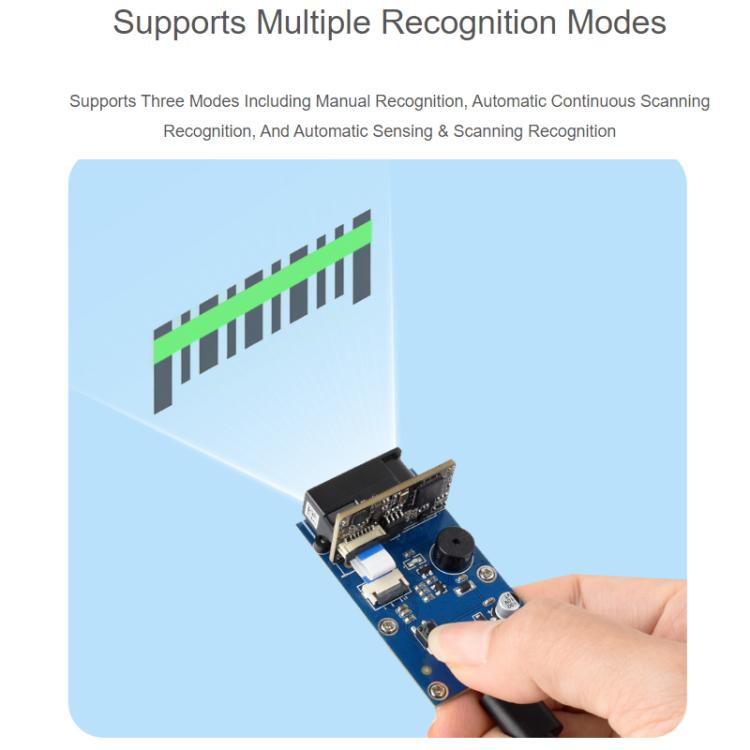

10. Supports three modes: manual button trigger reading, automatic continuous scanning reading, and automatic inductive scanning reading.

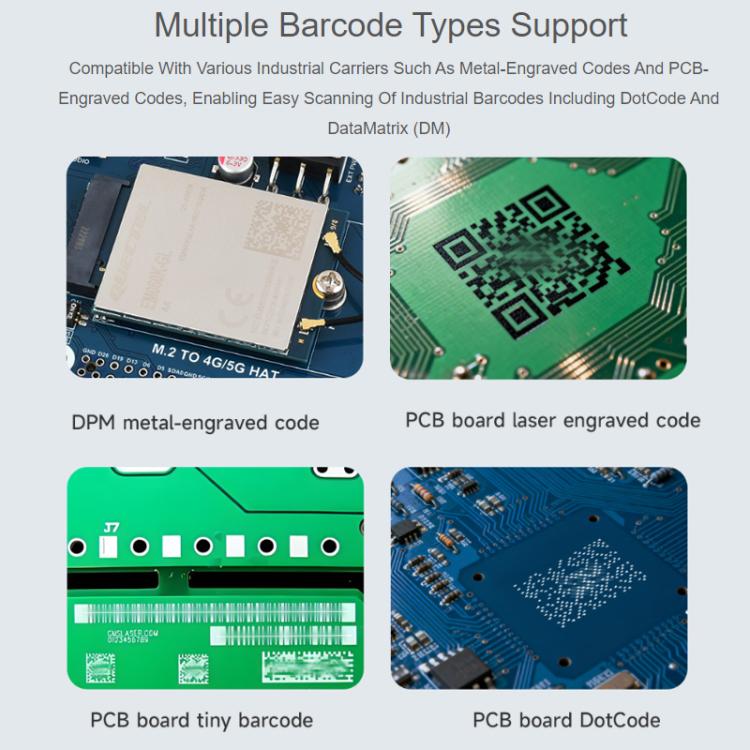

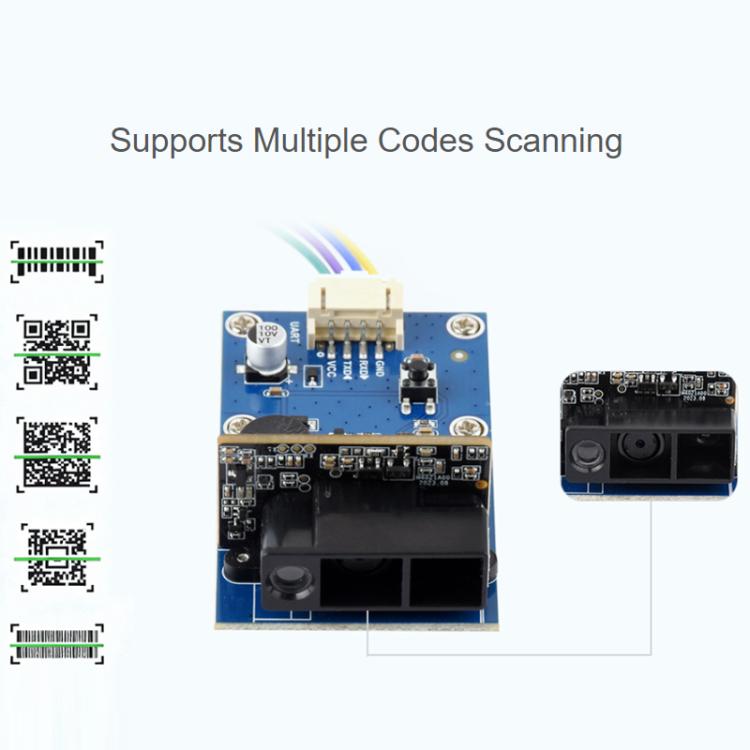

11. Supports a variety of barcode types, compatible with various industrial carriers such as metal engraved codes and PCB board engraved codes, easily scanning industrial-specific barcodes such as DotCode and DM.
Specification:
| Package Weight |
| One Package Weight |
0.06kgs / 0.14lb |
| One Package Size |
8cm * 8cm * 5cm / 3.15inch * 3.15inch * 1.97inch |
| Carton Weight |
9.80kgs / 21.61lb |
| Carton Size |
50cm * 34cm * 32cm / 19.69inch * 13.39inch * 12.6inch |
| Loading Container |
20GP: 490 cartons * 144 pcs = 70560 pcs
40HQ: 1137 cartons * 144 pcs = 163728 pcs
|
|
