Waveshare

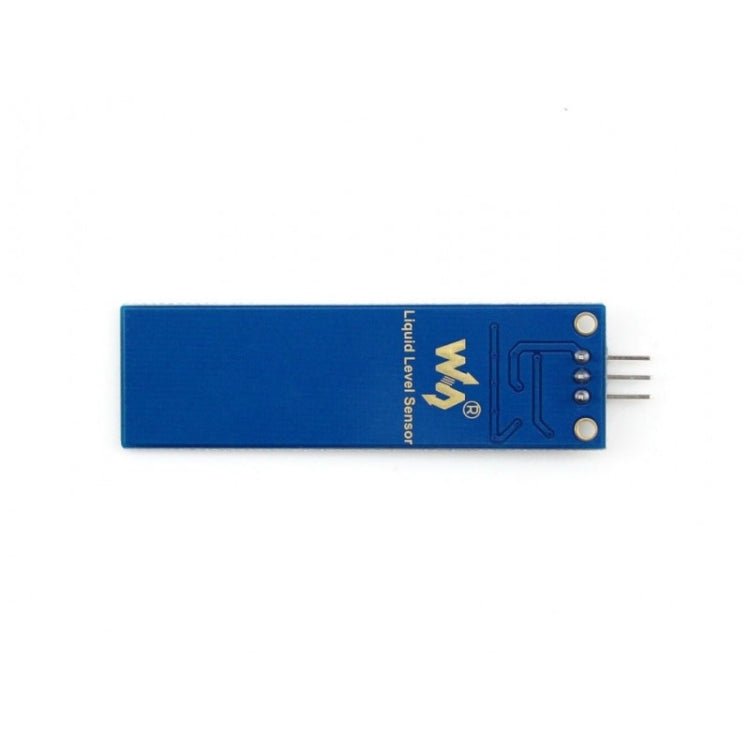

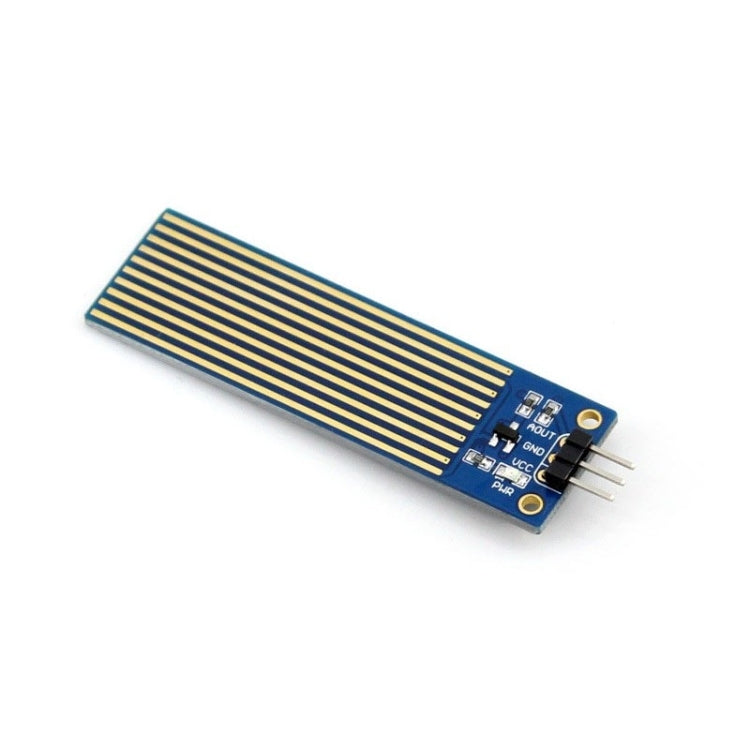

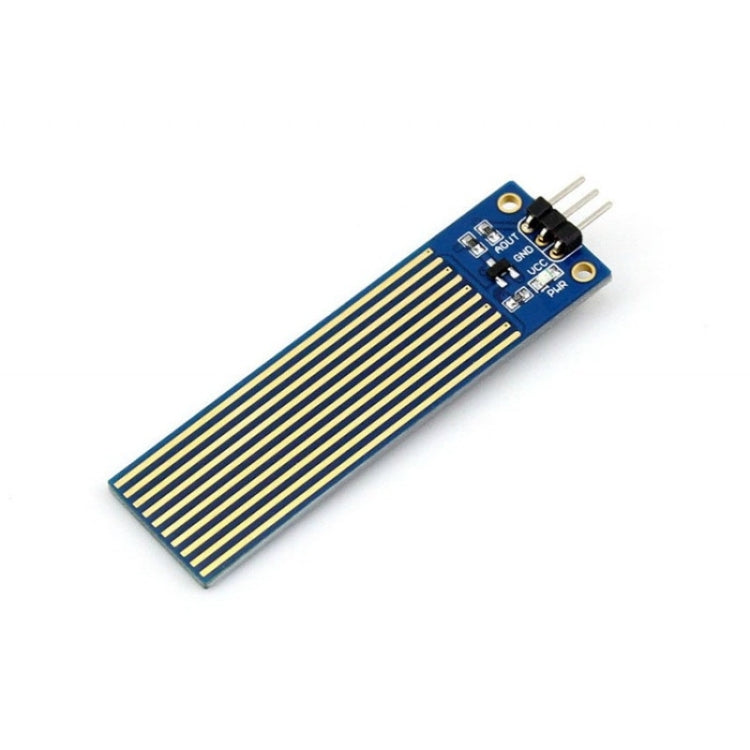

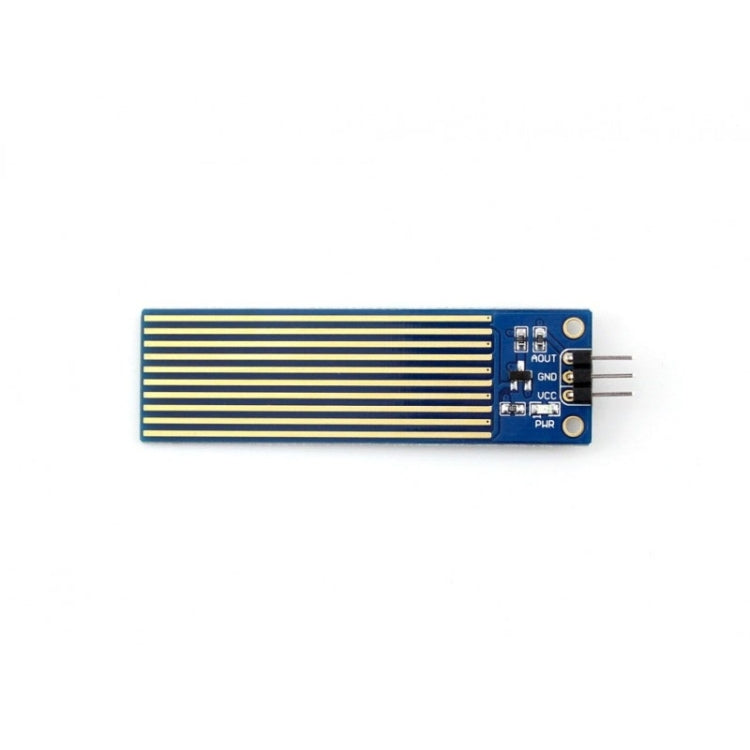

Waveshare Liquid Level Sensor, Liquid
Waveshare Liquid Level Sensor, Liquid
Regular price
$3.71 USD
Regular price
Sale price
$3.71 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Overview
Output voltage boosts along with the immersion depth of the module
Specifications
1. Detection depth: 48mm
2. Power: 2.0V ~ 5.0V
3. Dimension: 19.0mm * 63.0mm
4. Mounting holes size: 2.0mm
Applications
Water level alarm

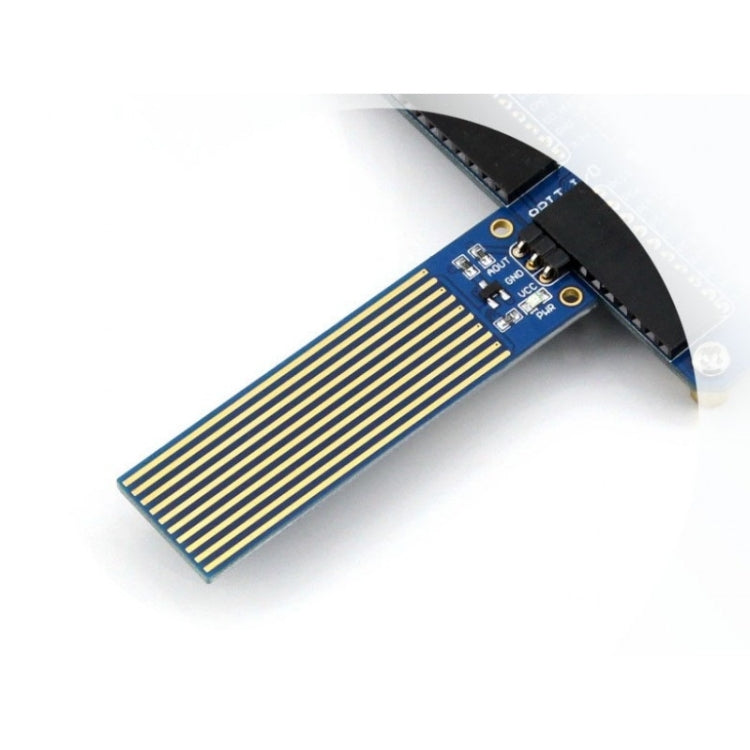

How to Use
In the case of working with a MCU:
1. VCC-- 2.0V ~ 5.0V
2. GND--Power supply ground
3. AOUT--MCU.IO (analog output)
View full details
Output voltage boosts along with the immersion depth of the module
Specifications
1. Detection depth: 48mm
2. Power: 2.0V ~ 5.0V
3. Dimension: 19.0mm * 63.0mm
4. Mounting holes size: 2.0mm
Applications
Water level alarm
How to Use
In the case of working with a MCU:
1. VCC-- 2.0V ~ 5.0V
2. GND--Power supply ground
3. AOUT--MCU.IO (analog output)
Specification:
| Package Weight |
|
