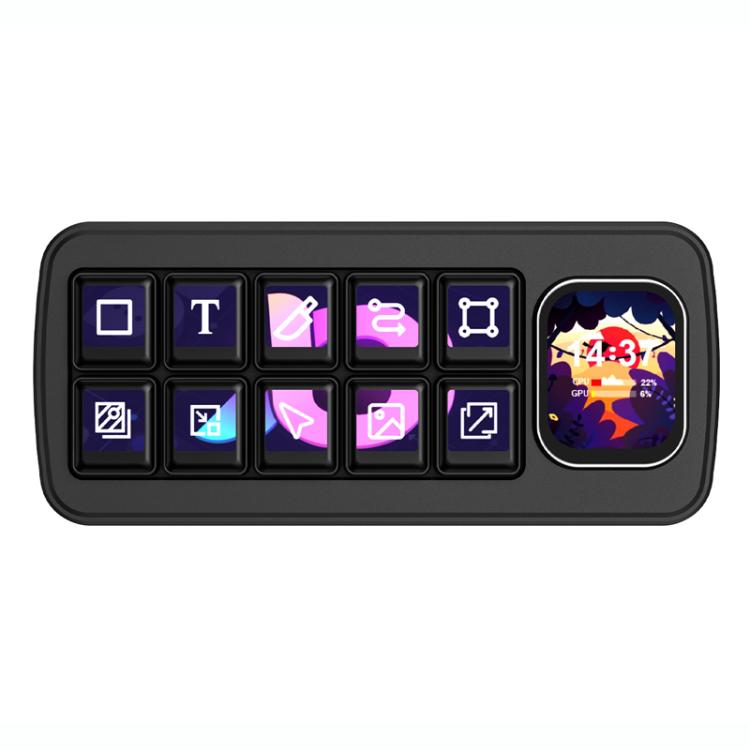

WAVESHARE MK10 Multi-Functional AI Voice Control Panel

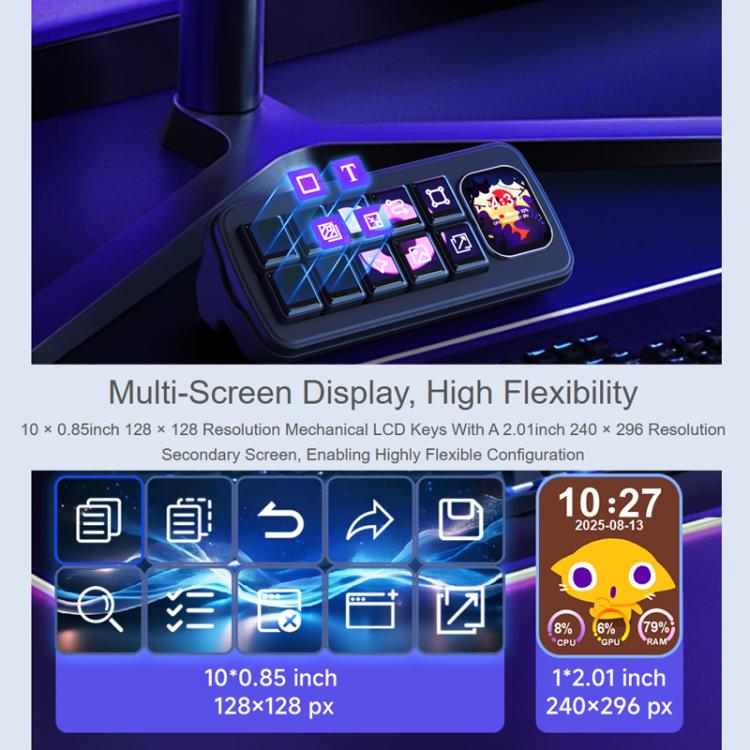

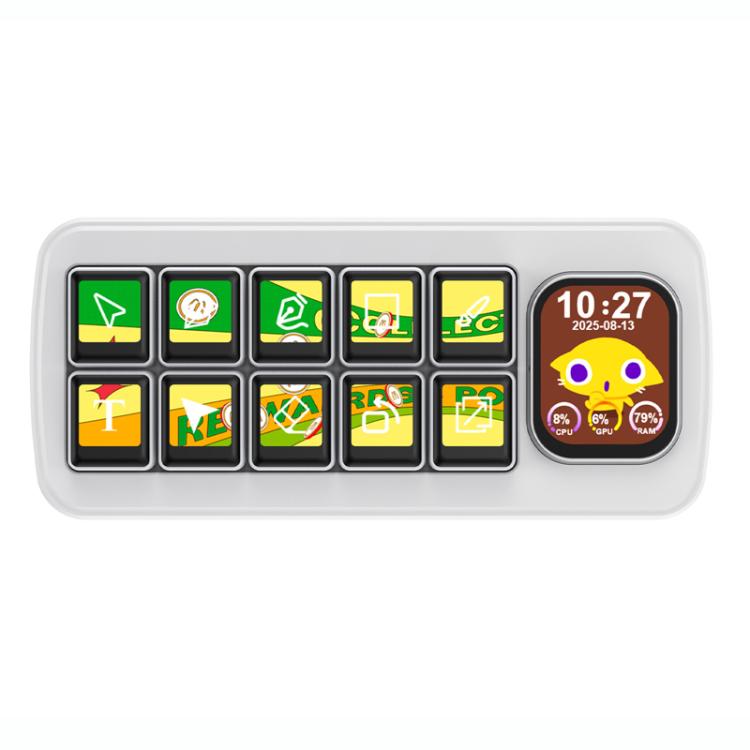

1. 10 128 x 128 resolution 0.85-inch mechanical display buttons with 1 240 x 296 resolution 2.01-inch secondary screen for high freedom of configuration
2. Support 10-screen splicing display, background support pictures/video, and can be multi-layer overlay

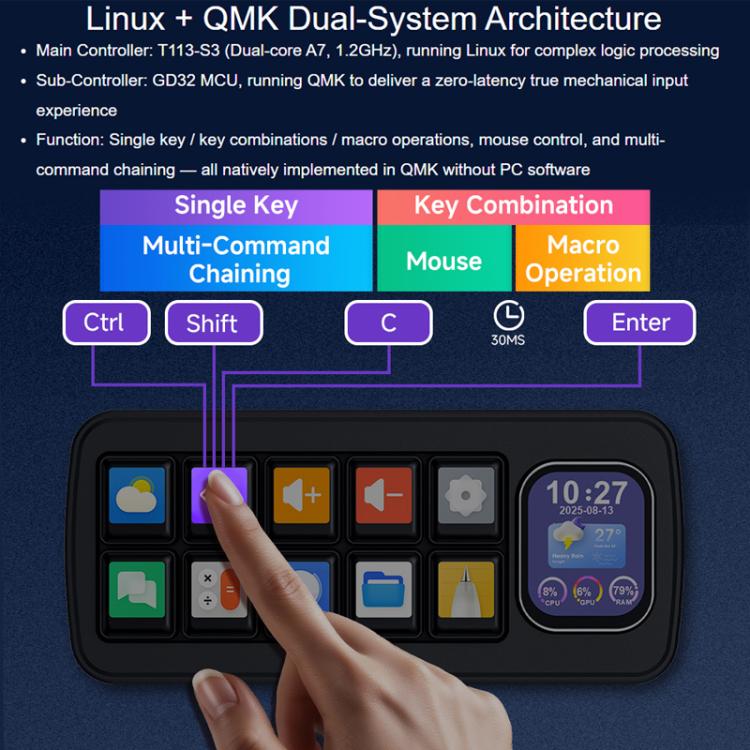

3. Linux + QMK dual system architecture:
- Main control: T113-S3 (A7 dual-core 1.2GHz) running Linux, processing complex logic

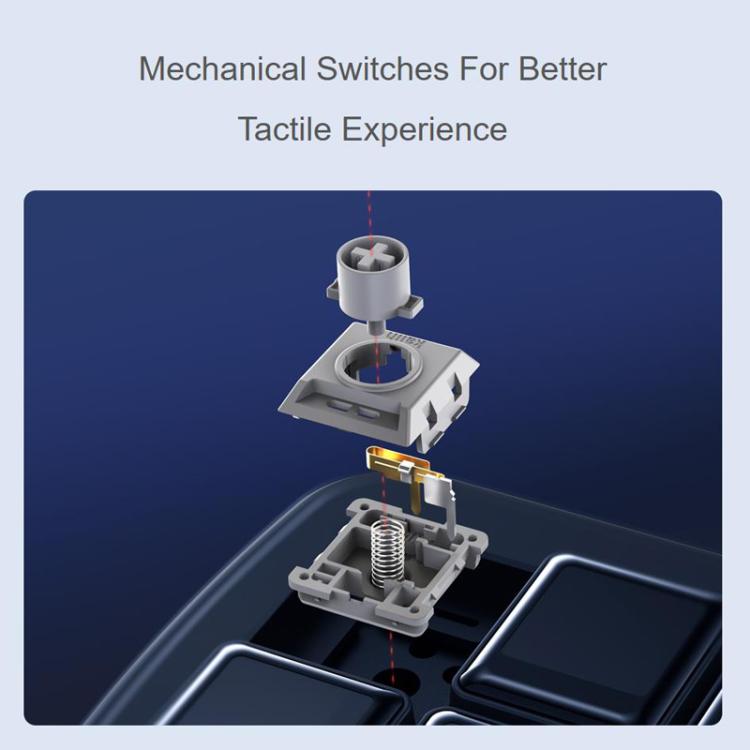

- Co-controller: GD32 MCU running QMK to realize real mechanical input experience with 0 latency

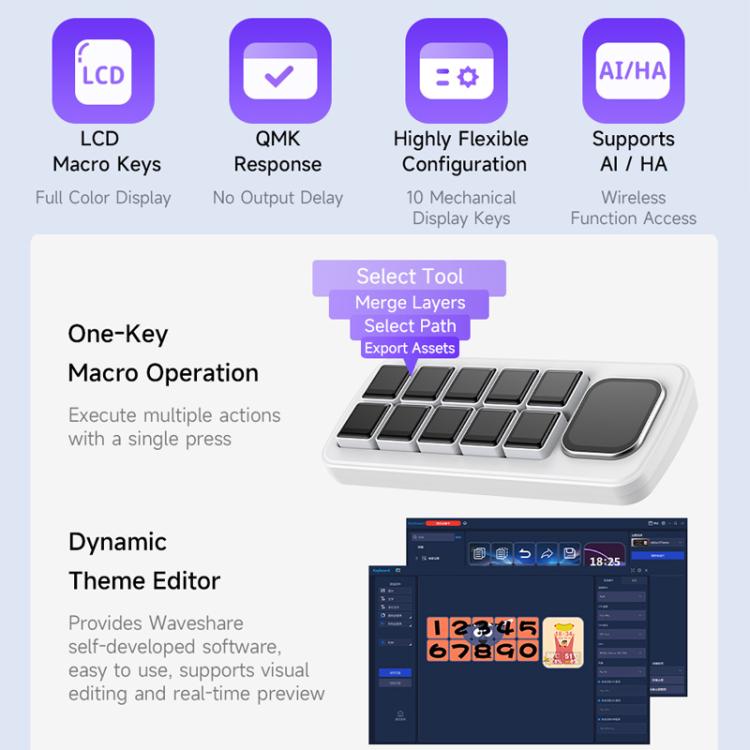

- Support functions: single-key/key combination/macro mouse control and multi-command cascade, QMK natively realized, no need to rely on computer software
4. Built-in theme editor: drag-and-drop editing, no need to write code

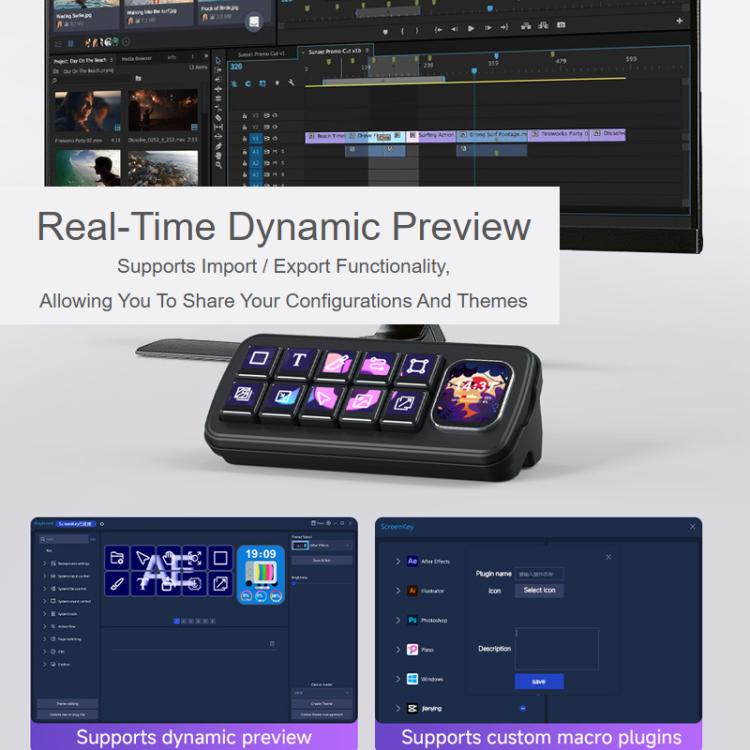

5. Import/export function to share your configuration and themes

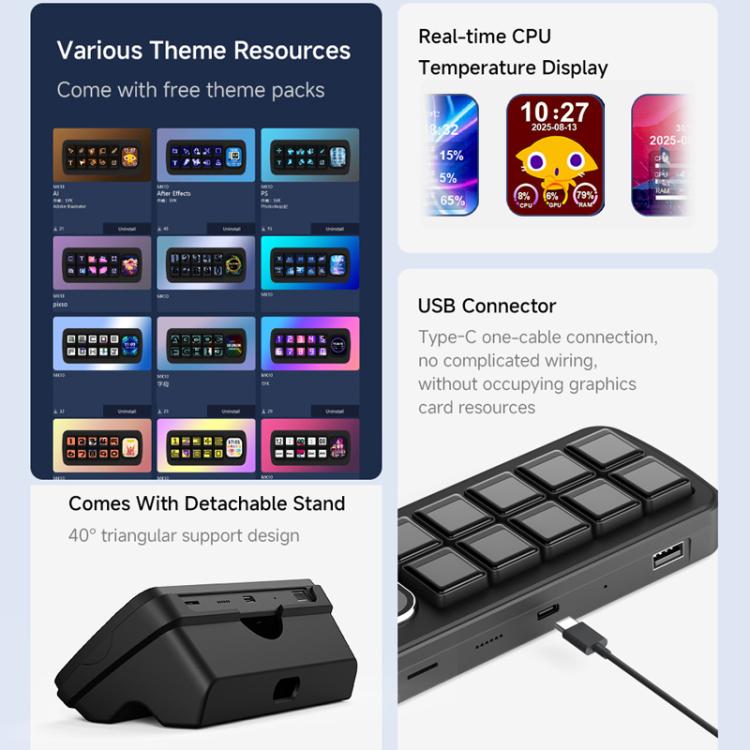

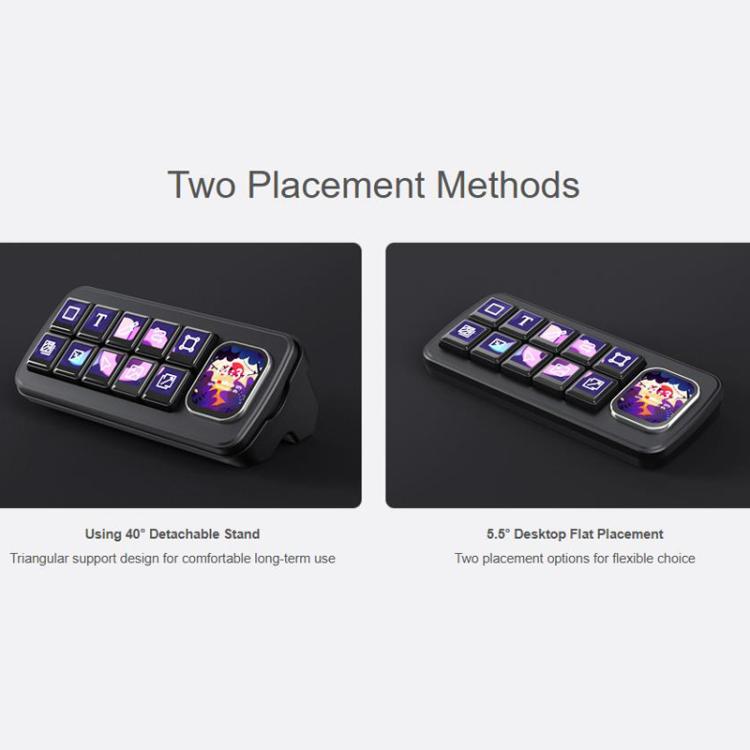

6. With 40 degrees removable stand, triangular support design, long time press does not get tired, can be 5.5 degrees desktop flat, two ways of placing, choose at will

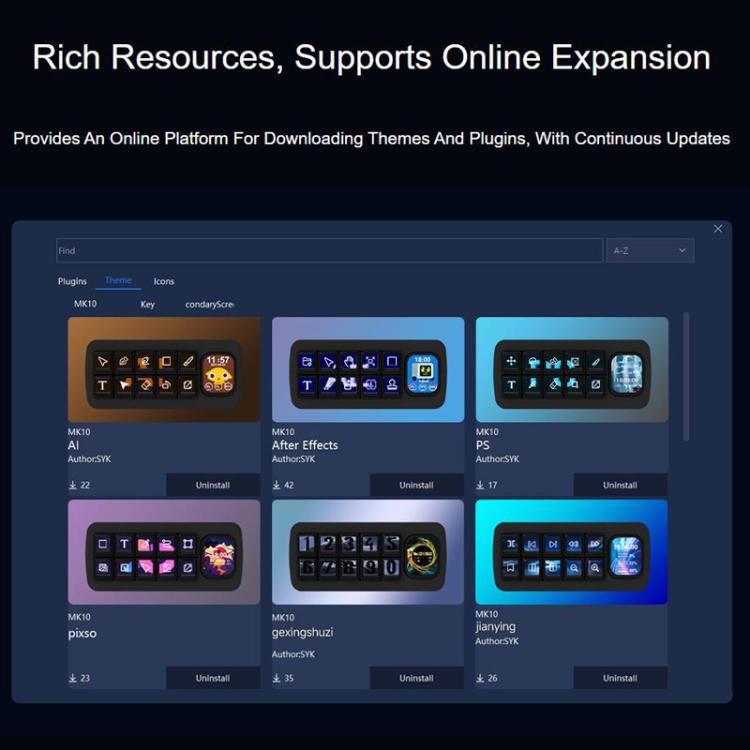

7. Provide online platform to download themes and plug-ins, continuously updated
8. Support real-time call LibreHardwareMonitor and Openweather data:
- LibreHardwareMonitor: real-time display of CPU temperature, fan speed and other hardware information
- Openweather: Integrate weather information as a dynamic background display

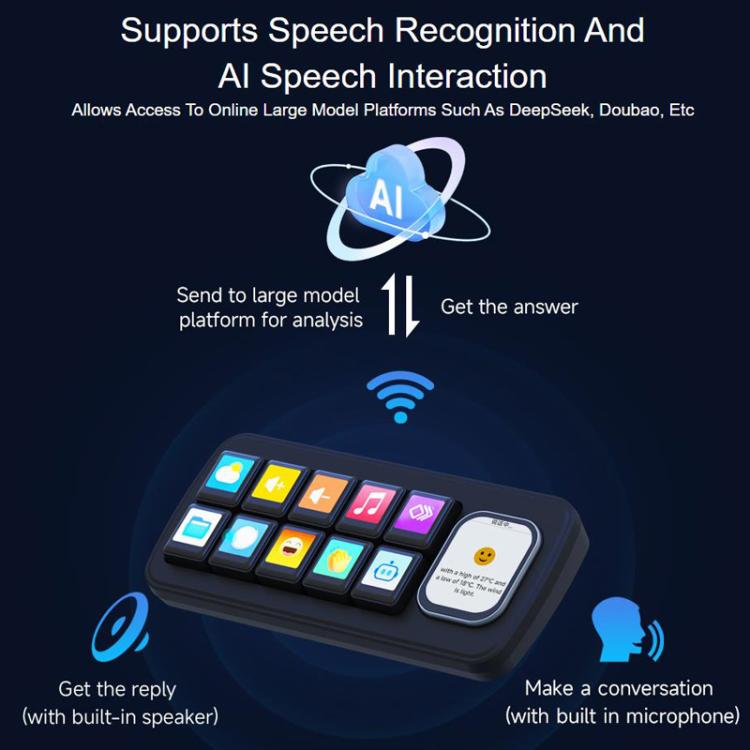

9. Supports voice recognition and AI voice interaction.

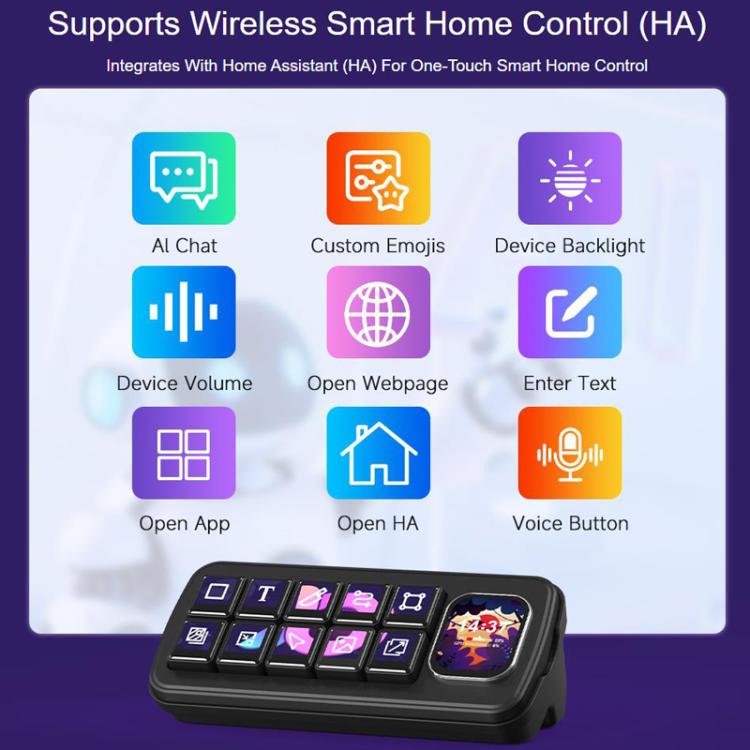

10. Support wireless control of smart home

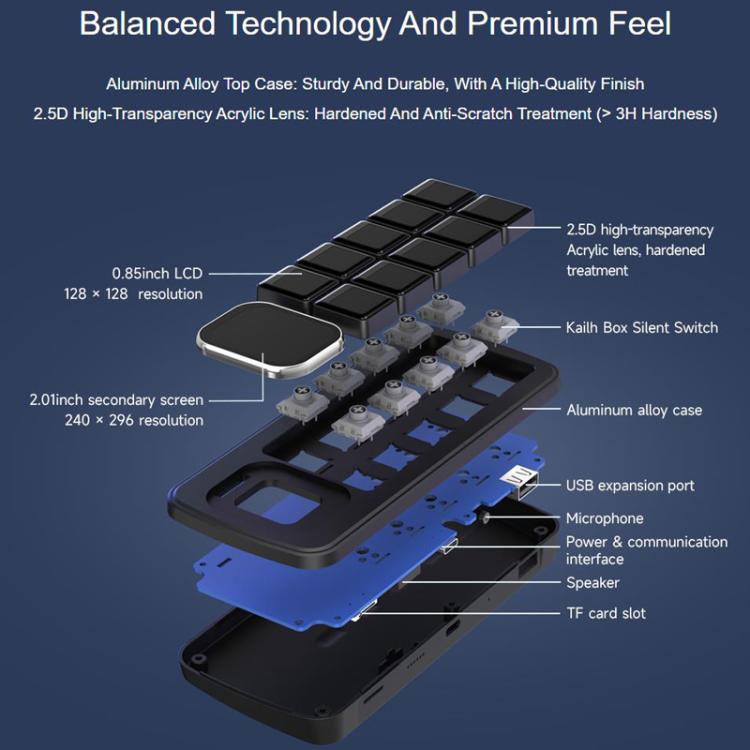

11. Aluminum alloy upper shell: rugged and durable, craft-class texture
12. 2.5D high-transparency acrylic lens: hardened, scratch-resistant (more than 3H hardness)

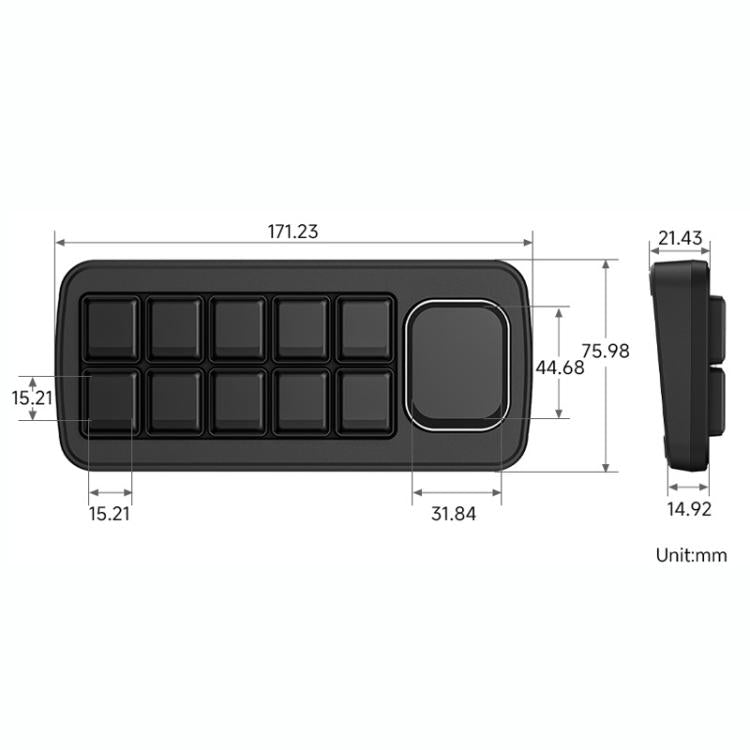

13. Size: about 17.1 x 7.6 x 2.1cm

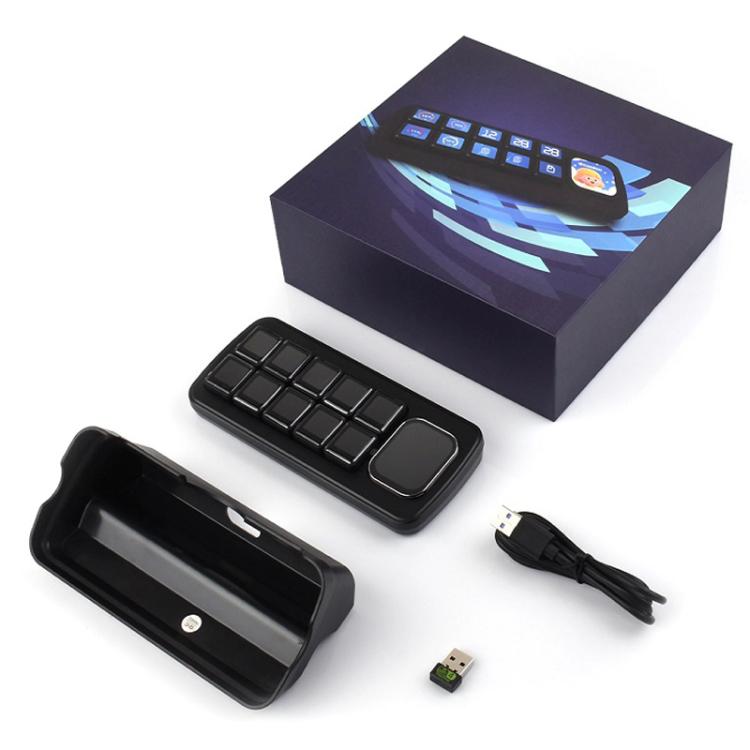

Packing list:
- Control panel x 1
- Bracket x 1
- Type-C cable x 1
- Wi-Fi receiver x 1
