Waveshare W25QXX DataFlash Board, W25QXX
Waveshare W25QXX DataFlash Board, W25QXX
Regular price
$11.34 USD
Regular price
Sale price
$11.34 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

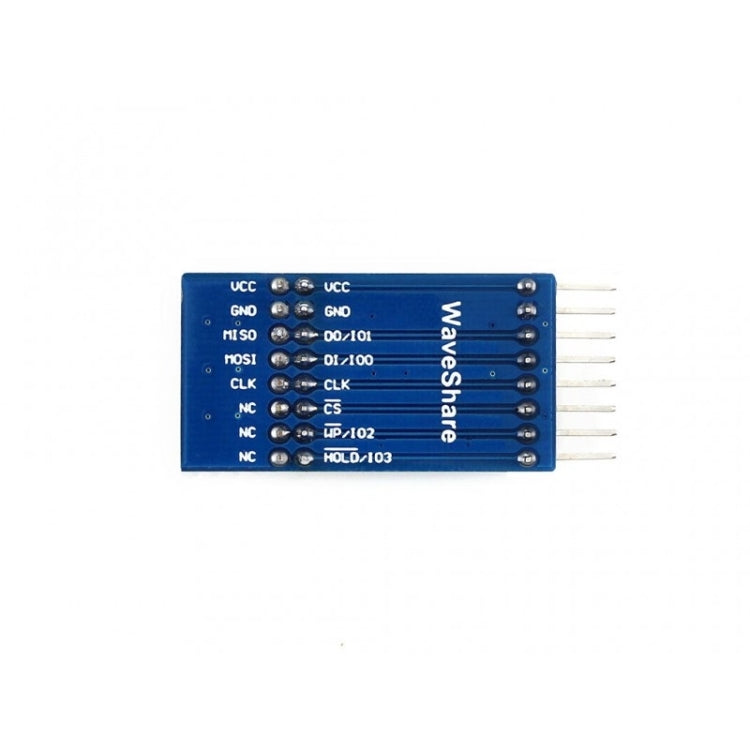

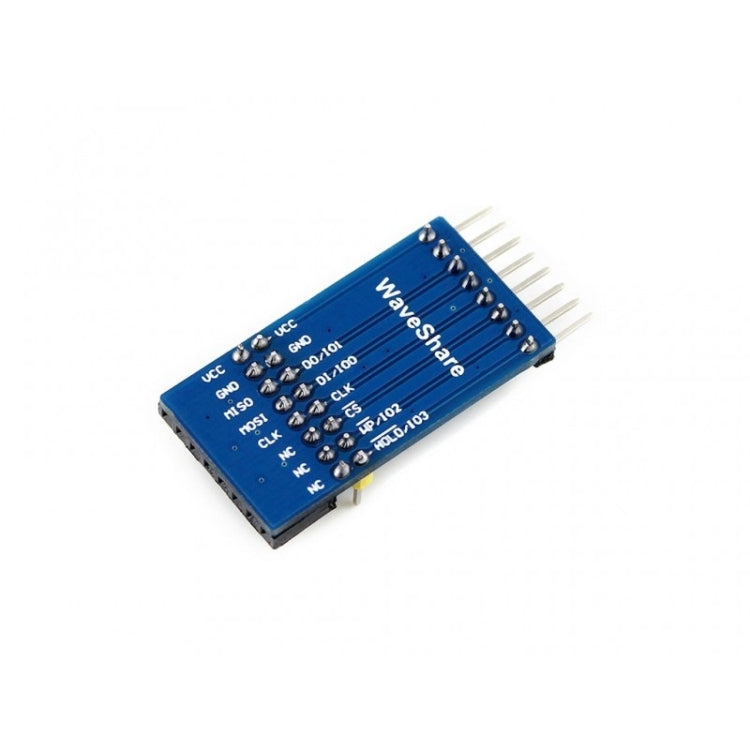

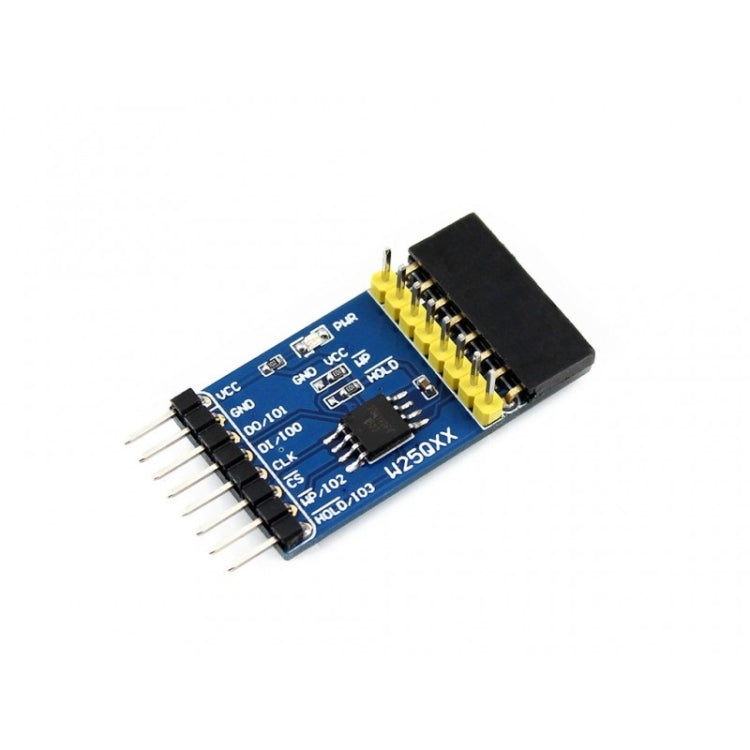

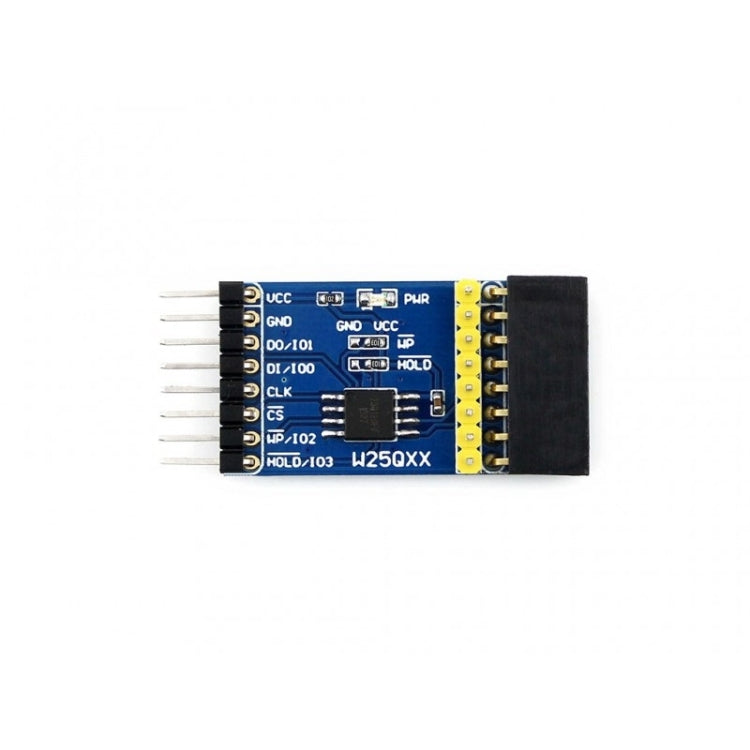

Serial DataFlash Module with W25Q128JV Onboard, SPI Interface
Overview
1. Onboard serial NOR Flash memory W25Q128JV
2. Support Standard/Dual/Quad SPI
3. Support STM32F7 series Quad-SPI interface, provides related cube library demo
Features
1. Capacity: 128M-bit / 16M-byte
2. Max frequency: =<133MHz
3. Operating voltage: 2.7~3.6V
4. Operating temperature: -40 degree C ~ +85 degree C
Dimension: 20.6mm x 38.9mm
View full details
Overview
1. Onboard serial NOR Flash memory W25Q128JV
2. Support Standard/Dual/Quad SPI
3. Support STM32F7 series Quad-SPI interface, provides related cube library demo
Features
1. Capacity: 128M-bit / 16M-byte
2. Max frequency: =<133MHz
3. Operating voltage: 2.7~3.6V
4. Operating temperature: -40 degree C ~ +85 degree C
Dimension: 20.6mm x 38.9mm
Specification:
| Package Weight |
|
