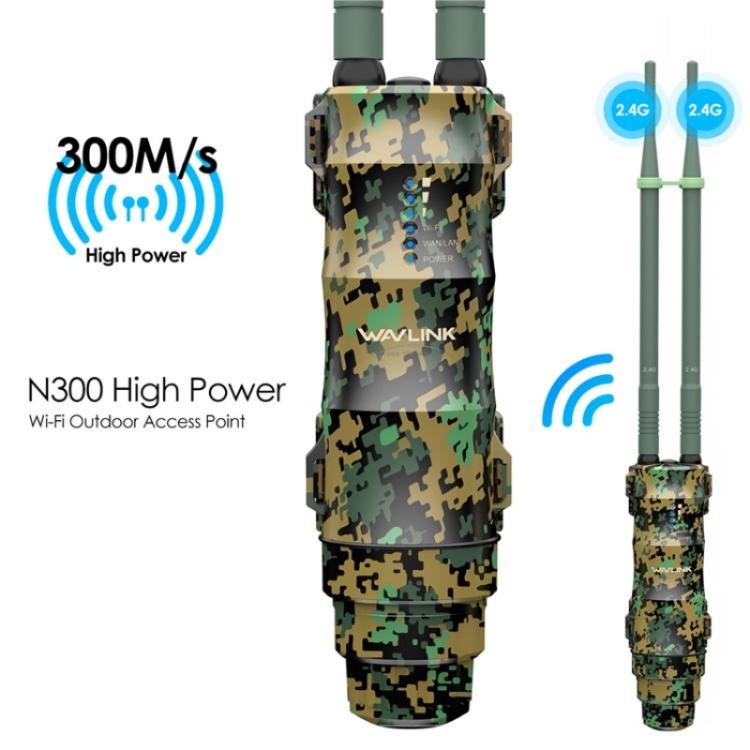

1.High-Power Outdoor Router:WN570HN2 is a 300Mbps high-power outdoor router designed for robust outdoor connectivity

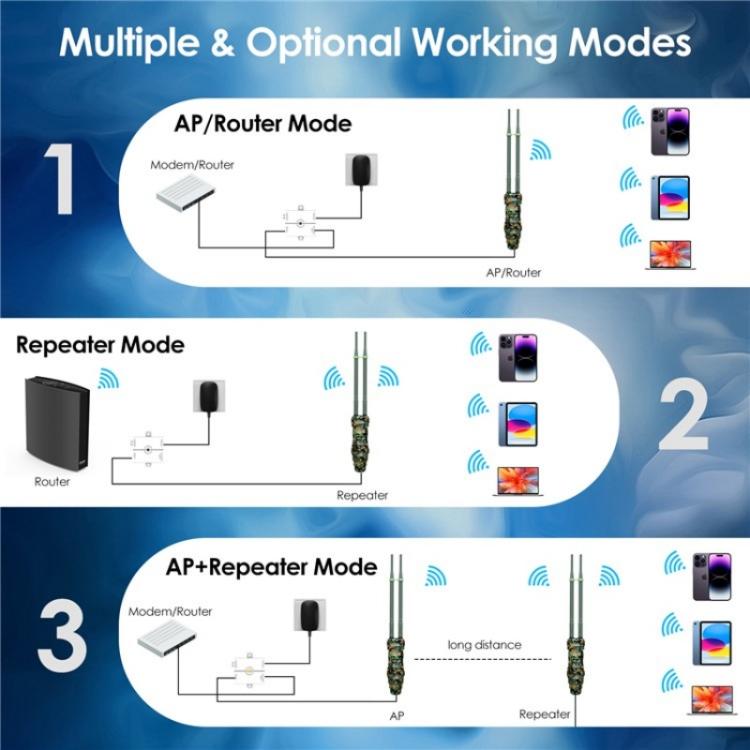

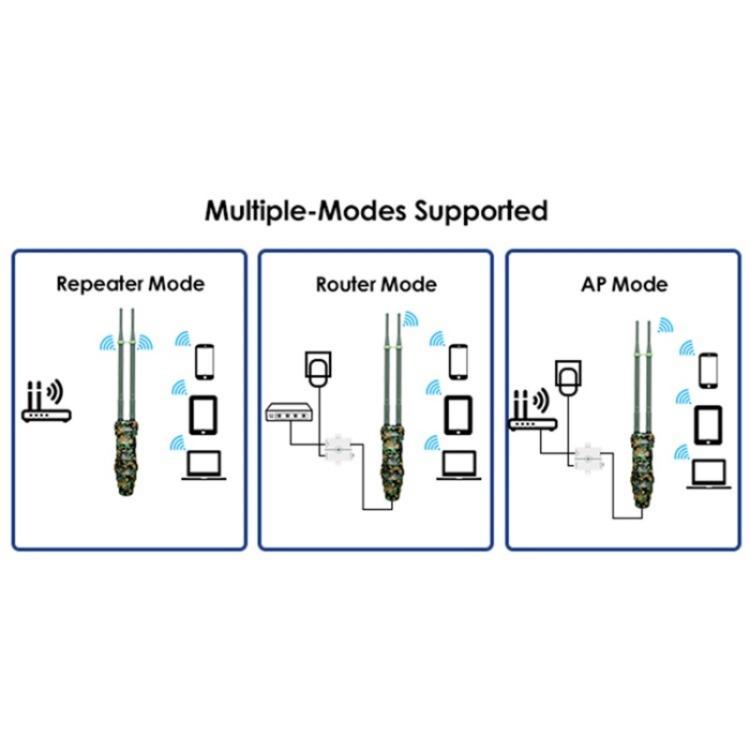

2.Versatile Operating Modes:Supports multiple modes including AP and Repeater, offering flexible deployment options for various networking needs

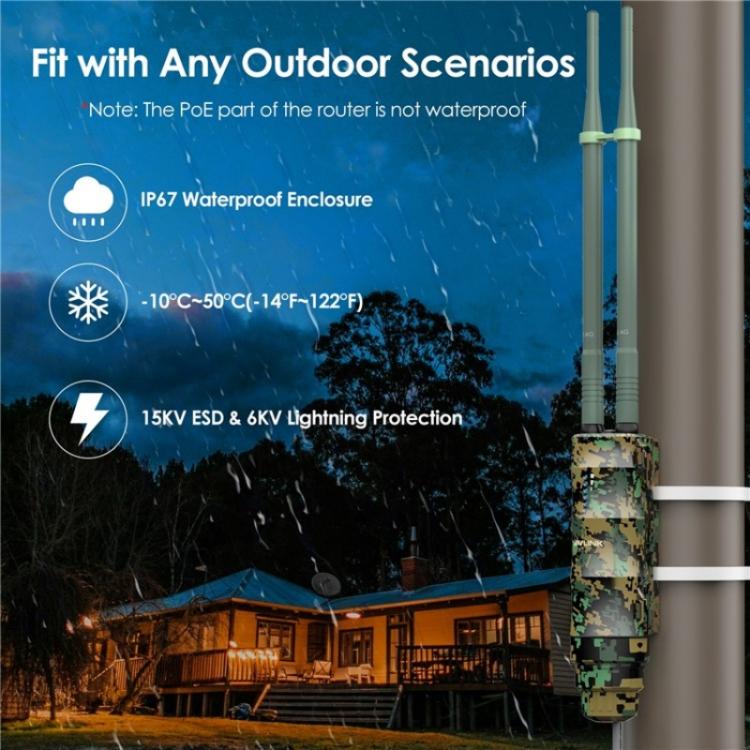

3.Weather-Resistant Design:Built to withstand outdoor conditions with a weatherproof enclosure, ensuring reliable performance in various environments

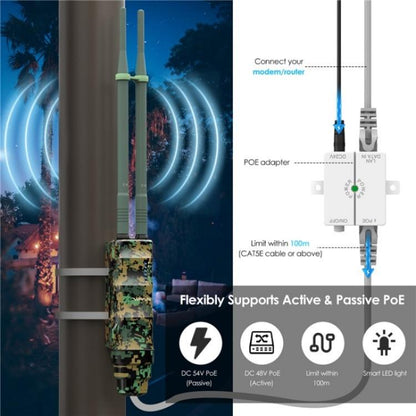

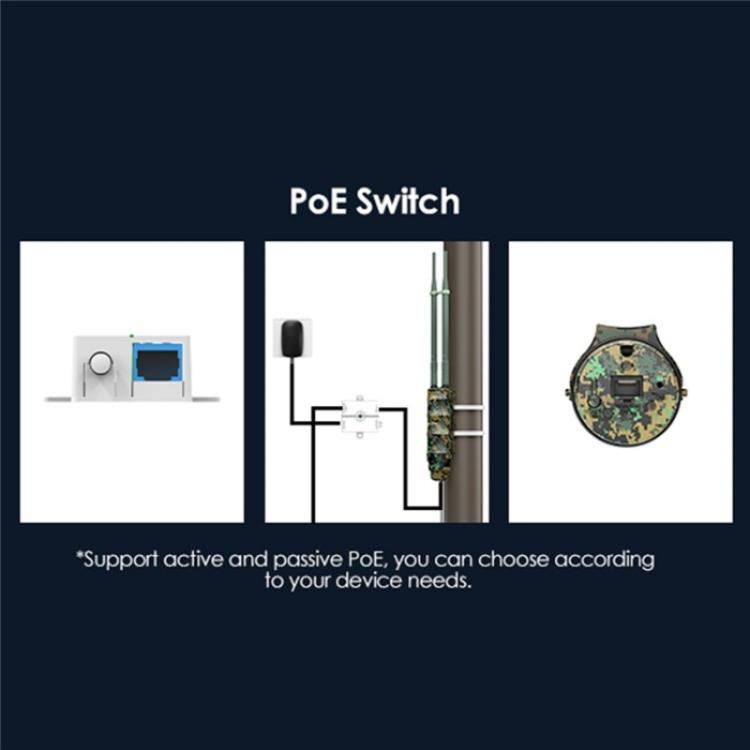

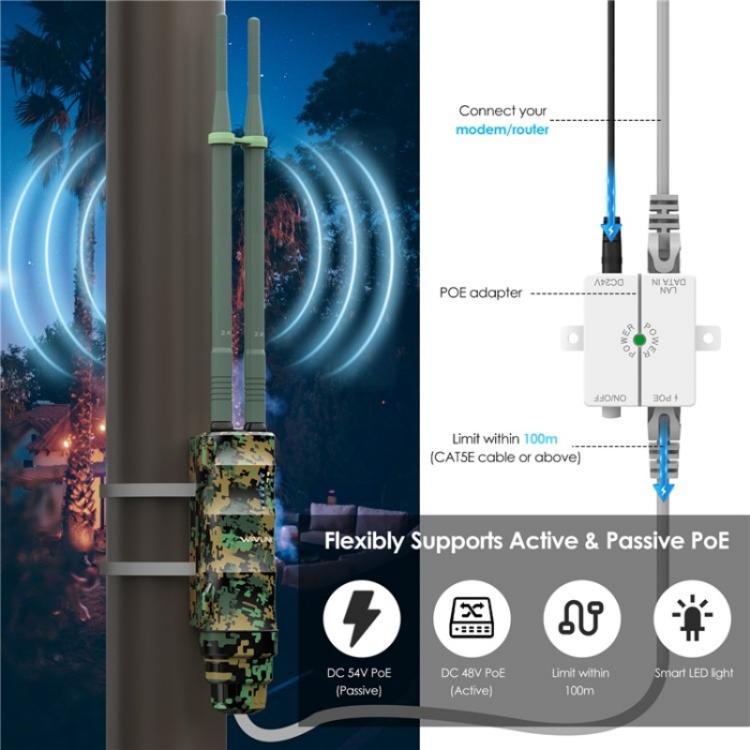

4.PoE Compatibility:Features Power over Ethernet (PoE) support, simplifying installation and power delivery in remote locations
5.High-Gain Antennas:Equipped with two 7dBi omnidirectional antennas for enhanced signal strength and coverage area
6.Strong Signal Transmission:Boasts a maximum transmission power of 30dBm, providing extended range for outdoor applications

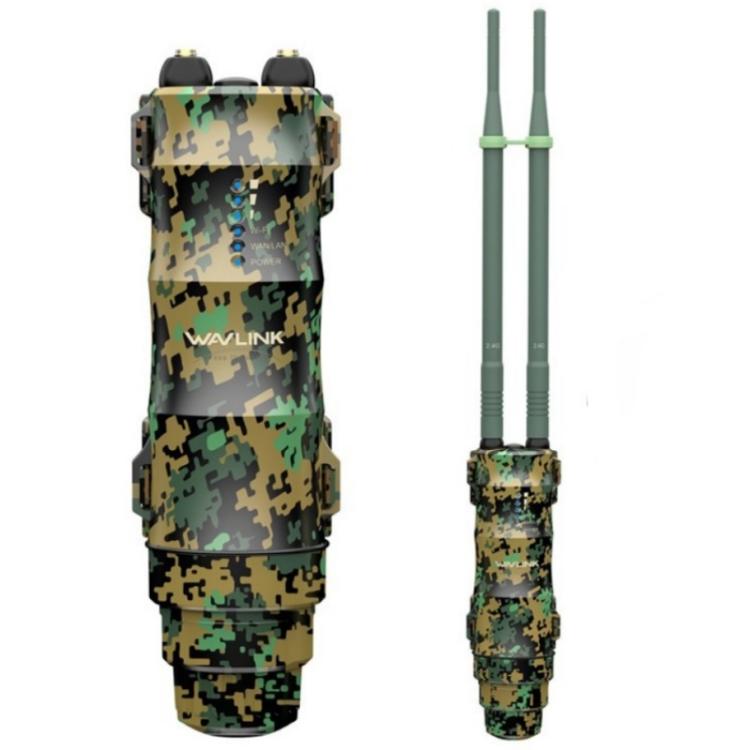

7.Easy Monitoring:Includes multiple LED indicators for power, WAN/LAN, WiFi, and signal strength, allowing for quick status checks
Specifications:
1.Model: WN570HN2

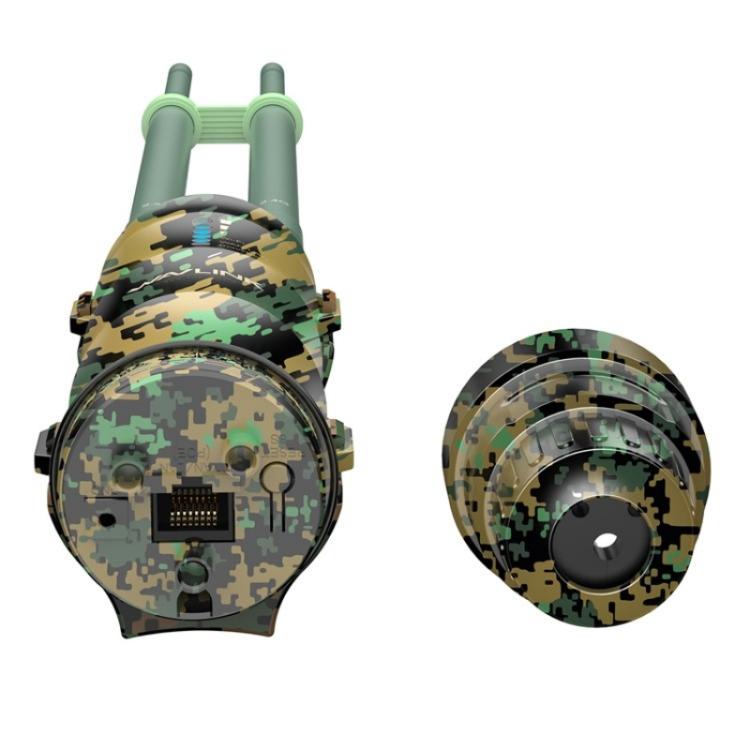

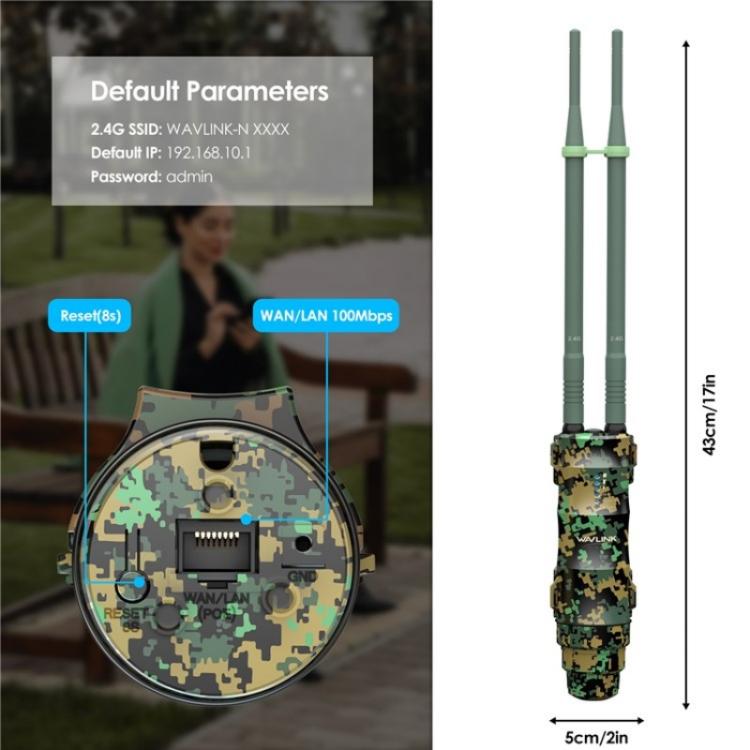

2.Ports: 1x 10/100Mbps WAN/LAN port
3.Buttons: 1x Reset button
4.LED Indicators: 1 * Power indicator, 1 * WAN/LAN indicator, 1 * WiFi indicator, 3 * Signal indicator
5.Power Supply: DC24V / 0.5A PoE
6.Input Voltage/Frequency: 100-240VAC, 50/60Hz
7.Dimensions: 180 × 50 × 50 mm (L×W×H)
8.Wireless Standards: IEEE 802.11b/g/n
9.Transmission rate: 802.11n: Maximum 300Mbps; 802.11a: Maximum 54Mbps; 802.11g: Maximum 54Mbps; 802.11b: Maximum 11Mbps
10.Working Band/Frequency: 2.4GHz
11.Antennas: 2x 7dBi omnidirectional
12.Maximum Transmission Power: 30dBm
13.Security: WPA-PSK/WPA2-PSK encryption
Specification:
| Package Weight |
| One Package Weight |
0.51kgs / 1.13lb |
| One Package Size |
28.8cm * 12.2cm * 6cm / 11.34inch * 4.8inch * 2.36inch |
| Carton Weight |
10.90kgs / 24.03lb |
| Carton Size |
60cm * 30cm * 26cm / 23.62inch * 11.81inch * 10.24inch |
| Loading Container |
20GP: 569 cartons * 20 pcs = 11380 pcs
40HQ: 1322 cartons * 20 pcs = 26440 pcs
|
|
