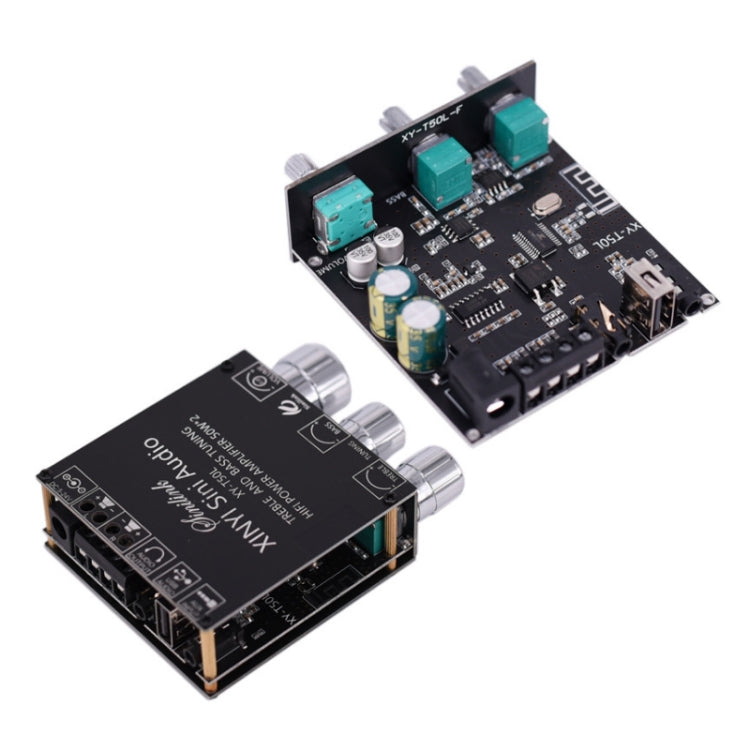

XY-T50L 12V Bluetooth 5.0 Audio Digital Class D Receiver Module With Amplifier

XY-T50L 12V Bluetooth 5.0 Audio Digital Class D Receiver Module With Amplifier

Regular price $10.86 USD
Regular price Sale price $10.86 USD
Sale Sold out
Shipping calculated at checkout.
Option

1. Adaptable power supply: DC5-26V/5A or more
2. Bluetooth version: 5.0
3. Audio input: Bluetooth + AUX + U disk + USB sound card
4. Volume adjustment: 360 degree infinitely adjustable encoder
5. Audio output: Passive speaker + 3.5mm audio interface
6. Output power: 50Wx2
7. Output filtering: filter-free
8. Protection mechanism: static electricity, overcurrent, short circuit, overheating, etc.
9. Heat dissipation method: heat sink + shell
10. Applicable speakers: 4-8 Ohm 10-200W

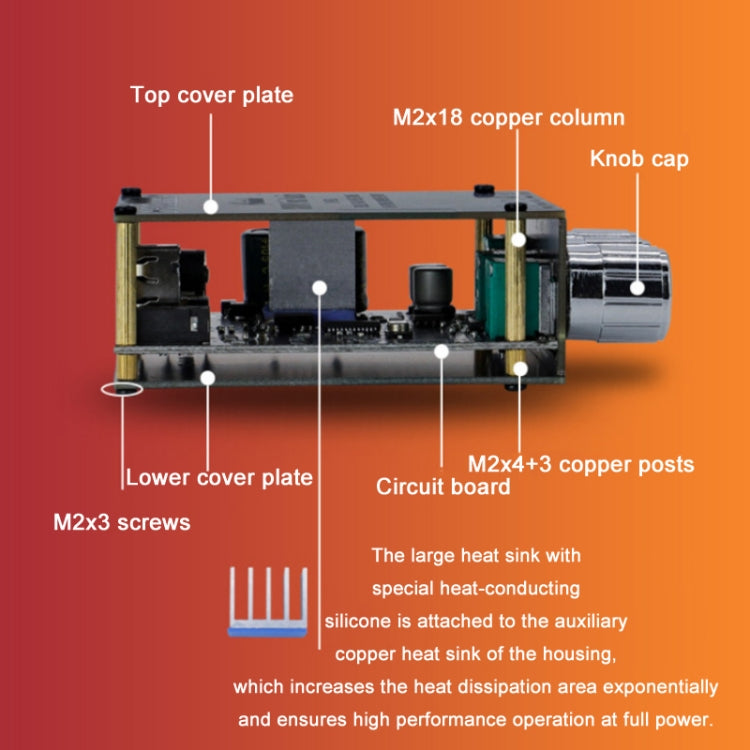

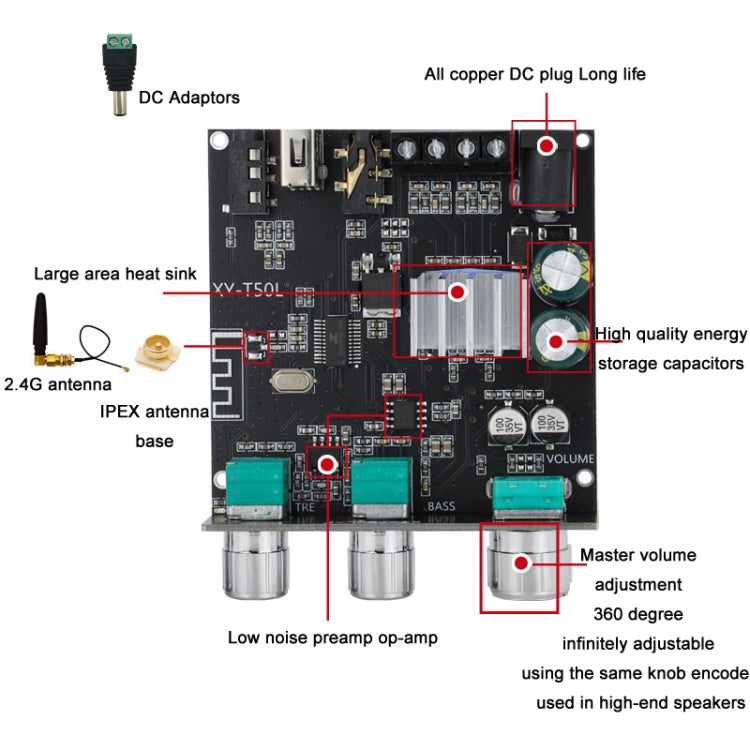

11. Large area heat sink with special heat-conducting silicone paste close to the shell of the auxiliary copper heat dissipation, heat dissipation area increased exponentially, to ensure the product full power high-performance operation
12. Size: 84x65x25mm
13. Weight: about 85g
Specification:
Package Weight
One Package Weight 0.10kgs / 0.22lb
One Package Size 11cm * 9cm * 5cm / 4.33inch * 3.54inch * 1.97inch
Qty per Carton 296
Carton Weight 30.00kgs / 66.14lb
Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
Loading Container 20GP: 177 cartons * 296 pcs = 52392 pcs
40HQ: 412 cartons * 296 pcs = 121952 pcs
